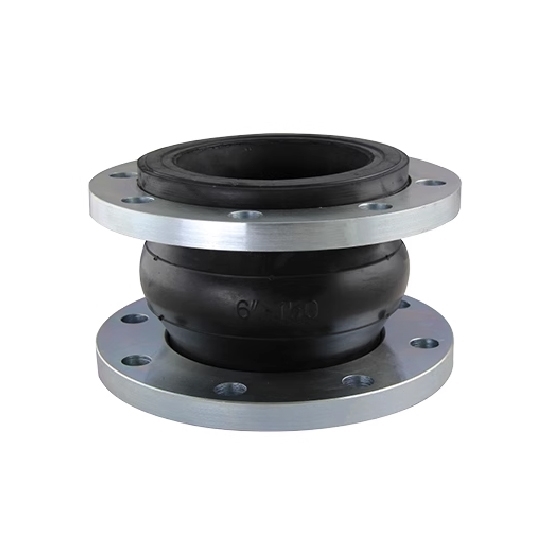

Single sphere rubber expansion joint manufacturer direct sale. 2 inch/3 inch/4 inch/6 inch flexible rubber expansion joint comes with PN16 working pressure, carbon steel galvanized flange material, optional NR, EPDM, or Neoprene rubber material, designed for cold water, hot water, compressed air, natural gas, etc.
Features
- The single-sphere flanged rubber expansion joint is compact in size and lightweight, featuring good elasticity and facilitating easy installation and maintenance. It can reduce the structure-transmitted noise during operation and has a strong shock absorption ability.
- It can produce lateral, axial and angular displacement during installation, and is not restricted by the pipe's non-concentricity and the flange's non-parallelism.
- High-pressure rubber joints can more effectively prevent corrosion in high-temperature, acid-alkali and oil-resistant pipelines, and the medium's erosion of the rubber joint increases its service life.
- 2 inch/3 inch/4 inch/6 inch flexible rubber joints are available, with good comprehensive performance, and are widely used in various industries and pipeline matching.
Specifications
Model |
ATO-KXT-16 |
Working Pressure (MPa) |
PN16, Contact us if you need PN10/PN25. |
Burst Pressure (MPa) |
3.0 (30) |
Kpa Vacuum |
86.7 (650) |
Flange Diameter |
DN40-DN300, Contact us if you need a 150LB flange. |
Flange Material |
Carbon Steel Galvanized (Default), Stainless Steel 304/316L or Other Materials (Contact Us) |
Rubber Material |
NR (Default), Nitrile, Neoprene, EPDM, and Other Materials (Contact Us) |
Applicable Temperature |
-20℃~+115℃ (-30℃~+250℃ Under Special Conditions) |
Applicable Medium |
Air, Compressed Air, Water, Sea Water, Oil, Acid, Alkali, etc. |
Dimension (Unit: mm)

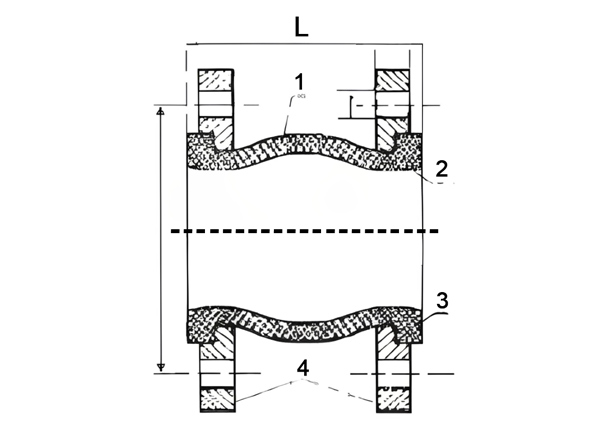

Diagrammatic Drawing: 1-Body, 2-Lining, 3-Frame, 4-Flange. This Flange Is a Grooved Flange.
Nominal Diameter |
Length |
Axial Displacement |
Horizontal isplacement |
Angular Deflection |
mm |
inch |
mm |
Extension |
Compression |
mm |
(a1+a2) |
40 |
1.5 |
95 |
6 |
10 |
9 |
15 |
50 |
2 |
105 |
7 |
10 |
10 |
15 |
65 |
2.5 |
115 |
7 |
13 |
11 |
15 |
80 |
3 |
135 |
8 |
15 |
12 |
15 |
100 |
4 |
150 |
10 |
19 |
13 |
15 |
150 |
6 |
180 |
12 |
20 |
14 |
15 |
200 |
8 |
210 |
16 |
25 |
22 |
15 |
250 |
10 |
230 |
16 |
25 |
22 |
15 |
300 |
12 |
245 |
16 |
25 |
22 |
15 |
Applications

Tips: What is a rubber joint?
Rubber joint (also called a rubber expansion joint) is a flexible connector made of rubber, used in piping systems to absorb movement, vibration, and noise. It helps compensate for thermal expansion and misalignment, protecting equipment such as pumps and valves. Rubber joints are commonly used in water, HVAC, chemical, and industrial systems.
