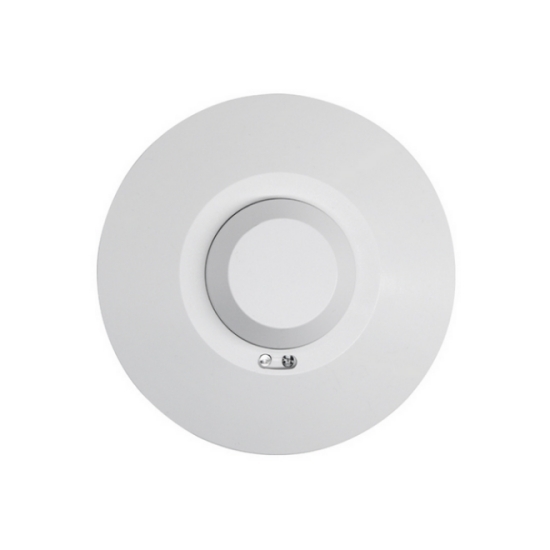

Smart Human Presence Sensor for Home Detection, 12-24V

Utilizing high-performance 5.8GHz microwave radar technology, it achieves precise human detection within 2–10 meters. Supports three adjustable settings for distance, delay time, and light sensitivity, adapting to diverse scenarios. The PC flame-retardant housing ensures reliable operation across a wide temperature range of -35°C to +80°C. Designed for flush mounting with 360° full-coverage detection, it enables intelligent energy-saving control.

Specification

Features

1. High-precision microwave sensing: 5.8GHz radar delivers long-range detection with strong anti-interference performance and minimal temperature influence.
2. Multiple adjustable settings: Detection range (2–10m), delay time (5s–5min), and photocontrol (10–500Lux) can be independently tuned to match various environments.
3. 360° full-area coverage: Ceiling-mounted design enables omnidirectional monitoring, ideal for corridors, hallways, entryways, and wide indoor spaces.
4. Weak-current dry-contact output: Ensures broader compatibility with lighting systems and smart home controllers.
5. Durable construction: PC flame-retardant housing and a wide operating temperature range (-35°C to +80°C) support long-term, stable performance.

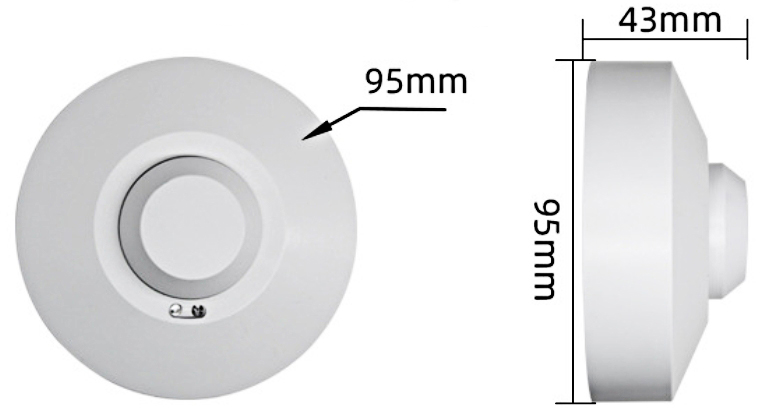

Dimension

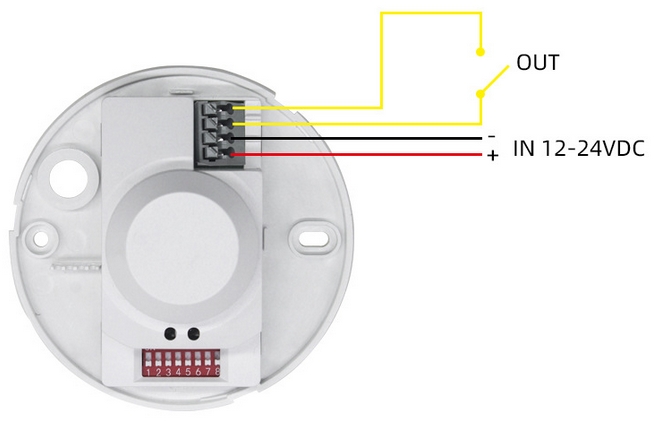

Wiring Diagram

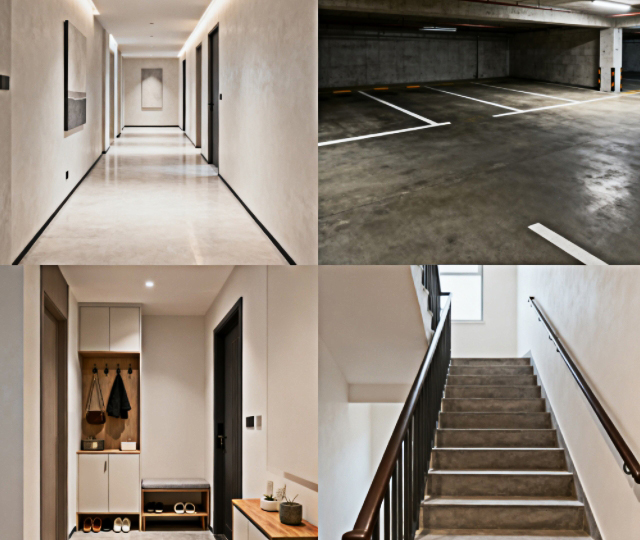

Application

ATO human presence sensor offers broad application coverage, suitable for corridors, parking areas, entryways, stairwells, and other indoor spaces.

Tips: Why does a microwave presence sensor stay stable in varied environments?

A microwave presence sensor analyzes Doppler shifts caused by micro-movements—such as slight body motion or airflow disturbance—allowing it to penetrate non-metal materials and remain unaffected by ambient temperature, dust, or light conditions. Its low-power radar pulses continuously assess reflected signals, filtering noise through frequency discrimination to maintain consistent sensitivity across different room layouts. This ensures reliable activation in hallways, stairwells, and entry areas. With its adjustable range and Lux settings, this model provides precise control for smart-lighting scenarios while delivering stable performance in diverse installations.
