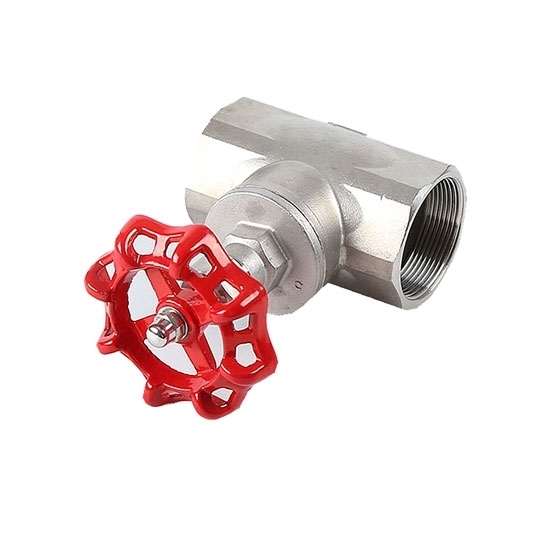

Stainless Steel Globe Valve, NPT, SS304/316

Write a review

$35.39

Inexpensive stainless steel full globe ball valve, 304/316 stainless steel handle, NPT threads, use for water, oil, air and some corrosive liquids, manufacturer direct sale.

Material *
Port Size *
Thread Type *

SKU: ATOWB-50

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Proposition 65 Warning

Note: This globe valve cannot be used for drinking water.

Stainless Steel Globe Valve Features

Stainless steel full port globe valve.
Female National Pipe Taper (NPT) threads for use with male threaded pipes.
High temp silicone seals.
Full port, low operation torque, 304/316 stainless steel handle.
-20℃-+232℃, use for water, oil, air and some corrosive liquids.

Stainless Steel Globe Valve Specifications

Model	ATOWB-50
Thread standard	NPT, BSPT, DIN259, DIN2999, ISO228, CLASS A
Max pressure	1.6MPa
Temperature range	-20℃-+232℃
Suitable medium	water, oil, air and some corrosive liquids
200PSI (PN16) W.O.G
Material standard	S45C/ASTM A216Gr-WCB/DIN1.00619
	SS316/ASTM A351Gr-CF8M/DIN1.4408
	SS304/ASTM A351Gr-CF8/DIN1.4308

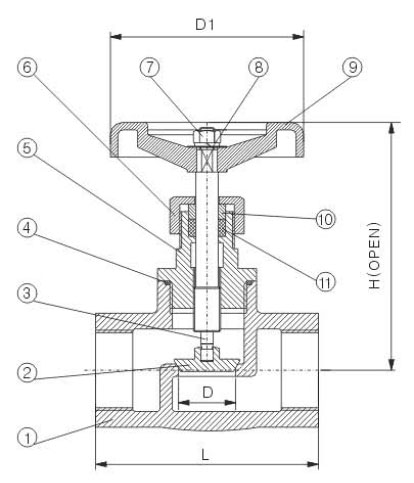

Stainless Steel Globe Valve Main Parts and Materials

stainless steel parts

1	Body	304/316
2	Petal	304/316
3	Stem	304/316
4	Gasket	PTFE
5	Cap	304/316
6	Washer	304/316
7	Nut	304
8	Ring	304
9	Handwheel	ALUMINUMALLOY
10	Gland Ring	304
11	Stem Packing	PTFE

Stainless Steel Globe Valve Main Outer Size

NPS (")	DN (mm)	L (mm)	H (mm)	D1 (mm)	Weight(kg)
1/2"	15	66	100	70	0.233
3/4"	20	80	106	70	0.37
1"	25	90	118	80	0.69
1 1/4"	32	105	134	80	0.79
1 1/2"	40	120	152	100	1.12
2"	50	141	172	100	1.84

*WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
