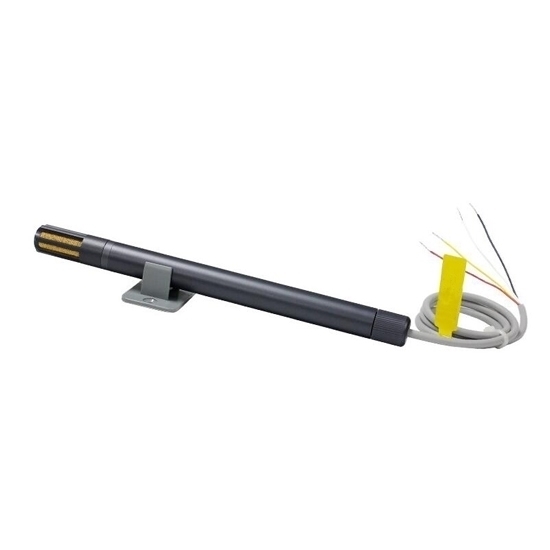

Temp and Humidity Sensor/Transmitter, Duct/Wall Mounted, 0-10V

5 out of 5 based on 1 reviews | Write a review
$69.83
Temperature and humidity transmitter adopts a digital temperature and humidity sensor, and converts air temperature and humidity into 0-10V standard signal. Industrial temperature and humidity transmitter has explosion-proof aluminum alloy housing, metal filter screen, wide measuring range, high measurement accuracy in high-low temperature and humidity, fast response, excellent long-term stability and anti-chemical pollution.
SKU: ATO-TAHT-FG6010
30-day Returns
Free Shipping
Delivery date: 6-12 days

Temperature and humidity transmitter has built-in digital temperature humidity sensor, 0-10V analog output.

Application: Temperature and humidity transmitter is widely used in electronics, pharmaceuticals, food, storage, tobacco, textiles, weather and other industries.
Specification:

Model ATO-FG6010A
Weight 39.0g
Dimension Ф15.7, length 200mm
Output signal 0-10V/0-5V
Supply voltage DC 12-36V
Measuring range of relative humidity 0~99.9%RH
Measuring range of temperature -40~+120℃
Accuracy of humidity ±3%RH (25℃)
Accuracy of temperature ±0.5℃
Resolution 0.1℃/0.1%RH
Long-term stability <0.5%RH/year
Current consumption <10mA
Response time (90%) static air 8s
Power-on time 3s
Housing material Aluminum alloy
Working environment Temperature: -40~120℃, humidity: 0~99.9% no condensation
Storage environment Temperature: 0~60℃, humidity: <90%RH
Product packing list 1*ATO-TAHT-FG6010 with 3m four-core shield wire, 1*flange (duct mounted), 1*flange (wall mounted), 2*mounting screw
Wiring Red: V+, black: GND, yellow: RH (humidity output 0-10V), white: T (temperature output 0-10V)

Dimensional drawing (unit: mm):
Temperature and humidity transmitter FG6010 dimensional drawing
Pin assignment:
Temperature and humidity transmitter FG6010 pin assignment

Temperature measurement range setting

Temperature Measurement Range Setting

P1:0-50 degrees centigrade
P2:-20~80 degrees centigrade
P3:-40~60 degrees centigrade
P4:-40~120 degrees centigrade
Note : please switch off the transmitter power before you select the dial switch for the measuring range.

Details

Temperature and Humidity Sensor Details

Tips: How to choose the measuring range and accuracy of temperature and humidity sensors?
Different working environments have different requirements for humidity, and the measuring range shall be determined firstly when selecting a temperature and humidity sensor. Generally, humidity measurement doesn't need a full range of 0-100%RH. Moreover, the purposes of most measurements are for automatic control, the measuring range and control range shall be selected by site requirements. The measuring range can be presented to ATO according to the needs, especially the error requirements of the commonly used humidity section. In this way, it is equivalent to improving the measurement accuracy.
Measuring accuracy is an important indicator of the temperature and humidity sensor, different accuracy leads to different manufacturing cost, and the selling price is thereof different. So when choosing a temperature and humidity sensor/transmitter, please refer to the actual situation or contact ATO customer service.


Existing reviews of Temp and Humidity Sensor/Transmitter, Duct/Wall Mounted, 0-10V
Humidity sensor deviation
Ok, so because of the harsh environment (inside a freeze dryer, no atmospheric pressure), the impact on the equipment will be relatively large so you cannot provide accurate deviation.
But under normal circumstances, the deviation should be ±4% to ±5% when the humidity is between 0-20%.
Is that correct?
From: reut | Date: 21/07/2023
Was this review helpful? Yes No (0/0)
ATO Responded
If you're testing in a lab, No problem. But your on-site environment is harsh, which will lead to biased readings.
If you have high precision requirements, we do not recommend you use our products.
The state you mentioned (inside a freeze dryer, with no atmospheric pressure) has a greater impact on humidity measurement.
