    Handheld Thermal Imaging Camera

    $470.95
    Handheld Thermal Imaging Camera or Infrared camera is easy to operate, temperature measurement up to 300°C (572°F), infrared resolution 60x60 or 220x160 at favorable price, with the function of adjustable emissivity coefficient, selectable color palette etc. to increase its accuracy and usability.
    SKU: ATO-HT-02/18
    *

    Handheld Thermal Imaging Camera or IR camera with resolution 60x60 or 220x160 at low cost is easy to use and can be used to conduct a test after several seconds, an ideal option for electrician and maintennance technicians to find the problem quickly.

    Specifications

    Model HT-02 HT-18
    Display 2.4 inch color screen 3.2 inch color display screen
    IR Resolution 60x60 (3600 pixels) 220x160
    Visible Image Resolution 0.3 mega pixels 0.3 million pixels
    Field of View (FOV) 20°x20° 27°x35°
    Minimum Focus Distance 0.5m 0.5m
    Thermal Sensitivity 0.15°C 0.07°C
    Temperature Measurement Range -20°C~300°C (-4F°~572°F) -20°C~300°C (-4F°~572°F)
    Accuracy ±2% or ±2°C (±2% or ±4°F) ±2.5℃ or ±2.5%
    Emissivity Adjustable from 0.1 to 1.0 Adjustable from 0.1 to 10.0
    Image Capturing Frequency 6Hz 8Hz
    Wave Length Range 8~14μm 8~14μm
    Focus Mode Fixed Fixed
    Color Palette Iron red, rainbow, gray scale (white glow) and gray scale (black glow) Rainbow, iron oxide red, cold color, black and white
    Image Storage SD card (4G) SD card (4G)
    File Format bmp jpg
    Power Supply 4 * AA battery (Not included) Built-in chargeable 18650 batteries
    USB N/A Micro USB2.0
    Auto Power-off Time 12 mins Selectable: 5 mins/20 mins/not power off automatically
    Operating Temperature -5°C ~ 40°C (23℉ to 104℉) 0C ~ +50°C
    Storage Temperature -20°C ~ 50°C (-4℉ to 122℉) -40°C ~ +80°C
    Relative Humidity 10% ~ 80%RH <85% RH
    Dimensions 212x95x62mm 90x105x223mm
    Weight 320g 389g

    Infrared Camera Constitutions

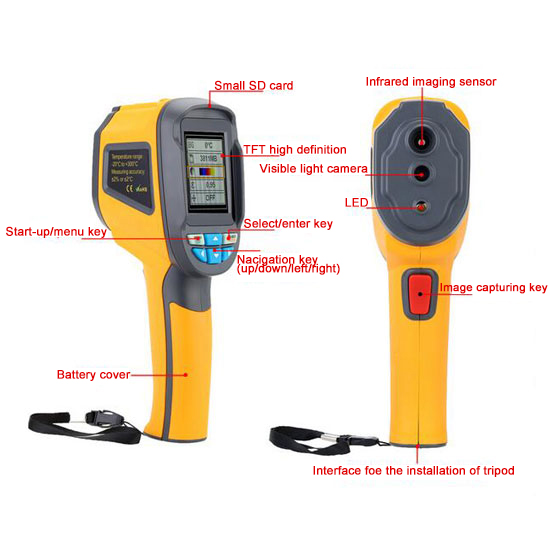

    1. HT-02 thermal imaging camera
    HT-02 thermal imaging camera constitution

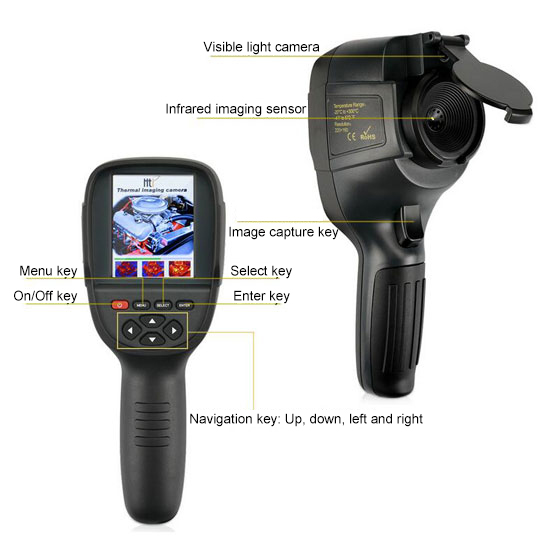

    2. HT-18 thermal imaging camera
    HT-18 thermal imaging camera infrared camera constitution
    Tips: Advantages of thermal imaging camera

    Thermal imaging camera is to use an infrared detector and an optical imaging objective lens to receive and reflect the infrared radiation energy distribution of the target to the photosensitive element of the infrared detector, so as to obtain an infrared thermal image. The image is corresponding to the thermal distribution on the surface of the target object. Briefly speaking, thermal imaging camera is to convert the invisible infrared energy emitted by an object into a visible thermal image. The different colors on the thermal image represent the different temperatures of the measured object.
    It is mainly used in R&D or industrial inspection and equipment maintenance, and also widely applied in fire protection, night vision and security. The thermal imager has the following advantages:

    • No need to touch the test target
    • Keep users away from danger
    • Does not intrude or affect the target
    • Generate heat distribution images quickly
    • Can compare the temperature of different areas of the object
    • Can observe the overall goal via the image
    • Make heat distribution visible and do the analysis later
    • Real-time response
    • High-speed moving object capture
    • High-frequency temperature change image capture
