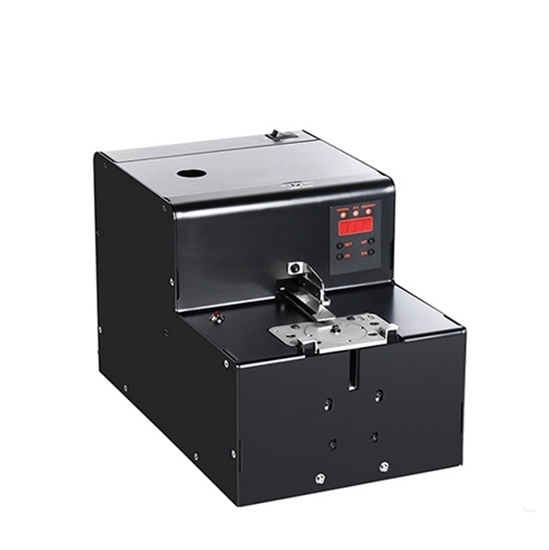

    Turntable Auto Screw Feeder M2.0-M6.0

    Turntable auto screw feeder with screw capacity 600 (CC) for sale, input AC 100-240V (50/60HZ) and output DC 12V/2.0A. The screw feeder total length of the screw≤30mm, the thickness of the screw head≥0.2mm. Automatic screw feeder with applicable screw specifications M2.0, M2.3, M2.6, M3.0, M3.5, M4.0, M5.0, M6.0. Widely apply in crushed material transport and metered distribution.
    SKU: ATO-RJ2
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Automatic screw feeder power supply input AC 100-240V (50/60HZ) and output DC 12V/2.0A, applicable screw specifications M2.0, M2.3, M2.6, M3.0, M3.5, M4.0, M5.0, M6.0. Turntable screw feeder with large silo is easy to use, high precision and strong stability.


    Model ATO-ASF-RJ2
    Shell Material Black baking varnish
    Applicable Screws Spec. M2.0, M2.3, M2.6, M3.0, M3.5, M4.0, M5.0, M6.0
    Applicable Screw Thread Length ≤30mm
    Applicable Screw Head Thickness ≥0.2mm
    Screw Capacity 600cc
    Input AC 100-240V (50/60Hz)
    Output 12V/2.0A
    Weight 5kg


    1. Shell material of the automatic screw feeder is black baking varnish, compact structure, cross-feeding mechanism, and precise positioning point.
    2. Screw discharging is smooth, fast speed, high precision, and strong stability, and it is not easy to slipping, stucking, bonding, etc.
    3. Vibration, drum and turntable of the automatic screw feeder are driven by brushless motors. Digitalization control, can perform efficient function setting operation on drum motor, turntable motor and vibration motor. Individual counting function and total counting function.
    4. The track adopts full-line cutting precision processing, track gap is uniform and flat, overall tolerance is small. Storage bin volume is larger, save time on manual filling.

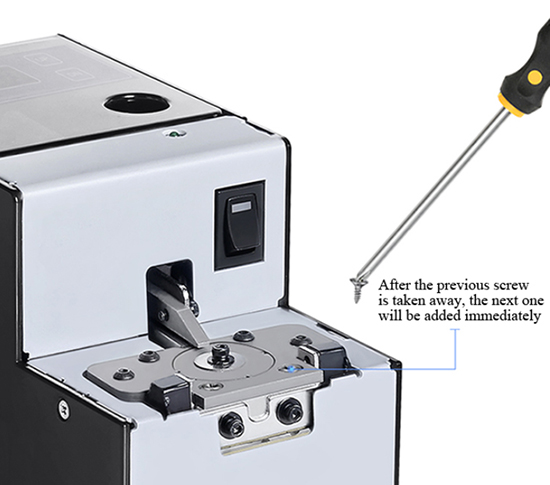

    Turntable auto screw feeder working

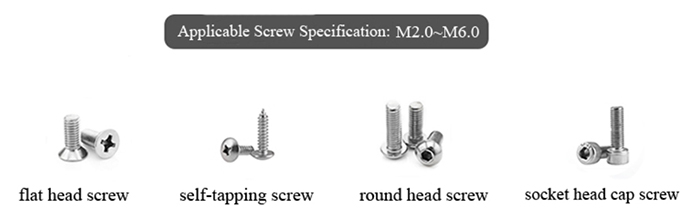

    Turntable screw feeder applicable screws

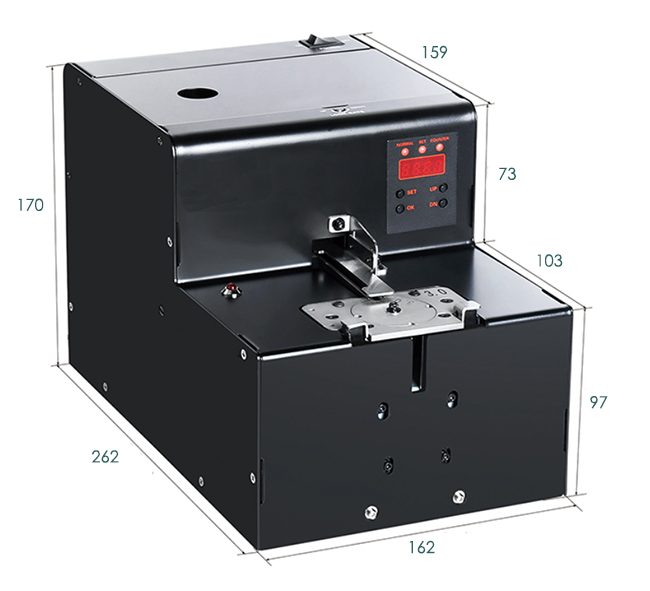

    Turntable Automatic Screw Feeder Dimension Drawing (MM)

    Turntable auto screw feeder size

    Tips: What is the function of automatic screw machine?

    1. It can automatically arrange screws, automatically supply screws, and automatically supply empty materials, which is several times faster than traditional manual operations.
    2. When working, there is little noise.
    3. The appearance is small and beautiful, but the conveying distance is as long as 3-4 meters. At the same time, the equipment can be placed on the stage or under the stage, and can be placed flexibly according to the enterprise environment.
    4. The feeder is equipped with a counting display to count the total amount of work.
    5. It can be equipped with alarm function.
