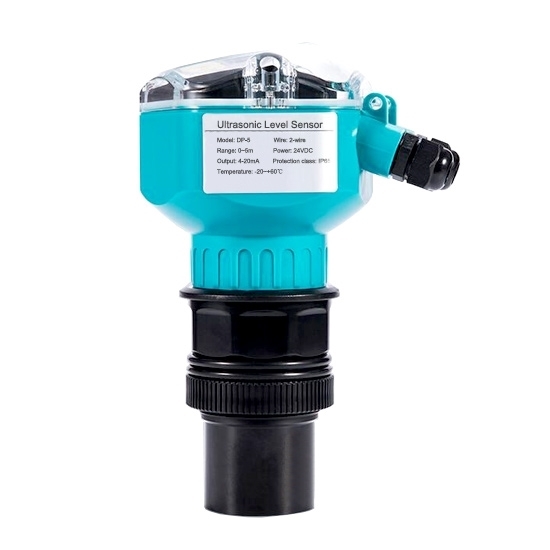

Ultrasonic Level Sensor for Water/Fuel/Oil/Powder, 0-60M

5 out of 5 based on 3 reviews | Write a review
$423.28
Ultrasonic level sensor has integrated structure and mainly consists of LCD display, ultrasonic probe and waterproof connector. Ultrasonic liquid level sensor features an LCD display with IP65 protection and an ultrasonic probe with IP68 protection, suitable for various industrial and outdoor applications. The measuring range can be from 0-5m, 0-10m, 0-15m, 0-20m to 0-60m. The output signal can be 4-20mA or RS485/232. Ultrasonic level sensor also has optional power supply DC 24V or AC 220/50Hz.
*
*
*
*
*
*
SKU: ATO-LEVS-U60M
30-day Returns
Free Shipping
Delivery date: 6-12 days

Ultrasonic level sensor can be used for non-contact level measurement of various medium, such as liquid (water/fuel/oil), solid (metal or nonmetal), or powder (chemical materials), etc. The level sensor has maximum measuring range 0-60m, can transmit and output 4-20mA or RS485/232 signal to remote control system.

Specification

Model ATO-LEVS-DP
Shipping weight 2.5kg
Measuring range * 0-5m, 0-10m, 0-15m, 0-20m, 0-30m, 0-40m, 0-50m, 0-60m
Accuracy 0.5%FS
Resolution 3mm, or 0.1% (choose the higher value)
Display LCD display
Output signal * 2-wire 4-20mA, 4-wire 4-20mA, RS485/232
Additional relay output * 2 relays AC 250V/8A, 2 relays DC 30V/5A
Power supply * DC 24V, AC 220V±15% / 50Hz
Load 2-wire 4-20mA/250Ω, 4-wire 4-20mA/750Ω
Response time 500ms
Communication protocol Our own protocol
Medium Water, fuel, oil, metal, or other liquid/solid/powder
Environment temperature LCD display: -20~+60℃ (-4~+140℉), ultrasonic probe: -20~+80℃ (-4~+176℉)
Working pressure 14.7 psi
Protection class LCD display: IP65, ultrasonic probe: IP68
Electrical connection 2 waterproof connector M18*1.5mm
Installation* Nut with thread M48*2mm, M60*2mm, M78*2mm or M108*2mm (according to the measuring range and ultrasonic probe)
Probe type * General probe, probe with PTFE shell, probe with small measuring blind zone
Algorithm a. Algorithm of variable frequency
Three adjustable emission frequency (low, medium and high) can meet the level measurements of different situations, such as sewage liquid level, acid and alkali liquid level, material level, etc. It can reduce the interference caused by the bubbles when mixing.
b. Filtering algorithm (remove false echoes)
The liquid level intelligent algorithm design effectively eliminates false echoes in actual measurement, improves signal-to-noise ratio, and guarantees actual liquid level measuring accuracy.
Function Real-time monitoring and display 4 parameters: level (m), distance (m), current (mA) and temperature (℃).
Warranty 12 months

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Dimension (unit: mm)
Ultrasonic level sensor for water/fuel/oil/powder 0-60m dimension

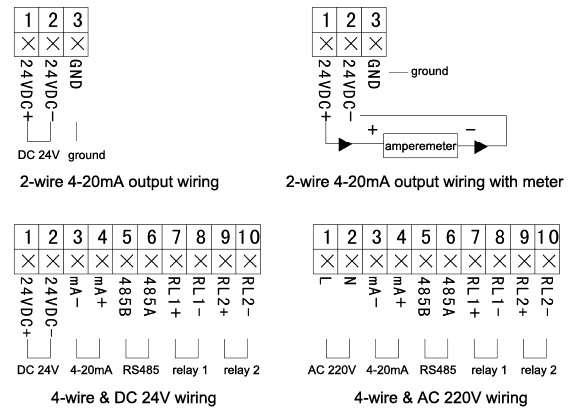

Wiring

Ultrasonic level sensor for water/fuel/oil/powder 0-60m wiring diagram

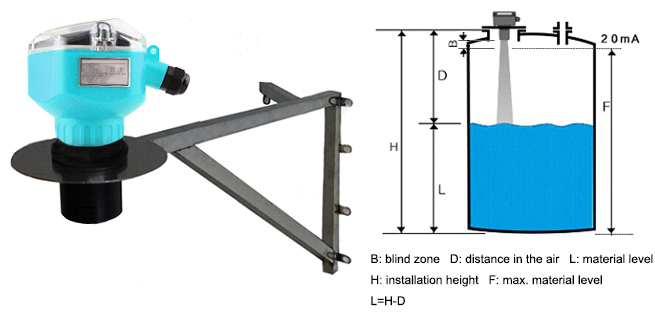

Installation diagram
Ultrasonic level sensor for water/fuel/oil/powder 0-60m installation diagram

Details

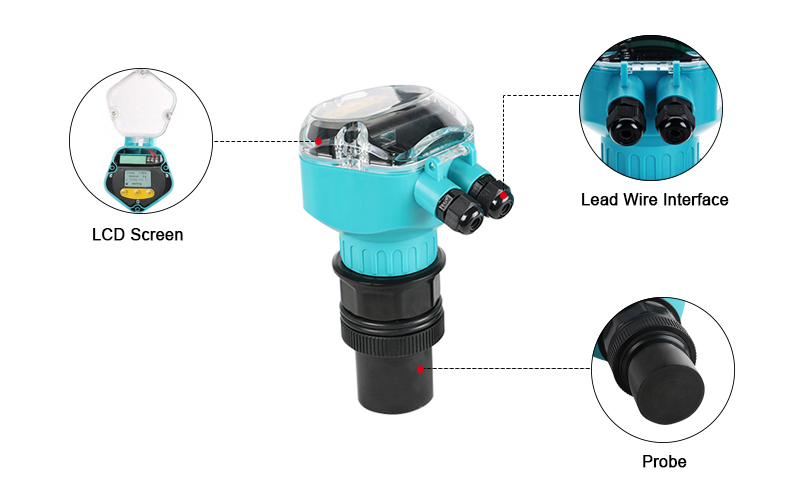

Ultrasonic Level Sensor Details

Tips: What is ultrasonic level sensor?

The ultrasonic level sensor uses the time difference between the transmission and reception of sound waves and the propagation speed of sound waves to calculate the liquid level. The ultrasonic level sensor using non-contact measurement technology can be stably and reliably applied to continuous liquid level measurement in various open liquid/solid/powder tanks. Ultrasonic liquid level sensor is a very ideal measurement tool for corrosive, layered or acid-base wastewater. The media that can be measured by the ultrasonic level transmitter include industrial agents such as hydrochloric acid, sulfuric acid, hydroxide, waste water, resin, paraffin, mud, lye and bleach. It is often used in conjunction with other industrial equipment such as pressure transmitters and flow meters, and is an important part of automated process control systems.
ATO ultrasonic level sensor has the following characteristics:

  1. Simple structure, convenient reading, convenient installation and maintenance, high cost performance, low maintenance cost.
  2. The use of corrosion-resistant materials, safe and clean, long life, high precision, stable and reliable.
  3. Non-contact measurement is less affected by the viscosity and density of the liquid.
  4. There are various ranges to choose from (0.5m~60m range), which can be applied in different industrial environments.
  5. It has an RS-485 communication interface and adopts a special echo processing method to effectively avoid false echoes.
Existing reviews of Ultrasonic Level Sensor for Water/Fuel/Oil/Powder, 0-60M
I have a question
I want to know if you can supply 120AC of the ATO-LEVS-U60M.
From: Brenner | Date: 25/02/2025
Was this review helpful? Yes No (0/0)
ATO Responded
Unfortunately, the operating voltage supported by this unit is only DC 24V, or AC 220V±15% / 50Hz, and there is No 120VAC option.
Good ultrasonic level sensor
Can you please contact me regarding the level sensor model -ATO-LEVS-DP. Is this rated for -14.7psi working pressure?
From: Ailsa | Date: 30/05/2022
Was this review helpful? Yes No (0/0)
ATO Responded
Yes, for the level sensor model - ATO-LEVS-DP, 14.7psi is working pressure, also atmospheric ambient pressure.
0-60M ultrasonic liquid level sensor works well
I decided to buy the 0-60M ultrasonic level sensor given that there is a lot of water shortage in our area. The municipal water supply is very intermittent and we depend on the storage tank. With this system, I don't have to constantly check the water level in our tank. So far, it has worked well. The signal range is better than I expected. The measurement is very accurate.
From: Melanies | Date: 22/08/2021
Was this review helpful? Yes No (0/0)
