Universal Label Sensor for Transparent/PVC/Paper

ATO label sensor, relying on dual detection principles of photoelectric and capacitive technologies, can accurately identify various types of labels. It features a 5kHz switching frequency and an ultra-fast response time of 0.1ms, is equipped with NPN/PNP dual outputs, and supports sensitivity adjustment via buttons. With an IP66 protection rating and a durable metal housing, universal label sensor is an efficient and reliable preferred device for industrial label detection scenarios.

Specification

Features

• Multi-type label detection: Universal label sensor supports detection of various labels such as transparent, opaque, and metal (gold/silver stamping) labels, with wide application scenarios.
• Dual-principle integration: Adopts photoelectric & capacitive detection principles, featuring high detection accuracy with a positioning precision of up to ±0.2mm.
• Fast response performance: With a switching frequency of 5kHz and a response time of only 0.1ms, label detection sensor meets the detection requirements of high-speed production lines.
• Flexible output: Equipped with NPN+PNP dual outputs, compatible with different industrial control systems, ensuring strong compatibility.
• Reliable protection design: Metal shell with IP66 protection rating, featuring reverse polarity protection and output short-circuit protection, suitable for complex industrial environments.
• Intuitive display and installation: 2-digit nixie tube for status display, equipped with M8/M5 mounting holes and M8 4PIN connector, facilitating easy installation and debugging.

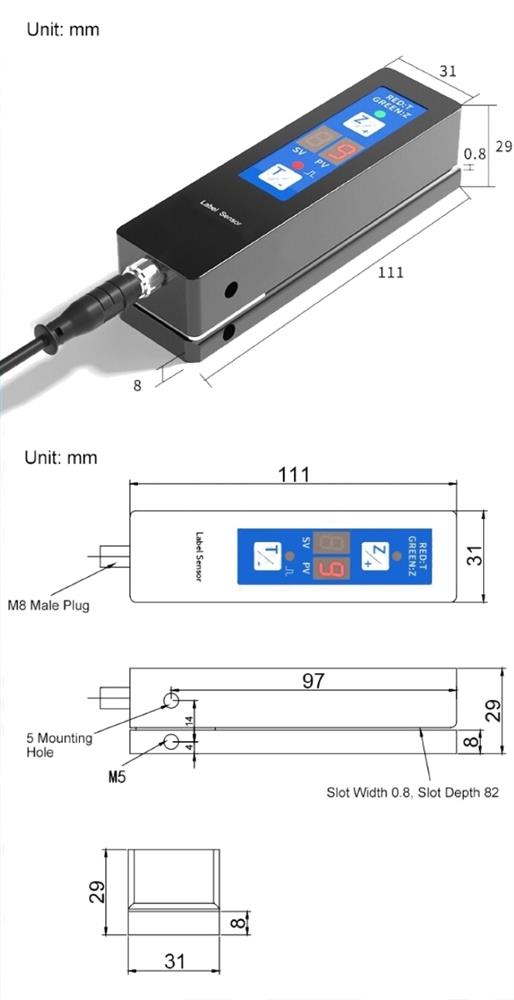

Dimension

Detail

Tips: How to Operate Laber Detection Sensor?

Understanding some common operating methods can make you more efficient when using label detection sensor. Here are some tips from the ATO Online Shop for you.

1. Setting of Normally Open: Long press the T/- key for 12-15 seconds, release when NO is displayed, label sensor switches to normally open output.
2. Setting of Normally Closed: Long press the Z/+ key for 12-15 seconds, release when NC is displayed, label sensor switches to normally closed output.
3. Label Detection: Move the central part of the label to the "SENSING AREA" of the sensor. Press the corresponding function key for 3-5 seconds according to the label type, then release it. After the display area lights up, release the key. At this time, drag the label paper back and forth (3-5 sheets), then short-press the corresponding key for 1 second and release it. The setting is completed.
