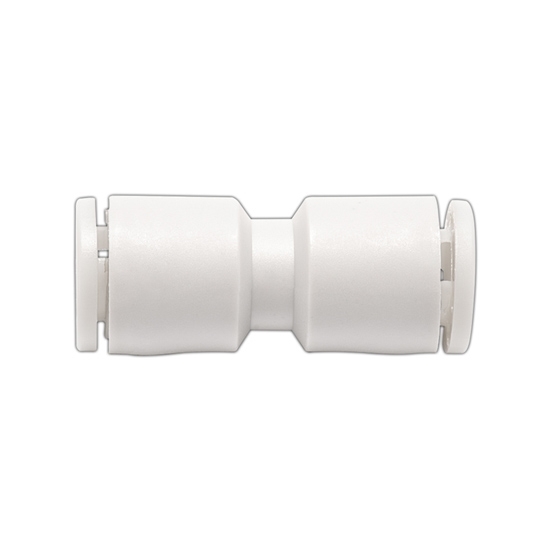

Water Hose Quick Connector, Intubation Type

5 out of 5 based on 5 reviews | Write a review

$3.21

Cheap water hose quick connector for sale online. The intubation type with the high-quality plastic shell is designed for water and air. Quick connect fitting has 03/04/06/23mm input cannula diameters for choice. It can be connected to the hose quickly without leakage. Quick-release coupling is suitable for various watering devices such as nozzle, sprayers, sprinklers, etc.

Input Cannula Diameter *
Output Cannula/Thread Diameter (03) *
Output Cannula/Thread Diameter (04) *
Output Cannula/Thread Diameter (06) *
Output Cannula/Thread Diameter (23) *

SKU: ATO-QC-I01

This product has a minimum quantity of 50

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Quick Connector Dimensions

High-quality water hose quick connector is a garden hose quick connect. It is intubation type and has 03/04/06/23mm input cannula diameters. Faster connectors are quick and easy to connect and disconnect. Quick connect is perfect for garden hoses, watering equipment for pressure washers, RVs, campers, faucets, lawn sprinklers, spigots, taps and other garden accessories.

Specifications

Model	ATO-KJH
Fluid	Air/Water
Material	Brass
Maximum operating pressure	1.0MPa
Operating vacuum pressure	-100kPa
Proof pressure	3.0MPa
Ambient and fluid temperature	Air:-5~60°C, Water:0~40°C
Tubing material	Nylon, Soft nylon, Polyurethane
Tubing O.D.	Φ3, Φ3.2, Φ4, Φ6

Quick Connector Details

Applicable tubing O.D (mm)		Model	Weight (g)
①	②	Model	Weight (g)
Ø3		ATO-KJH03-00	1.4
Ø3.2		ATO-KJH23-00	1.4
Ø4		ATO-KJH04-00	1.7
Ø6		ATO-KJH06-00	2.5
Ø3	Ø4	ATO-KJH03-04	1.6
Ø3.2	Ø4	ATO-KJH23-04	1.6
Ø4	Ø6	ATO-KJH04-06	2.2

Tips: Quick connector functions

Exchange function: pneumatic pressure, hydraulic tools, cylinders, hydraulic cylinders, metal mold-related machinery appurtenances.
Maintenance function: cooling device of a computer, cylinder of die-casting machine maintenance and repair.
Testing function: testing of vacuum, pressure resistance, leakage, operation, etc.
Conveying function: conveying and handling of bolts, nuts and other solids as well as conducting function.
Filling function: inert gas, nitrogen, PG, carbonic acid.
Connection function: fixed parts of fishing rods and pocket laser records, connection for mobile work and uses other than fluid transfer.
