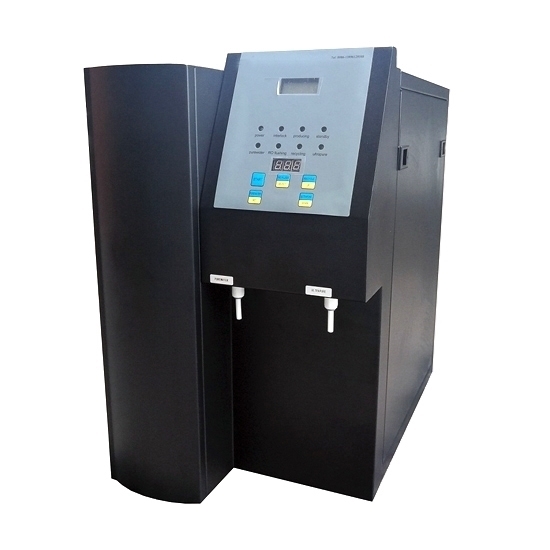

    RO Water Purification System, <10ppb TOC, Type 1 & 3

    $3,723.66
    Cost effective lab water purification system, pretreatment, reverse osmosis modules, deionization cartridges, storage tanks, UV sterilizers are integrated into one system, less than 10 parts per billion total organic carbon (TOC), highest quality to meet various laboratory applications.
    SKU: ATO-Moelement810
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Laboratory RO water deionizer filter, feeding water can be tap water, distilled water, municipal water, well water, river water. Suitable for sample pretreatment, conventional physical and chemical analysis, toxicity test, quantitative analysis of trace element and other experimental projects.

    Specification

    Model Moelement810s/ 820s/ 830s Moelement810d/ 820d/ 830d
    Process Single pass RO system Double pass RO system
    Output of pure water ≥10L/H ≥10L/H
    Output of ultrapure water ≥ 1-1.5L/min ≥ 1-1.5L/min
    Resistivity at 25℃ 18.25MΩ.cm 18.25MΩ.cm
    Conductivity at 25℃ (Type 3 water) ≤10μs/cm ≤5μs/cm
    TOC < 10ppb < 10ppb
    Pyrogens/endotoxins < 0.025EU/ml < 0.025EU/ml
    Bacteria < 1cfu/ml < 1cfu/ml
    Particles (> 0.22μm) < 1/ml < 1/ml
    Absorbance (254nm,1cm optical distance) ≤ 0.001 ≤ 0.001
    Reactive Silica (SiO2) < 0.01ppm < 0.01ppm
    Heavy metal < 0.01ppm < 0.01ppm
    Electrical requirements 220V (230V, 240V) 50Hz
    Power ≥100W ≥150W
    Dimension (L/W/H) 340*550*530mm 340*550*530mm
    Weight ≥32KG ≥41KG
    Tank capacity  30L

    Note: The model end with 's' has single stage RO module, suitable for feed water inlet TDS<200PPM. Model end with 'd' have double stage RO module, suitable for feed water inlet 200ppm<TDS<400ppm. If feed water inlet TDS>400PPM, suggest an additional industrial type softener.

    Product Features
    Power-on self-test, water shortage protection alarm, power-off protection.
    Built-in RO membrane anti-scaling program, RO membrane manual cleaning button.
    IC microcomputer intelligent control, built-in automatic cycle timing of ultrapure water, ultrapure water conservation.
    On-line monitoring of water resistance, real-time display of system operating status and warnings. UV lamp failure alarm.
    Pure water tank with cone type structure,a discharge valve at the bottom, easy to clean and disinfect exhausted.
    Digital display the time of regular intake or conveying water pressure. Can set time of water outlet.

    Lab Test and Corresponding Water Type List

    Test Name Type III Water Type II Water Type I Water
    Lab glassware washing
    Hydroponics
    Sterilizer use water
    Gas generator use water
    Conventional test
    Reagents/ drugs preparation, dilution
    Feed water for ultrapure water
    IC
    LC/LC-MS
    HPLC
    AAS
    ICP/ICP-MS
    GC/GC-MS
    Trace analysis
    TOC analysis
    Organic analysis
    Inorganic analysis
    Environmental analytical test
    Microelectronics parts cleaning
    Precision instrument use water
    Analytical reagent/ drugs preparation, dilution
    Mass spectrometry
    PCR application/analysis
    DNA/RNA research
    Proteomics research
    Plant and animal cell culture
    Toxicity analysis
    Microbiology experiment
    Immunological experiment
    Biochemistry experiment
    Serum test
    IVF

    Main Consumable List (A water purification system is equipped with a set of consumables. If you want to buy some of the following consumables, contact us now.)

    No. Name Specification Lifespan
    1 PP filter 1st stage, 10”/20” (5μm) 3-6 months
    2 Activated Carbon filter 2nd stage, 10”/20” 6-12 months
    3 Softener filter 3rd stage, 10”/20” 6-12 months
    4 Precision filter 4th stage, 10”/20” (1μm) 10-12 months
    5 RO membrane 75g/300g 1-2 years
    6 Ultra purification resin column   1 year
    7 Micro filter 0.22μm 1 year
    8 UV lamp 185/254nm 8000 hours
    9 Pure water tank 30L, 80L, 120L

    Tips: What is ultrapure water?
    Ultrapure water is water that almost completely removes the conductive medium in water, and removes non-dissociable colloidal substances, gases and organic matter to a very low level. Resistivity is greater than 18MΩ.cm@25℃, or close to 18.3MΩ.cm@25℃.
    Ultrapure water is a level that is difficult to achieve by ordinary processes. ATO.com provided lab purification water system adopts four major steps of pretreatment, reverse osmosis technology, ultra-purification treatment and post-stage treatment. Multi-stage filtration, high-performance ion exchange unit, ultrafiltration filter, UV lamp, TOC device and other processing methods are used. The resistivity can reach 18.25MΩ.cm@25℃ to ensure high quality effluent water quality. Products are widely used in universities, scientific research, pharmaceutical factories, power, electronics, medical, disease control, environmental supervision, technical supervision and other key industries.
