G1/2" Hand Lever Valve, 4 Way, 2/3 Position

5 out of 5 based on 2 reviews | Write a review

$75.39

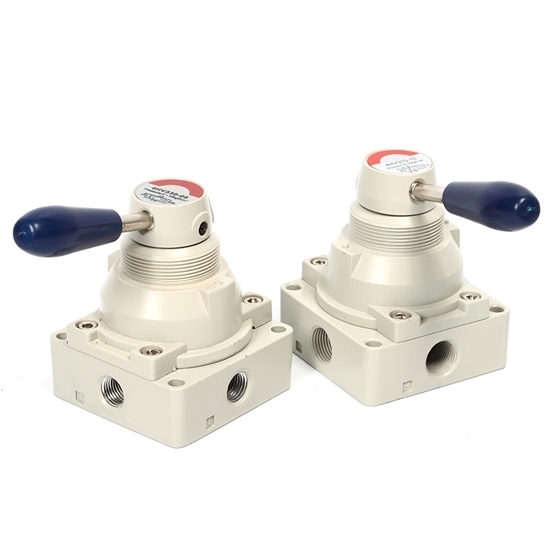

Hand operated lever valve is used to operate pneumatic cylinders, G1/2 inch port size, 4 way 2 position and 3 position for your choices. This manual lever can control the movement of the spool, which allowing the air to pass.

Position *

SKU: ATO-VALVE-12

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Low price hand lever valve is used in air chucks, pneumatic actuators, venturi vacuum generators and other pneumatic equipment which need manual operation.

Specification

Model		ATO-4HV410-15	ATO-4HV430-15
Working Media		Compressed Air
Action Mode		Direct-acting Type
Position		4/2 Port (4 Way, 2 Position)	4/3 Port (4 Way, 3 Position)
Port Size		G1/2
Lubrication		No Need
Working Pressure		1MPa
Proof Pressure		1.5MPa
Working Temperature		0 ~ 60℃
Operation Angle		90°
Material	Body	Aluminum Alloy
	Seal	NBR

Wiring Diagram

4 Way 2 Position

Wiring Diagram of 4 Way 2 Position Air Hand Lever Valve

4 Way 3 Position

Wiring Diagram of 4 Way 3 Position Pneumatic Hand Lever Valve

Dimensions (Unit: mm)

Dimensions of 4 Way 2 Position Air Hand Lever Valve

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	P
ATO-4HV410-15	109	70.5	2	G1/2	17.5	M52*1.5	130	6.5	101.5	89	63.5	3	81	94	160
ATO-4HV430-15	109	70.5	2	G1/2	17.5	M52*1.5	130	6.5	101.5	89	63.5	3	81	94	160

Tips: What is a hand operated lever valve?

Hand operated lever valves use handles and levers to manipulate the valve action by manpower. When the valve opening and closing torque is large, a worm gear or reducer can be installed between the handle and lever. If necessary, universal joints and drive shafts can also be used for long-distance operations.
