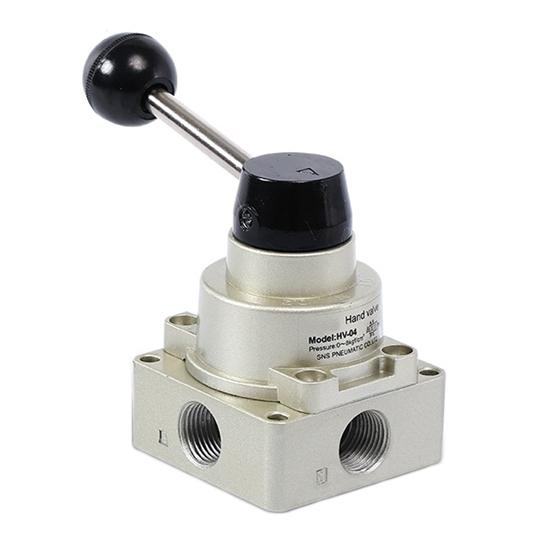

    G3/8" Hand Lever Valve, 4 Way, 2 Position

    5 out of 5 based on 2 reviews | Write a review
    $48.79
    High performance hand operated lever valve for sale online at low price. This manual lever air valve is used to operate pneumatic cylinders and air chucks with G3/8 inch port, direct-acting type, 4 way, 2 position.
    SKU: ATO-VALVE-38
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Economical price 3/8 inch hand operated lever valve is used in air chucks, pneumatic actuators, venturi vacuum generators and other pneumatic equipment which need manual operation.

    Specification

    Model ATO-HV-02 ATO-HV-03 ATO-HV-04
    Working Media Compressed Air
    Action Mode Direct-acting Type
    Position 4/2 Port (4 Way, 2 Position)
    Port Size G1/4 G3/8 G1/2
    Lubrication No Need
    Working Pressure 0 ~ 0.8MPa
    Proof Pressure 1.0MPa
    Working Temperature 0 ~ 60℃
    Material Body Aluminum Alloy
    Seal NBR

    Wiring Diagram

    Wiring Diagram of 4 Way 2 Position Pneumatic Hand Lever Valve

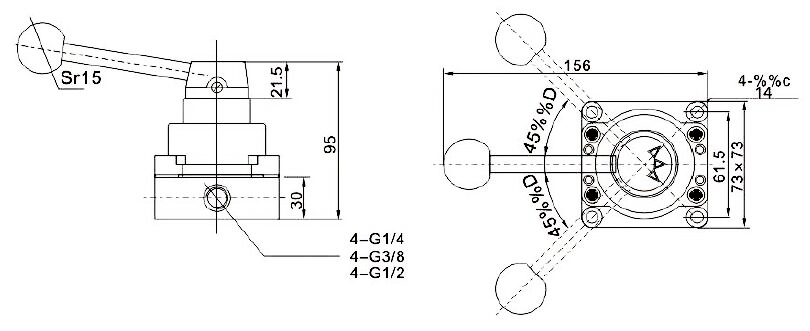

    Dimensions (Unit: mm)

    Dimensions of 4 Way 2 Position Pneumatic Hand Lever Valve

    Tips: Why you need ATO hand lever valve?

    • ATO hand lever valve is simple structure in linear type and easy in installation and maintain.
    • High pressure double crank to control the die opening and closing.
    • Running in a high automatization and intellectualization, no pollution.
    • It Adopts advanced world famous brand components in pneumatic parts, electric parts and operation parts.
    • Apply a linker to connect with the air conveyor, which can directly inline with filling machine.
