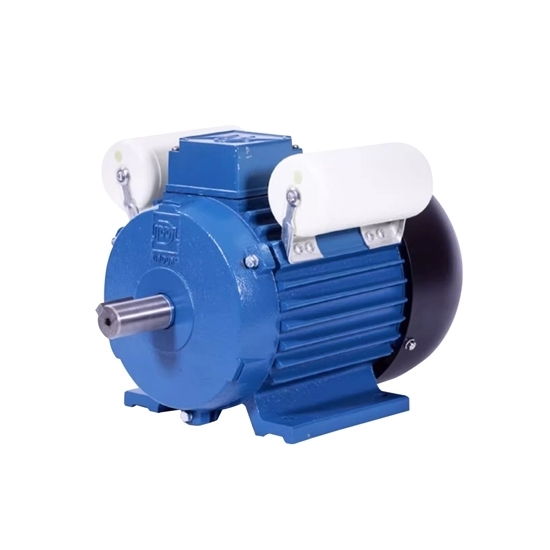

1.5 hp (1.1kW) 220V Single Phase AC Induction Motor

$433.69
Get a 1.5 hp single phase induction motor at low cost. It is an asynchronous motor with two ac capacitors ( start capacitor and run capacitor), works at 50Hz/60Hz. 220V/110V/230V/240V voltage and 1500rpm/3000rpm speed for selection, widely used in drills, air conditioners, compressors, pumps, cranes, garage door opening and closing systems. Start capacitor and run capacitor can provide starting torque to the single phase induction motor.
*
*
SKU: ATO-SPM-1100
30-day Returns
Free Shipping
Delivery date: 20-30 days

Encomical 1.5 hp single phase induction motor for sale online. It is an asynchronous motor with a start capacitor and run capacitor, offers starting torque at rest. It features 1100W power, frequency 50Hz/60Hz, voltage 110V/230V/240V and 1500rpm/3000rpm speed, suitable for drills, air conditioners, compressors, pumps, cranes, garage door opening and closing systems.

Specifications

Model ATO-YL802-2 ATO-YL90S-4
Rated Output 1.1kW (1.5hp)
Efficiency 75% 73%
Power Factor 0.95 COSφ
Rated Speed 2800rpm 1420rpm
Rated Current 6.7A 6.9A
Pole 2 Pole 4 Pole
Voltage 220V AC 50Hz (Default), other customizations can be customized.
Tmax/Tn 1.8 times
Ts/Tn 1.8 times 1.7 times
ls/ln 40 times 40 times


Dimension (Unit: mm)

Single phase motor dimension

Frame Size Mounting Dimension Overall Dimension
A B C D E F G H K AB AC AD AE HD L
80 125 100 50 19 40 6 15.5 80 10 160 165 150 120 200 295
90S 140 100 56 24 50 8 20 90 10 180 185 160 130 240 370


Details

 Single phase induction motor details

Tips: The power supply of single phase induction motor works normally, but the motor cannot be started after power is on. Possible causes are:

  • Motor lead open circuit.
  • Open-circuit of main winding or auxiliary winding.
  • The centrifugal switch contact of single phase induction motor cannot be closed.
  • Capacitor open circuit.
  • The bearing is stuck.
  • Rotor and stator rubbing.
