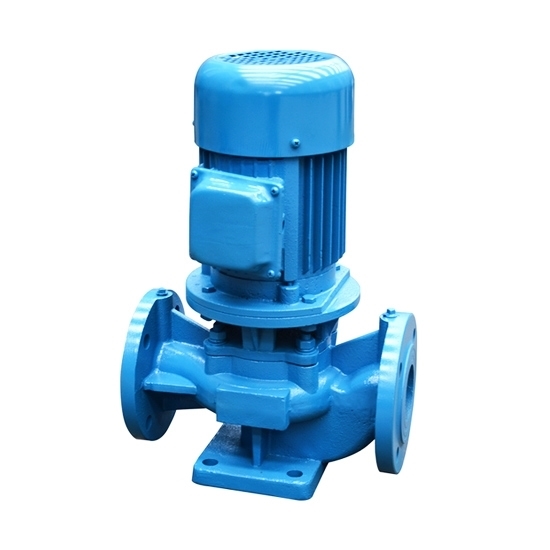

    1 hp Vertical Centrifugal Pump, Single Stage

    5 out of 5 based on 1 reviews | Write a review
    $897.77
    Low price 1 hp vertical centrifugal pump is a single-stage pipeline pump. It has an equal inlet and outlet diameter of 25mm (1 inch), maximum flow of 22.9 gpm, a maximum lift of 20.6m (68ft), optional input voltage of AC 220V/240V/380V/415V to 480V, and input frequency of 50Hz/60Hz. 3 phase centrifugal pump can be used for industrial and urban water supply, such as pipeline pressurization of the production line, firewater, and air conditioning systems.
    SKU: ATO-VCP-0750W
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    1 hp single stage vertical centrifugal pump for sale. It has a maximum flow of 5.2m3/h, a maximum lift of 20.6m, an inlet and outlet diameter of 25mm.

    Features:

    • The centrifugal pump has a vertical structure, and its inlet and outlet have the same diameter. The inlet and outlet are on the same centerline so that they can be installed in the pipeline like a valve. If a protective cover is added, it can be used in the open air.
    • Easy to install and maintain. There is no need to dismantle the piping system, just remove the connecting flat nut of the vertical pump. All rotor parts can then be removed.
    • The vertical pump can be installed vertically or horizontally according to the requirements of the piping system.
    • Vertical centrifugal pumps can be run in series or in parallel according to the requirements of flow and head.

    Specification

    • Model: ATO-VCP-25-125
    • Power: 1 hp (0.75W)
    • Number of stages: Single stage
    • Input voltage: AC 220V~480V
    • Input frequency: 50Hz/60Hz
    • Inlet diameter: 25mm (1 inch)
    • Outlet diameter: 25mm (1 inch)
    • Flow (min. flow to max. flow): 2.8m3/h (12.3 gpm), 4m3/h (17.6 gpm), 5.2m3/h (22.9 gpm)
    • Head (max. head to min. head): 20.6m (68ft), 20m (66ft), 18m (59ft)
    • Efficiency: 28%, 36%, 35%
    • Installation mode: Vertical type or horizontal type
    • Nominal diameter of impeller: 125mm
    • Size: 260*230*435mm
    • Weight: 55kg

    Vertical centrifugal pump dimension (unit: mm): Vertical centrifugal pump dimensional drawing

    Boundary dimension L B H C1*B1
    260 230 435 80*110
    Installation dimension A C2*B2 4-Φd1
    75 50*80 4-Φ12
    Flange dimension D D1 n-φd
    φ115 φ85 4-φ14

    Tips: Application range of centrifugal pump

    1. Centrifugal pump is suitable for high-rise building pressurized water supply, garden sprinkler irrigation, cooling tower water feeding, long-distance water delivery, air conditioner, refrigeration and bathroom, the cold and hot water cycle pressurization. The operation temperature is below 80 ℃.
    2. Centrifugal pump is applicable to the hot-temperature hot water pressurizing circulation of the heating, boiler and other industries. The operation temperature is below 130℃.
    3. A Centrifugal pump is suitable for conveying corrosive media in the process of food, pharmaceutical, winemaking, chemical and other industries. The operation temperature is below 80 ℃.
    4. A Centrifugal pump is suitable for transporting non-corrosive liquids. It is applicable to industrial sites with methane or other explosive mixtures. The operation temperature is below 80℃.
    5. Centrifugal pump is suitable for transporting chemical, pharmaceutical, petrochemical, food, national defense and other industrial corrosive liquids. It is applicable to industrial sites with methane or other explosive mixtures. The operation temperature is below 150 ℃.
    Phase 3 phase
    Input voltage AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V
    Input frequency 50Hz, 60Hz
    Installation angle of outlet 0°, 90° and 180°
    Pump type Booster pump
    Number of stages Single stage
    Motor type Y/ Y2 series motor
    Motor speed 2900rpm
    Impeller material 304/ 316 stainless steel
    Seal material 304 stainless steel, tungsten carbide, fluorine rubber
    Inlet max. pressure 1MPa (145 psi)
    (NPSH)r 2.3m
    Usage Water, or liquids compatible with pump component materials.
    1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm.
    2. The temperature should be lower than 60℃.
    Environment Temperature: <40℃, humidity: <95%, altitude<1000m
    Warranty 12 months
