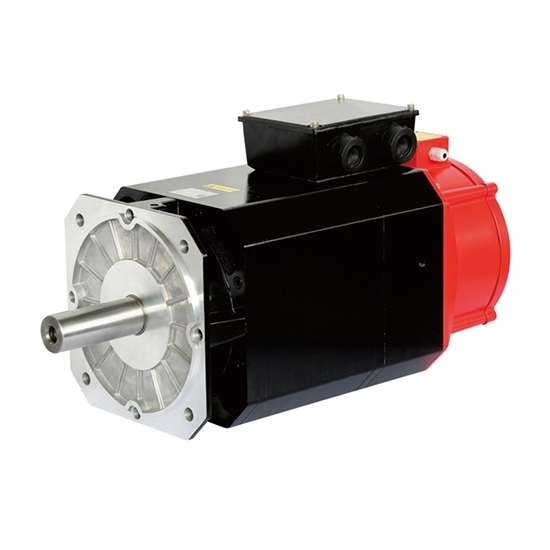

    10 hp (7.5 kW) AC Servo Spindle Motor, 50 N.m, 1460 rpm

    5 out of 5 based on 1 reviews | Write a review
    $1,546.23
    High torque AC servo spindle motor for sale. Rated power 10 hp (7.5 kW), working voltage 220V/380V, operating speed 1460 rpm with max 6000 rpm, torque 50 N.m, built with photoelectric encoder, available matching controller and brake resistor. 3-phase AC asynchronous servo motor for CNC machine spindle control, industrial grade, competitive price.
    SKU: ATO-SERVO-1050
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Manufacturer direct sales heavy-duty AC servo spindle motor. Working power 10 hp (7500W), rated voltage three phase 380V, max 6000 rpm, high torque 50 N.m. Asynchronous servo electric motor, which is equipped with high speed photoelectric encoder. Applications include spindle control of CNC machine, milling tool, router and industrial automation speed control. ATO recommends you buy the motor with a driver and brake resistor for control it better.

    Specification

    Model ATO-204ZJY-4-7.5-15-X
    Rated Power 10 hp (7.5 kW)
    Rated Torque 50 N.m
    Rated Voltage (optional) AC 3-Phase 380V, 220V
    Rated Current 16A
    Rated Speed 1460 rpm
    Max Speed 6000 rpm
    Rated Frequency 50Hz
    Rotor Inertia 0.025 G.D2
    Fan Power 75W
    Fan Voltage AC 380V
    Vertical Weight 66.5 kg
    Horizontal Weight 71.5 kg
    Working Temperature 0~55℃
    Humidity Less than 90%
    Number of Poles 4
    Incremental Encoder Line (optional) 1024/2500PPR
    Insulation Class F
    Safety Class IP54
    Insulation and Voltage Resistance AC 1500V, 1 minute
    Insulation Resistance DC 500V, 10M above
    Vibration Under 2.5G
    Altitude Under 1000m
    Work System Continuous
    Installation Method Flange installation

    Features

    • The AC servo spindle motor is a 3-phase AC induction servo motor, compact structure, small size, high torque.
    • AC servo spindle motor adopts best electromagnetic design, high-speed photoelectric encoder, high precision bearings and F level insulation.
    • AC servo spindle motor is in easy use, stable operation, high control precision, low electromagnetic noise, high efficiency, long service life and high performance price ratio.
    • AC servo spindle motor is widely used in digital control machine, laser machine, milling machine, embroidery machine, textile machinery, printing machinery, packaging machinery, engraving machine, winding machine, three-coordinates measuring machine, industrial robot, medical equipment, woodworking router and other CNC  machine.

    10 hp (7.5 kW) AC Servo Spindle Motor Installation Dimension (Unit: mm)

    • Vertical Installation

    10 hp (7.5 kW) AC Servo Spindle Motor Installation Dimension, Vertical

    • Horizontal Installation

    10 hp (7.5 kW) AC Servo Spindle Motor Installation Dimension, Horizontal

    AC Servo Spindle Motor Encoder Wiring

    Serial Number 1 2 3 4 5 6 7 8 9 10
    Signal Shield Z+ B+ A+ +5V   Z- B- A- 0

    Tips: Is the overload of 10 hp AC servo spindle motor necessarily related to the current?

    10 hp AC servo spindle motor is used as a torque output device, and its overload must be that the shaft torque of the mechanical part is large and exceeds the allowable value of the motor, regardless of the current. However, this phenomenon is characterized by an increase in current, which is equal to or exceeds the rated current. Under normal circumstances, when the AC servo spindle motor is configured and designed, the selected electric torque is greater than 10~15% of the mechanical shaft torque. Therefore, when the operating current of 10 hp AC servo spindle motor reaches or slightly exceeds 85% of the rated current, basically, it can be considered that the full load of the machine has been reached. When it exceeds 90%, it can be regarded as mechanical (equipment) overload.
