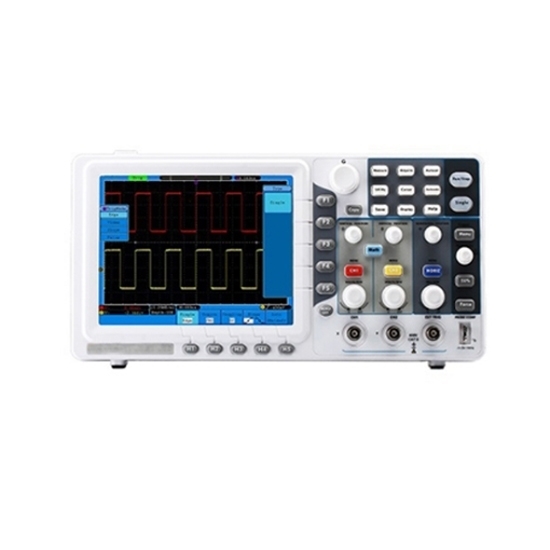

    100 MHz Digital Oscilloscope, 2 Channels, 1 GSa/s

    4 out of 5 based on 1 reviews | Write a review
    $841.59
    Good price 100 MHz digital storage oscilloscope with 1 GSa/s sampling rate, 1 GSa/s sampling rate, and 2 channels. The 2-channel oscilloscope is a kind of digital equipment with a storage function, which adopts a digital circuit for analog/digital conversion.
    SKU: ATO-SCOPE-100M2
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High-accuracy dual-channel digital oscilloscope with 100 MHz bandwidth, 1 GSa/s sampling rate, 8 bits vertical resolution. Digital oscilloscope has the advantages of waveform triggering, storage, display, measurement, and waveform data analysis and processing.

    Specification

    Model ATO-EDS-102C
    Bandwidth 100 MHz
    Channel 2+ external trigger
    Sample rate 1 GSa/s
    Acquisition model Sample, Peak detect
    Record length 10M
    Display 8 inch LCD
    Waveform refresh rate 10000 wfrms/s
    Input coupling DC, AC, Ground
    Probe attenuation 1X, 10X, 100X, 1000X
    Input Impedance 1MΩ ± 2%, in parallel with 10pF ± 5pF
    Max. input voltage 400V (DC+AC, PK - PK)
    Bandwidth limit(typical) 20MHz / Full bandwidth
    Sampling rate range 2ns/div ~ 100s/div,step by 1-2-5
    Vertical Resolution 8 bits
    Sensitivity Resolution 2mV/div~10V/div
    Low Frequency(-3db) ≥10 Hz (at input, AC coupling)
    Rise time (at input, Typical) ≤5.8ns
    Trigger type Edge
    Trigger model Auto, Normal, single
    Trigger level range ±6 div from the screen center
    Automatic measurement Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot,
    Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
    Cursor measurement ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
    Dimension 340*155*70mm
    Weight 1.8kg


    Accessories

    • Power cable
    • USB cable
    • Probe
    • Probe Adjust
    • Quick Guide

    Dimension

    Dimension of 100 MHz digital oscilloscope

    Details

    100MHz Digital Oscilloscope Details

    Tips: When should the oscilloscope sample rate be considered?

    Bandwidth is dependent on the object being measured. On the premise that the bandwidth is satisfied, it is hoped that the minimum sampling interval (the reciprocal of the sampling rate) can capture the signal details you need. When selecting a sine wave, the bandwidth of the oscilloscope should be more than 3 times the frequency of the measured sine signal, and the sampling rate should be 4 to 5 times the bandwidth, which is actually 12 to 15 times the signal; for other waveforms, Make sure the sampling rate is high enough to capture signal details. If you are using an oscilloscope, you can verify whether the sampling rate is sufficient by the following method: Stop the waveform and zoom in on the waveform. If you find changes in the waveform (such as certain amplitudes), it means that the sampling rate is not enough, otherwise it will be fine. In addition, point displays can also be used to analyze whether the sampling rate is sufficient.
