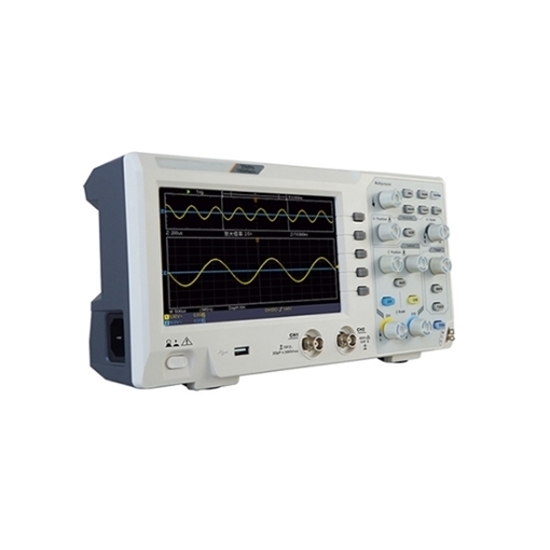

    20 MHz Digital Oscilloscope, 2 Channels, 100 MSa/s

    5 out of 5 based on 1 reviews | Write a review
    $514.60
    Dual channel digital oscilloscope with 20 MHz bandwidth, max. real-time sample rate up to 100 MSa/s. The digital oscilloscope with FFT display function can analyze the spectral characteristics of the signal.
    SKU: ATOO-DO-20
    Free Shipping Worldwide
    Delivery date: 6-12 days

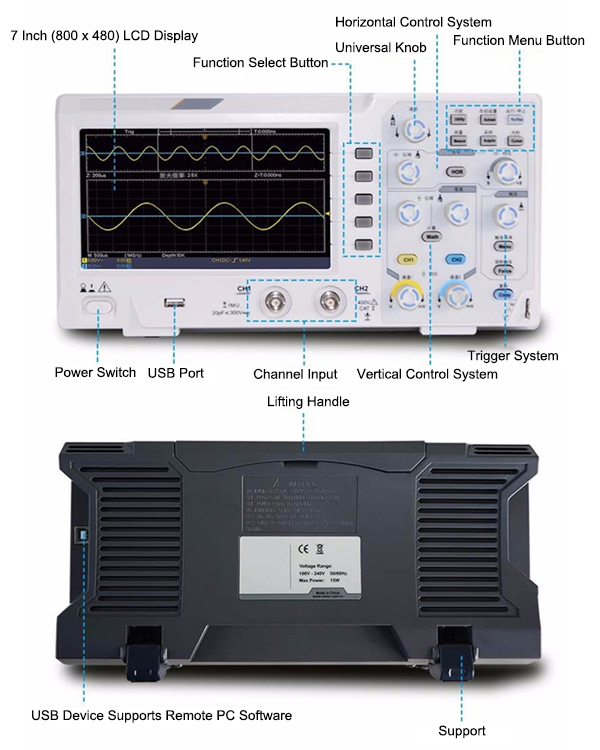

    Digital storage oscilloscope with 20 MHz bandwidth, 2 channels, 100 MSa/s sampling rate, 7 inches color LCD screen. The oscilloscope with innovative design, compact appearance, and abundant functionalities together facilitate people to easily solve complex measurement issues.

    Specification

    Model ATO-NDS-1022S
    Bandwidth 20 MHz
    Channel 2 Channel
    Sample rate 100 MSa/s
    Acquisition model Sample, Peak detect
    Record length 10K
    Display 7 inch LCD
    Waveform refresh rate 10000 wfrms/s
    Input coupling DC, AC, Ground
    Probe attenuation 1X, 10X, 100X, 1000X
    Input Impedance 1MΩ ± 2%, in parallel with 20pF ± 5pF
    Max. input voltage 400V (DC+AC, PK - PK)
    Bandwidth limit(typical) 20MHz/ Full bandwidth
    Sampling rate range 5ns/div ~ 1000s/div, step by 1-2-5
    Vertical Resolution 8 bits
    Sensitivity Resolution 5mV/div~5V/div
    Low Frequency(-3db) ≥10 Hz (at input, AC coupling)
    Rise time (at input, Typical) ≤17.5ns
    Trigger type Edge
    Trigger model Auto, Normal, Single
    Trigger level range ±6 div from the screen center
    Automatic measurement Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot,
    Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
    Cursor measurement ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
    Dimension 301*152*70mm
    Weight 1.1kg


    Accessories

    • Power cable
    • USB cable
    • Probe
    • Probe Adjust
    • Quick Guide

    Dimension

    Dimension of 20 MHz digital scilloscope

    Tips: What is a digital oscilloscope used for?

    The oscilloscope is used for electronics measurements, particularly for waveform measurements on analog circuits. The principle is that a CRT beam is deflected horizontally by a sawtooth waveform, the timebase, while the vertical deflection is caused by an input signal.
