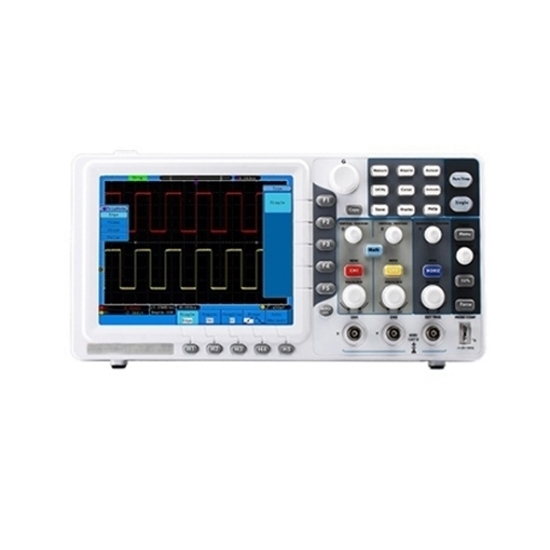

300 MHz Digital Oscilloscope, 2 Channels, 2.5 GSa/s

5 out of 5 based on 1 reviews | Write a review
$2,571.75
ATO digital storage oscilloscope provides a dual-channel, 300 MHz bandwidth oscilloscope and 2.5 GSa/s real-time sample rate. The digital oscilloscope has the function of memory and storage of the observed signal.
SKU: ATO-SCOPE-300M2
30-day Returns
Free Shipping
Delivery date: 6-12 days

This compact digital oscilloscope with 300 MHz bandwidth, 2.5 GSa/s sampling rate, 8 inches color LCD screen, bright color, and high contrast. Digital storage oscilloscope can be used to observe and compare single-shot processes and non-periodic phenomena, low-frequency, and slow signals, and signals observed at different times and places.

Specification

Model ATO-EDS-302C
Bandwidth 300 MHz
Channel 2+ external trigger
Sample rate 2.5 GSa/s
Acquisition model Sample, Peak detect
Record length 10M
Display 8 inch LCD
Waveform refresh rate 10000 wfrms/s
Input coupling DC, AC, Ground
Probe attenuation 1X, 10X, 100X, 1000X
Input Impedance 1MΩ ± 2%, in parallel with 15pF ± 5pF
Max. input voltage 400V (DC+AC, PK - PK)
Bandwidth limit(typical) 20MHz / Full bandwidth
Sampling rate range 1ns/div ~ 100s/div,step by 1-2-5
Vertical Resolution 8 bits
Sensitivity Resolution 2mV/div~10V/div
Low Frequency(-3db) ≥10 Hz (at input, AC coupling)
Rise time (at input, Typical) ≤5.8ns
Trigger type Edge
Trigger model Auto, Normal, single
Trigger level range ±6 div from the screen center
Automatic measurement Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot,
Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
Cursor measurement ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
Dimension 340*155*70mm
Weight 1.8kg



Accessories

  • Power cable
  • USB cable
  • Probe
  • Probe Adjust
  • Quick Guide

Dimension

Dimension of 100 MHz digital oscilloscope

Details

300 MHz Digital Oscilloscope Details

Tips: What are the applications of digital oscilloscopes?

Oscilloscopes are used in the sciences, medicine, engineering, automotive and telecommunications industry. General-purpose instruments are used for the maintenance of electronic equipment and laboratory work.

Existing reviews of 300 MHz Digital Oscilloscope, 2 Channels, 2.5 GSa/s
Accurately capture high frequency signals
Features a 300 MHz bandwidth that allows measurement of high frequency signals for a wide range of electronics and communications applications. The high bandwidth makes it possible to accurately capture and analyse the details of high frequency signals.
From: Lucien | Date: 19/09/2023
Was this review helpful? Yes No (0/0)
