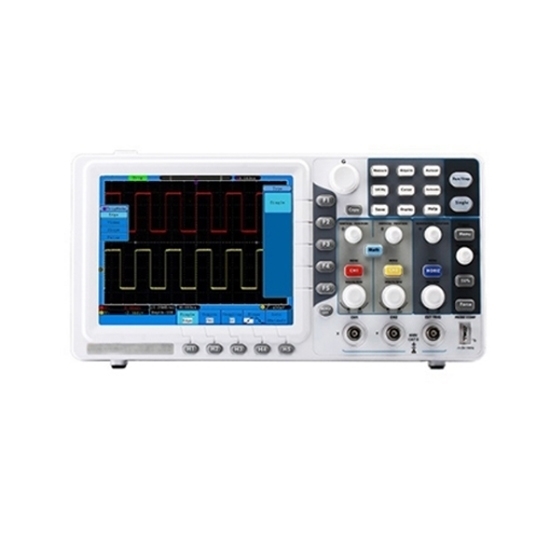

    200 MHz Digital Oscilloscope, 2 Channels, 2 GSa/s

    Cost-effective 200 MHz digital storage oscilloscope comes with 2 channels, 2 GSa/s sampling rate. Digital oscilloscopes have the advantages of waveform triggering, storage, display, measurement, and waveform data analysis and processing.
    SKU: ATO-SCOPE-200M2
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Dual channel digital oscilloscope is a 2 channels oscilloscope, with 200 MHz bandwidth, 2 GSa/s sampling rate and 8 bits vertical resolution. The DSO oscilloscope has a pass/ fail function and trigger synchronous output function, and current measurement function.


    Model ATO-EDS-202C
    Bandwidth 200 MHz
    Channel 2+ external trigger
    Sample rate 2 GSa/s
    Acquisition model Sample, Peak detect
    Record length 10M

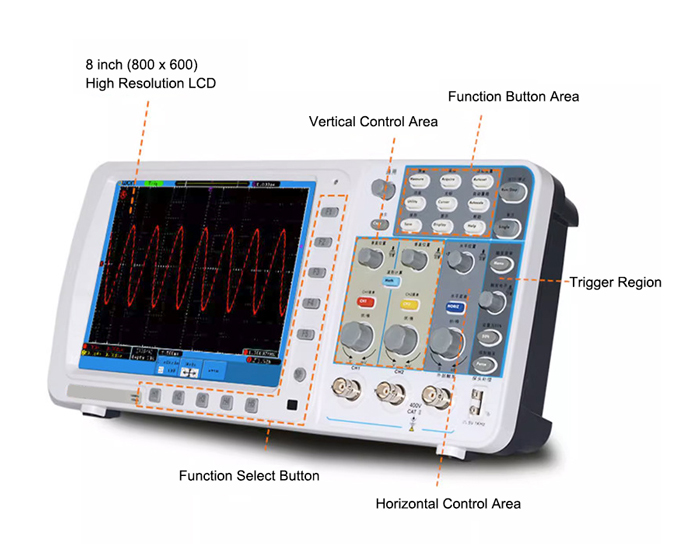

    Display 8 inch LCD
    Waveform refresh rate 10000 wfrms/s
    Input coupling DC, AC, Ground
    Probe attenuation 1X, 10X, 100X, 1000X
    Input Impedance 1MΩ ± 2%, in parallel with 15pF ± 5pF
    Max. input voltage 400V (DC+AC, PK - PK)
    Bandwidth limit(typical) 20MHz / Full bandwidth
    Sampling rate range 2ns/div ~ 100s/div,step by 1-2-5
    Vertical Resolution 8 bits
    Sensitivity Resolution 2mV/div~10V/div
    Low Frequency(-3db) ≥10 Hz (at input, AC coupling)
    Rise time (at input, Typical) ≤1.7ns
    Trigger type Edge
    Trigger model Auto, Normal, single
    Trigger level range ±6 div from the screen center
    Automatic measurement Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot,
    Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
    Cursor measurement ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
    Dimension 340*155*70mm
    Weight 1.8kg



    • Power cable
    • USB cable
    • Probe
    • Probe Adjust
    • Quick Guide

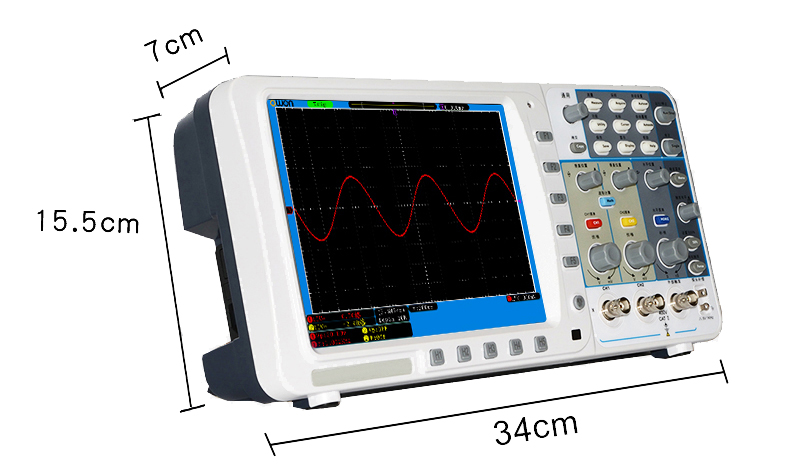

    Dimension of 100 MHz digital oscilloscope

    Tips: Some transient signals of the digital oscilloscope are lost, how to capture and reproduce them?

    Set it to single-shot acquisition mode (trigger mode is set to Normal, trigger condition is set to edge trigger, and trigger level is adjusted to an appropriate value, and then sweep mode is set to single-shot mode), note that the storage depth of the oscilloscope will determine your The time at which the signal can be acquired and the maximum sampling rate that can be used.
