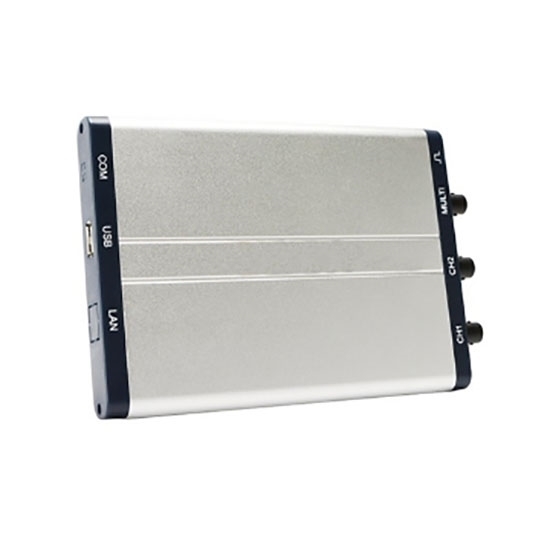

    100 MHz PC Based Oscilloscope, Dual Channel, 1 GSa/s

    ATO 2-channel PC-based oscilloscope has optional USB2.0 or USB 2.0 with LAN network port, with 100 MHz bandwidth, 1 GSa/s sampling rate, which is an instrument used to measure the shape of alternating current or pulse current waves.
    SKU: ATO-PBO-100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    100 MHz PC oscilloscope with 1 GSa/s sampling rate, with multiple trigger modes: edge, video, ramp, pulse width, alternate. The digital PC-based oscilloscope is suitable for portable computers, and tablet PC, and suitable for wild mobile use, and business trip use.


    Model ATO-VDC-3102 ATO-VDC-3102L
    Communication Interface USB2.0

    USB 2.0 (with LAN network port)

    Bandwidth 100 MHz
    Channel 2 Channel+ Multi
    Sample Rate 1 GSa/s
    Max. Input Voltage 40V(DC + AC peak)
    Horizontal Scale (s/div) 2ns/div - 100s/div, step by 1 - 2 - 5
    Record Length 10M
    Input Impedance 1MΩ ± 2%, in parallel with 10pF ± 5pF
    Vertical Sensitivity 5mV/div - 5V/div
    Vertical Resolution 8 bits
    Trigger Type Edge, Pulse, Video, Slope, and Alternate
    Automatic Measurement Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot,
    Pre-shoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
    Waveform Math +, -, *, /, FFT
    Power Supply ≤6.5W
    Dimension (W * H * D) 190* 18* 120mm
    Weight 0.3 kg



    • CD ROM
    • USB cable
    • Probe
    • Probe Adjust
    • Silicon Gel Case
    • Quick Guide

    Dimension (mm)

    PC based oscilloscope dimension

    Tips: Can an oscilloscope measure current?

    Most oscilloscopes only directly measure voltage, not current, however, you can measure current with an oscilloscope, using one of two methods. Measure the voltage dropped across a shunt resistor: Some power supply designs may have shunt resistors built into the design for feedback.
