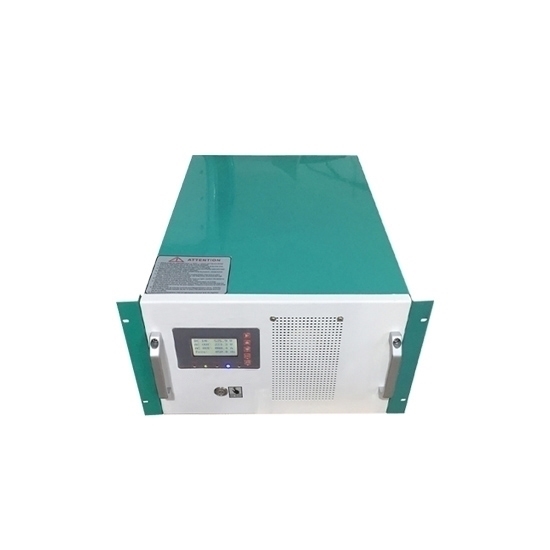

    10000W Marine Power Inverter

    Cheap 10000 watt boat inverter for sale online. Ir provides 240V input DC voltage, 42V input DC current, 50Hz or 60Hz frequency, 110/120/220/230/240V output AC voltage, communication interface RS485, and output waveform pure sine wave. Reliable marine power inverter can convert direct current into alternating current, high overall efficiency and low no-load loss.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Get a 10000W marine power inverter for boat online, available with 240V input DC voltage, 42V input DC current, 50Hz or 60Hz frequency, 110/120/220/230/240V output voltage, and communication interface RS485. Low price boat inverter can convert the battery (DC power) on board into AC power for common electrical equipment.


    • 10000 watt marine inverter utilizes the U.S. DSP28335 control chip for fast running speed and high precision, with a conversion efficiency of over 92% and a built-in industrial frequency isolation transformer for strong anti-interference and impact resistance.
    • The boat inverter is equipped with over-voltage, over-current, short-circuit, and overheating warning devices, along with frequency conversion starting and reduced voltage soft start functions, suitable for high-power motor startups.
    • Good price marine power inverter features an LCD and LED alarm indicators for easy operation, provides a pure output waveform with less than 3% distortion, and supports single-phase power supply with output voltage range of 110/120/220/230/240V AC.


    Model ATO-SDP-10KW
    Isolation Mode Low-Frequency Transformer
    DC Input Voltage Range (V DC) 240V (Contact Us for Other Voltage)
    Rated Current(A) 42A (Contact Us for Other Current)
    AC Output Rated Output Power 10kW (10000 watt)
    Output Waveform Pure Sine Wave
    Rated Voltage 110/120/220/230/240V AC (Optional)
    Phases Single Phase
    Rated Current (A) 23A
    Frequency 50Hz or 60Hz
    Rated Output Voltage Range (V) 110/120/220/230/240V AC (Optional)
    Power Factor (PF) 0.99
    Overload Ability 150%, 5 seconds
    Efficiency >93%
    Waveform Distortion Rate (THD) <3% (Linear load)
    Dynamic Response (0 to 100% Load) 5%≤50ms
    Display LCD
    Running Mode Working Continuously
    Electrical Insulation Properties 2000V AC, 1min
    Communication Interface RS485 (Optional)
    Protection Function Protection Input Reverse Polarity, Under Voltage, Overvoltage, Output Over current, Shortcircuit, Overheating, etc.
    Cooling Method Fan-cooled
    Short-circuit Protector No Automatic Recovery Need to Restart the Machine
    Noise (1m) ≤50dB
    Degree Of Protection IP20 (Indoor)
    Working Altitude (m) ≤2000
    Working Temperature -25~+55℃
    Relative Humidity 0~90% (Non-Condensing)
    Rack Mounted Type Depth*Width* Height 460*680*340mm
    Stand Type 500*500*800mm


    Marine power inverter applications

    Tips: Can I use a marine inverter while the boat is underway?

    Using a marine inverter while the boat is underway is a common practice among boat owners, offering the convenience of powering essential appliances and electronic devices during voyages. However, it's crucial to ensure that the marine inverter is securely installed and properly integrated into the boat's electrical system to maintain a stable power supply. This includes mounting the inverter in a secure location to prevent movement and vibrations, as well as ensuring that all connections are tight and secure to avoid interruptions in power supply due to the boat's movement.

    Additionally, proper ventilation is essential to prevent the marine inverter from overheating, especially during extended periods of use while underway. Adequate airflow around the inverter helps dissipate heat effectively and ensures optimal performance. Boat owners should also monitor battery levels closely to prevent excessive drain, especially during long journeys. By following these guidelines and practicing safe usage, boat owners can enjoy the benefits of using a marine inverte
