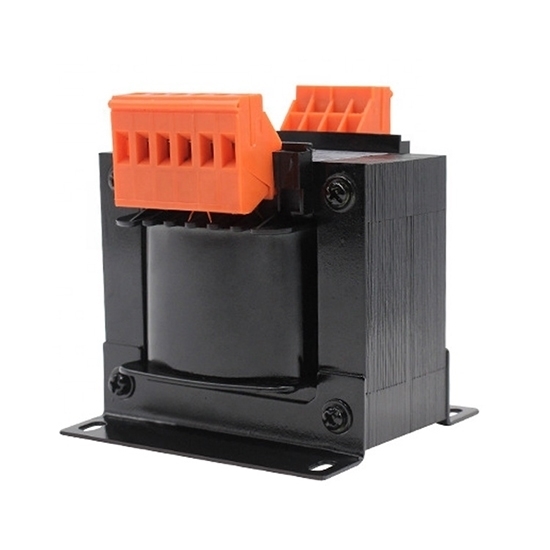

    1000VA Control Transformer, 380V to 208/36V

    $276.31
    Best quality and low price 1kVA isolation control transformer enameled copper wire or aluminum wire, used in 50/60Hz, transforms single phase 380 volt to 2 groups output of 208/36 volt, input/output voltage is customizable as your need.
    SKU: ATO-T-BK1000VA
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Buy 1000VA dry tpye automatic control transformer, single phase, step down 380V to 208/36V, fully electric isolation between primary side and secondary sides. Control transformer is commonly used in machine tool working as local lighting, power of indicator light or the machine control electric appliance.

    Specifications

    Product Name Single phase control transformer
    Product Model ATOBK-1000VA
    Winding Material Enameled copper wire or enameled aluminum wire
    Capacity 1000 VA
    Primary Voltage (VAC) 110, 120, 208, 220, 230, 240, 380, 400, 480, 110/220, 120/240, 240/480...(Customized)
    Secondary Voltage (VAC) 6, 12, 24, 36, 48, 110/48, 120/24, 208/36, 220/48, 230/36, 240/120, 120/24/12, 110/36/24, 127/36/6, 208/48/36/24...(Customized)
    Frequency 50 / 60Hz
    Insulation Level F / H
    Withstand Voltage Test Primary to secondary 2.5KV/min
    Primary to safety ground 2.5KV/min
    Secondary to safety ground 1.5KV/min
    Insulation Resistance Primary to secondary 2500V>100 megohm
    Primary to safety ground 2500V>100 megohm
    Secondary to safety ground 1500V>100 megohm
    Induction Withstand Voltage Test 125Hz/ 800V/min
    Ground Resistance 25<A80 milliohm
    Cooling Method Natural or air cooling
    Transformation Ratio <3%
    Air Carrying Current <6%
    Impedance Voltage about 6%
    Total Losses 0.1
    Efficiency 80%~99%
    Operating Temperature -25℃~40℃ (40℃, 93% RH, 56 days)
    Storage Temperature -25℃~100℃ (40℃, 93% RH, 56 days)
    Certificate CE, ISO
    Warranty 12 months
    Size Overall size: 150*145*155mm, Hold distance for installation: 120*130mm, Installation hold: 12*7mm
    Weight 16kg

    Schematic diagram illustration

    Control transformer schematic diagram illustration

     Control transformer dimension

    Control transformer dimension

    Overall size (mm) Hole distance for installation (mm) Installation hole
    (mm) K x J
    B E D A C
    150 145 155 120 130 12 x 7

    Tips:

    The control transformer is mainly used for "control", mainly to change the primary voltage to the voltage suitable for the electrical control circuit. For example, for the safety of lathe operators, the lathe control circuit is generally reduced to 36V safe voltage. Here we need a 380/36V control transformer. Of course, such a control transformer also has the function of isolation, because it also needs to separate the primary and secondary into two unrelated systems. Moreover, the distributed capacitance of 380V system can be ignored, and the primary and secondary insulation problems are not very large. But it can't be called an isolation transformer.

    The control transformer has a wide range of uses, which can be used as a step-up or a step-down in the low-voltage distribution system. The control transformer is named because it is mostly used in the control system. It can be a step-down transformer with various output voltages, and can also be used as the power supply for low-voltage lighting, signal lights and indicator lights.
