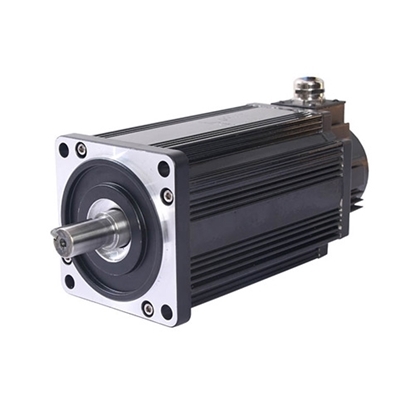

    1000W 48V 1500rpm 6.3Nm DC Servo Motor

    5 out of 5 based on 1 reviews | Write a review
    ATO 48V DC servo motor with 6.3 Nm high holding torque, power rating of 1000W, rated speed of 1500rpm, no-load speed up to 1700rpm, maximum output torque up to 22 Nm. Best and low cost brushless DC servo motor, equiped with 2500PPR incremental encoder.
    Free Shipping Worldwide
    Delivery date: 6-12 days

    1kW brushless design DC servo motor is 1500rpm low rated speed and 6.3Nm rated torque and peak torque up to 22Nm, feedback with 2500 PPR incremental encoder. ATO this series DC servo motors provide features of low rotor inertia, high torque density, high peak torques, low noise, low temperature rising, lower current consumption.

    ATO DC Servo Motor Features

    • IP55 protection grade and F class insulation structure
    • Optimized winding end structure, minimized copper loss and iron loss, small size, light weight, low temperature rise and high efficiency (85%)
    • Super coercivity, using NdFe35 permanent magnet material, strong anti-demagnetization ability, stable motor performance
    • Low noise, low vibration, low moment of inertia
    • High torque, fast dynamic response, wide speed range, strong overload capacity (4 times)

    1000W DC Servo Motor Specifications

    Model ATO-110AS0410-15
    Flange Size 110mm
    Weight 8kg
    Rated Power 1000W
    Rated Voltage 48V
    Rated Current 28A
    Rated Torque 6.3Nm
    Peak Torque 22Nm
    Rated Speed 1500rpm
    No-load Speed 1700rpm
    Incremental Encoder Line 2500PPR
    Line Resistance 0.11Ω
    Armature Inductance 50μH
    Torque Constant 0.23Nm/A
    Brake Apparatus Voltage 24V DC, brake release when powered
    Motor Lead Length 1 meter
    Back EMF 15.6vkr/min
    Rotary Inertia 740Kg.m2x10-6
    Efficiency 85%
    Protection Grade IP55
    Insulation Class Class F
    Certification CE, ISO
    Warranty  12 months
    Working Temperature -25℃~+55℃
    Altitude Under 1000m
    Humidity <90%RH, (no dewing)

    Wiring Definition

    Motor Encoder Brake
    MA/U MB/V MC/W 5V A B Z Hall A/U Hall B/V Hall C/W Shielded Wire Two Cables, Nonpolar
    Red Gray Green Yellow Brown Blue Orange
    Yellow Green Blue 0V A- B- Z- Hall A/U- Hall B/V- Hall C/W- Black (thick)
    Black White/Gray White/Green White/Yellow White/Brown White/Blue White/Orange

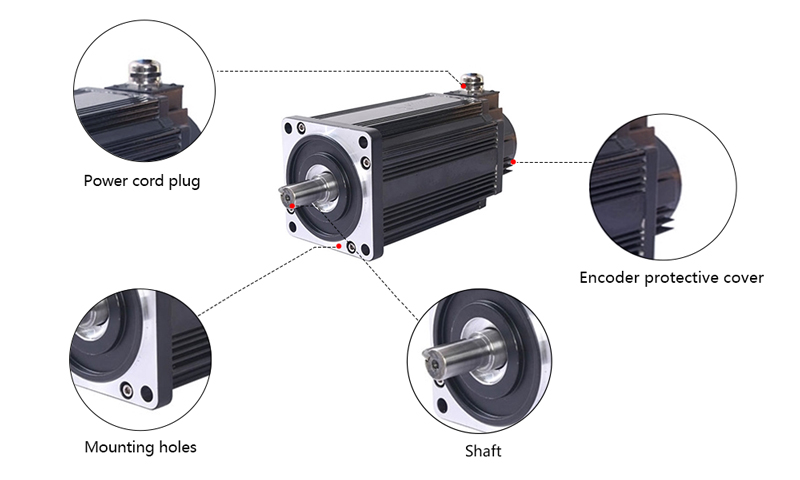

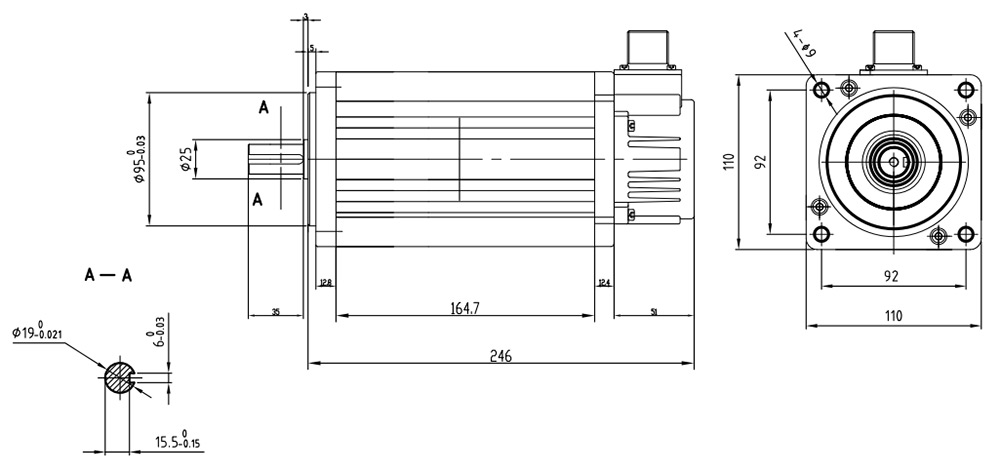

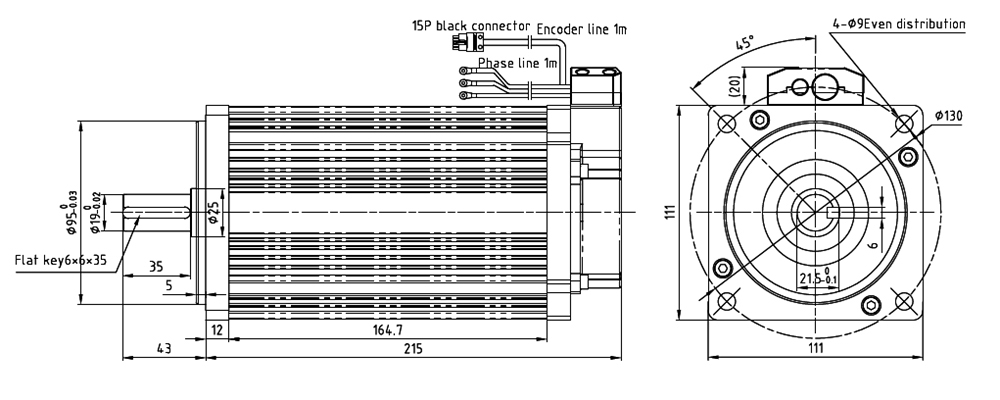

    1000W 48V DC Servo Motor Dimension (Unit=mm)

    1kw 48v dc servo motor size

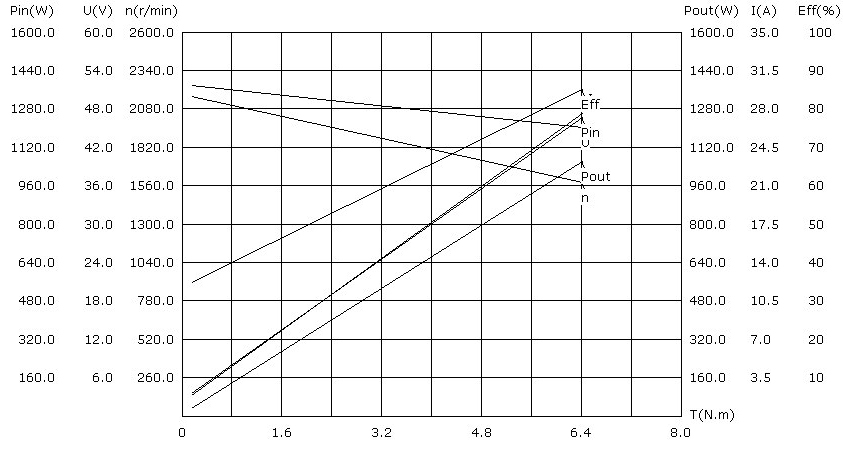

    1000W 48V DC Servo Motor Speed-Torque Curve

    1000w dc servo motor speed torque curve

    At no-load point: 6.41(N.m)
    Speed: 1584.4 (r/min)
    Current: 27.587 (A)
    At max. efficiency point: 85.3 (%)
    Torque: 6.41 (N.m)
    Speed: 1584.4 (r/min)
    Current: 27.587 (A)
    Output power: 1063.57 (W)
    At max. torque point: 6.41 (N.m)
    Speed: 1584.4 (r/min)
    Current: 27.587 (A)
    Output power: 1063.57 (W)
    At max. output power point: 1063.57 (W)
    Torque: 6.41 (N.m)
    Speed: 1584.4 (r/min)
    Current: 27.587 (A)

    Tips: Selection of moment of inertia of servo motors

    Generally, most servo motors will choose the motor with small inertia, so as to satisfy the high responsiveness of the servo system. Since the greater the rated output moment of the servo motor is, the greater the moment of inertia of its rotor is, so it is meaningless to simply discuss the magnitude of the motor's moment of inertia. In fact, the ratio of the rated output moment to the moment of inertia of the servo motor should be discussed, or the magnitude of the moment of inertia of motors with the same rated output moment.

    In general, servo motors will choose servo motors with small inertia to meet the requirement of higher dynamic response. Certainly, servo motors with medium inertia and high inertia can also be chosen according to the specific application environment. For example, when there is no high requirement for fast response, but the requirement for speed control is very precise, and servo motors are often required to run in low speed and low frequency.

    Existing reviews of 1000W 48V 1500rpm 6.3Nm DC Servo Motor
    Information about 1000W DC Servo Motor
    We are needing DC servo motor controller, do you proivde? How can we control motor speed via external signal? Can we control 2 motors via 1 controller? we are open to the learn more about your product.
    From: Nerilils | Date: 31/05/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. Our controllers are available in position mode and speed mode.
    You can control the motor position or speed via RS232 or CAN open and support PWM, 0-5V signals as well.
    2. If you wants to control 2 motors, your are needing to buy 2 controllers because the controller only supports 1 motor.
    See attached controller's user manual.
