10 amp 2 pole Miniature Circuit Breaker

5 out of 5 based on 1 reviews | Write a review

$62.69

10 amp double pole miniature circuit breaker complies with IEC standards and provides supplementary protection for electrical equipment. This 2 pole mini MCB offers reliable performance with a short-circuit breaking capacity of 6kA and a C curve trip characteristic.

SKU: ATO-MCB-2P10

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

10 amp 2 pole miniature circuit breaker (MCB) is a switch used in residential and commercial electrical systems for protecting circuits from overloads and short circuits. This mini circuit breaker provides reliable protection by automatically disconnecting the circuit if the current exceeds the safe limit, preventing potential damage to electrical equipment and wiring.

Double Pole MCB Breaker Information

Rated Current: 10 amp
Rated Voltage: 230/400V AC, 50Hz
Number of poles: 2 poles
6 kA rated short-circuit breaking capacity
Compliant with IEC standard
C curve trip characteristic
With overload protection and short circuit protection function

Technical Data

Model		ATO-NB8-632PC10
Rated Current		10A
Rated Voltage		230/400V
Frequency		50Hz
Number of Poles		2P
Mechanical Life		20000 Times
Electrical Life		10000 Times
Rated Short-Circuit Breaking Capacity		6000A
Operating Short-Circuit Breaking Capacity		6000A
Rated Impulse Withstand Voltage (1.2/50)		6kV
Dielectric Test Voltage		2000V (50Hz, 1 min)
Heat & Humidity Resistance		28 Cycles
Vibration Resistance		No Obvious Vibration and Impact
Terminal Block	Terminal Block Type	Pillar Terminal Block
	Min. Terminal Size Acceptability	1mm²
	Max. Terminal Size Acceptability	25mm²
	Standard Connection Torque	2 N.m
	Max. Tolerable Torque	2.5 N.m
	Wire Insertion Depth	13mm
Reference Temperature		30℃
Operating Temperature		-35℃~+70℃
Storage Temperature		35℃~+85℃
Applicable Altitude		2000m
Tripping Mode		Thermal Magnetic Trip
Electromagnetic Tripping Type		Type C (5In-10In)
Shell Flame Retardant Grade		V0
Wire Entry Method		Both Upper and Lower
Installation Method		TH35-7.5 Standard Rail
Protection Level	Direct Installation	IP20B
	Installed in the Distribution Box	IP40B

Double Pole MCB Breaker Dimensions (Unit: mm)

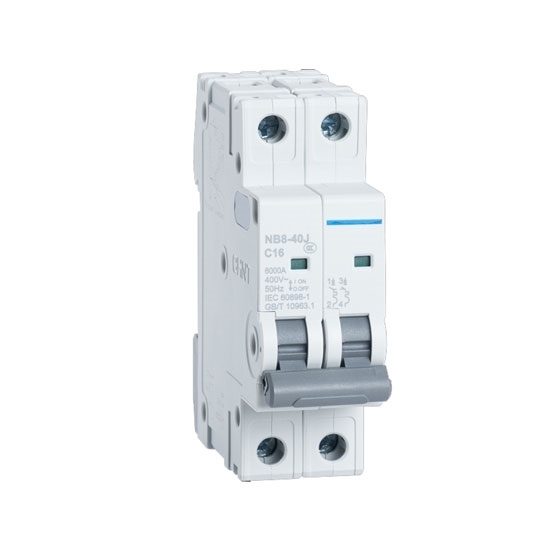

10 amp 2 pole Miniature Circuit Breaker Dimensions

Details

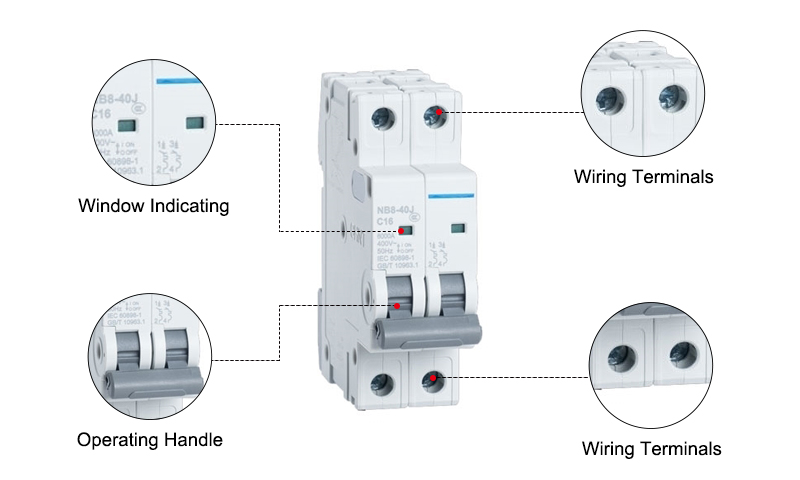

2 pole Miniature Circuit Breaker Details

Tips: Difference between MCB and RCCB

An MCB (Miniature Circuit Breaker) and an RCCB (Residual Current Circuit Breaker) serve different protective functions in electrical systems.

MCB (Mini Circuit Breaker): MCBs are designed to protect circuits from overcurrent conditions, such as overloads or short circuits. They automatically cut off the power when the current exceeds a safe limit, preventing potential damage to the wiring or equipment.

RCCB (Residual Current Circuit Breaker): RCCBs protect against electrical shocks and earth leakage by detecting the difference in current between the live and neutral wires. If this difference occurs (indicating leakage), the RCCB immediately disconnects the power, ensuring safety against electric shock.

Types of Circuit Breakers

In this video, we'll take a closer look at the meaning behind these abbreviations and explain the types of circuit breakers they represent. By understanding the different types of circuit breakers on the market, you can make an informed decision and choose the right type for your specific requirements, thereby enhancing the protection of your electrical infrastructure.

Isolator vs Circuit Breaker

Although isolators and circuit breakers have similar functions in a circuit, they are two separate entities. This video explains you the difference between the two devices in terms of working, features, operation, affordability, etc. You can choose between them based on your specific requirements.

Essential Electronic Components in Electrical Systems

Welcome back to the ATO Channel, you go-to source for electrical and industrial automation insights.

Relays vs Circuit Breakers: What’s the Difference

In this video, we've described the difference between a relay and a circuit breaker as well as explaining their basic working and operation by means of animation. If you find this video helpful, please LIKE it and SHARE with your friends. Don't forget to check out the purchase links above if any featured items're of your interest.
