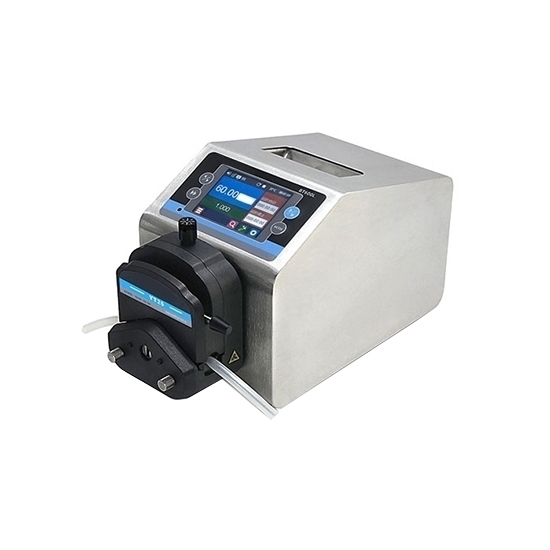

    1100 GPD Peristaltic Dosing Pump

    5 out of 5 based on 2 reviews | Write a review
    $2,152.31
    Buy high flow peristaltic dosing pump at ideal price. Flow rate 0.006~2900mL/min (1100GPD), max speed 600 rpm, rated voltage 110V/220V, max power 60W, optional tubing inner diameter 4.8/6.4/7.9/9.6mm. Peristaltic metering pump for flow transmission and control, selecting other sizes of pump head and hose for different flow rate is provided.
    *
    *
    *
    *
    *
    SKU: ATO-PDP-1100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    1100 GPD peristaltic dosing pump for sale. Flow rate range 0.006~2900mL/min, applicable hose inner diameter 4.8/6.4/7.9/9.6mm. The peristaltic metering pump can be used with different tubing and pump head to reach your needs to liquid flow rate. It supports high-precision continuous transmission, control and simple dosing transmission for liquid.

    Specification

    Model ATO-BT600L
    Water Flow Rate mL/min 0.006~2900
    GPD (gallon/day) 0~1100
    Speed Range 0.1~600 rpm
    Speed Resolution 0.1 rpm
    Speed Accuracy Error < ±0.2%
    Delay Start Time 1s~999h
    Delay Stop Time 1s~999h
    Distribution Time 0.1-99.9s
    Number of Distribution 1-999 times, 0 is infinite loop
    Distribution Interval 0.1-999 seconds/minute/hour
    Suction Angle 0~720°
    Power Supply AC 220V ± 10%, 50/60Hz
    AC 110V ± 10%, 50/60Hz
    Motor Power <60W
    External Control Interface External control input level 5V/12V/24V
    External control analog quantity 0-5V/0-10V/4-20mA
    External Control Digital Communication Interface RS485 communication, supports MODBUS protocol
    Working Environment Ambient temperature 0~40℃, relative humidity <80%
    Protection Grade IP31
    Overall Size 260*161*186mm
    Weight 5.2kg

    Features

    1. Peristaltic dosing pump has a 4.3-inch color LCD display, the touch screen cooperates with key operations.
    2. Peristaltic dosing pump has LF-Touch-OS software system, which is efficient and stable, and has a good human-computer interaction mode, which is convenient for customization and upgrading.
    3. Peristaltic metering pump has a flow mode and a time mode. Flow and time distribution can be pre-stored 5 groups of distribution parameters. High-precision flow control and display, micro-step algorithm to ensure the accuracy of split charging under different settings.
    4. Peristaltic dosing pump has a guided flow correction function, which is simple and easy to use. The suck back function effectively prevents the liquid from dripping.
    5. Programming mode supports 30 different quantitative parameter settings, which can realize complex control processes.
    6. Peristaltic dosing pump has an intelligent temperature control function, which automatically adjusts heat dissipation according to the environment, so that the peristaltic metering pump is always in the best condition.
    7. Peristaltic dosing pump has infrared remote control function, which is convenient for wireless connection.
    8. Peristaltic metering pump can perform external analog speed regulation. The external control signal controls the start and stop, positive and negative, and split-charging.
    9. RS485 communication, MODBUS protocol, supports up to 80 programming instructions, which is convenient for connecting the peristaltic metering pump with various control equipment.

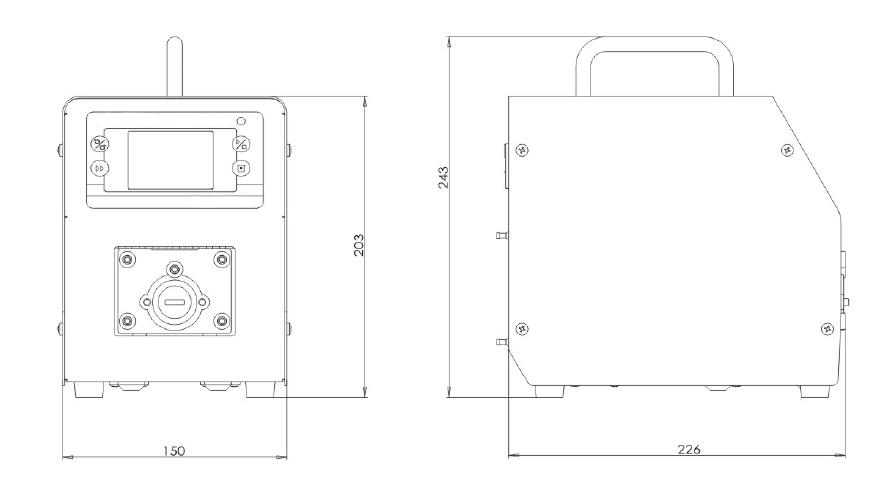

    1100 GPD Peristaltic Dosing Pump Dimensions Drawing (Unit: mm)

    Dimensions of 1100 GPD Peristaltic Dosing Pump

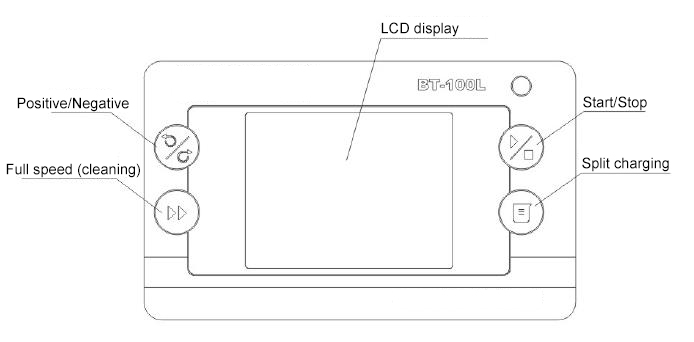

    1100 GPD Peristaltic Dosing Pump Panel Details

    Panel of 1100 GPD Peristaltic Dosing Pump

    1100 GPD Peristaltic Dosing Pump Hose Specification (Unit: mm)

    Model Inner Diameter Outer Diameter Wall Thickness
    15# 4.8 9.8 2.5
    24# 6.4 11.4 2.5
    35# 7.9 12.9 2.5
    36# 9.6 14.6 2.5

    Tips: Application of peristaltic dosing pump in medical field.

    Production of medical equipment, testing instruments and consumables has always had strict requirements on sterility and transmission accuracy. ATO peristaltic dosing pumps have a wide range of applications in the medical industry, mainly due to the following advantages.

    • Highly clean fluid tubing, easy to clean and sterilize.
    • The tubing can be used once or repeatedly.
    • The transmission is gentle and stable, and the measurement is accurate.
    • ATO peristaltic dosing pumps can transfer materials containing magnetic beads, gels, glycerin and other impurities and sediments.
    • Reliable and precise filling accuracy.
    • The inner wall of the pipeline is smooth, no dead ends, no valves, and extremely low residue.
    • Flexible scalability, small space ratio and low price.
    • Low shear force, high integrity of materials retained
    • ATO peristaltic dosing pumps can provide complete solutions for the following needs:
    • Fully automatic chemiluminescence, POCT and other IVD equipment, such as sample injection/waste discharge, etc.
    • Protein analysis, blood analysis, stool analysis and other supporting facilities.
    • Surgical ablation, hemodialysis and other supporting facilities.
    • Teeth cleaning, liposuction, gravel washing, intestinal perfusion, etc.
    • High-precision filling of diagnostic reagents and encapsulation liquids.

    Explained the working principle

    This video tells us what a peristaltic pump is and its working principle, and you will have a rough understanding of it.

    Enhancing peristaltic pump efficiency

    This video is about how to improve the efficiency of peristaltic pumps.

    Functions and selection methods

    This video introduces the functions and selection methods of peristaltic pumps, allowing you to choose different types of peristaltic pumps according to your own needs.

    Existing reviews of 1100 GPD Peristaltic Dosing Pump
    Inquire about a transfer pump
    We are looking to purchase a transfer pump (AODD or peristaltic) that is compatible with acetone, capable of transfer flow as small as 20 mL/min and that is Atex zone 2 or NEC class 1 division 2 certified. Solution viscosity is 1000cps.

    Do you have any pump that meet these requirements?
    From: Leo | Date: 20/10/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Unfortunately, we can offer peristaltic pumps with delivery flows as small as 20 mL/min, but are Not Atex zone 2 or NEC class 1 division 2 certified.
    It's perfect for what I'm using it for.
    I like this peristaltic dosing pump. It's perfect for what I'm using it for. The enclosure is sturdy. The pump came with a power supply, the variable rate pot with on/off switch, and its quiet operation.
    From: George | Date: 05/05/2022
    Was this review helpful? Yes No (0/0)
