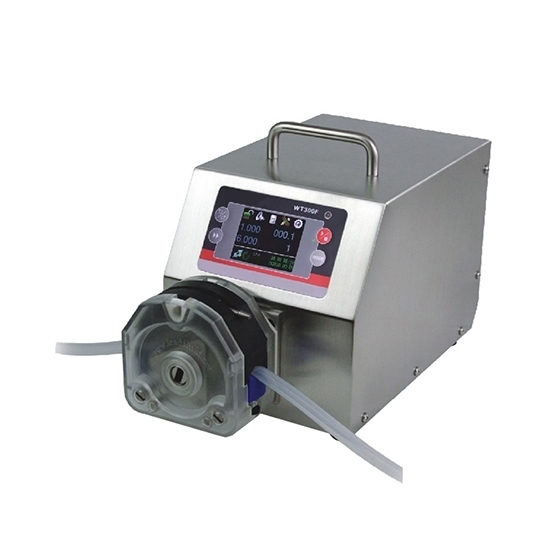

    2200 GPD Peristaltic Dosing Pump

    5 out of 5 based on 2 reviews | Write a review
    $2,826.62
    2200 GPD Peristaltic dosing pump driven by 200W motor, operates at 180V~264V rated voltage. Flow rate range 0.06~6000mL/min, speed range 0.1-600 rpm, applicable hose inner diameter 4.8/6.4/7.9/9.6mm. Peristaltic metering pump with high flow and low price, suitable for medical use and laboratory equipment.
    *
    *
    *
    *
    *
    SKU: ATO-PDP-2200
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy peristaltic dosing pump produced from ideal manufacturer, powered by 200W BLDC motor, rated voltage 180V~264V. Max flow rate 2200 GPD (0.06~6000mL/min), tubing inner diameter 4.8/6.4/7.9/9.6mm. Welcome to contact us to get more tubing and pump heads to meet your needs for liquid transmission and flow control.

    Specification

    Model ATO-WT600F
    Water Flow Rate mL/min 0.06~6000
    GPD (gallon/day) 0~2200
    Speed Range 0.1~600 rpm
    Speed Resolution 0.1 rpm
    Speed Accuracy Error < ±0.2%
    Power Supply AC 180-264V 50Hz/60Hz
    AC 90-132V 50Hz/60Hz
    Motor Power <200W
    External Control Interface External control input level 5V/12V/24V
    External control analog quantity 0-5V/0-10V/4-20mA
    External Control Digital Communication Interface RS485 communication, supports MODBUS protocol
    Working Environment Ambient temperature 0~40℃, relative humidity <80%
    Protection Grade IP31
    Weight 6.2kg

    Features

    1. Peristaltic dosing pump has a color LCD display, the touch screen cooperates with key operations.
    2. Peristaltic dosing pump has 4 working modes: flow mode, liquid volume distribution, time distribution, and copy distribution. 5 groups of allocation parameters can be pre-stored in the first three modes.
    3. Peristaltic metering pump has the functions of start/stop, forward/reverse, full speed, speed regulation, state memory, etc., to realize flow display, flow control, and flow accumulation.
    4. Peristaltic dosing pump has guided flow correction function and infrared remote control function.
    5. Intelligent temperature control fan minimizes noise.
    6. External control signal controls start and stop, positive and negative, time slipt-charging, optocoupler isolation, external control analog quantity adjusts speed.
    7. RS485 communication, support MODBUS protocol, convenient to connect with various control equipment.
    8. Peristaltic metering pump has super anti-interference characteristics, wide voltage design, suitable for complex power supply environment.
    9. The shell is made of 304 stainless steel, which is easy to clean and effectively prevents the corrosion of various acid, alkali salts and organic solvents.

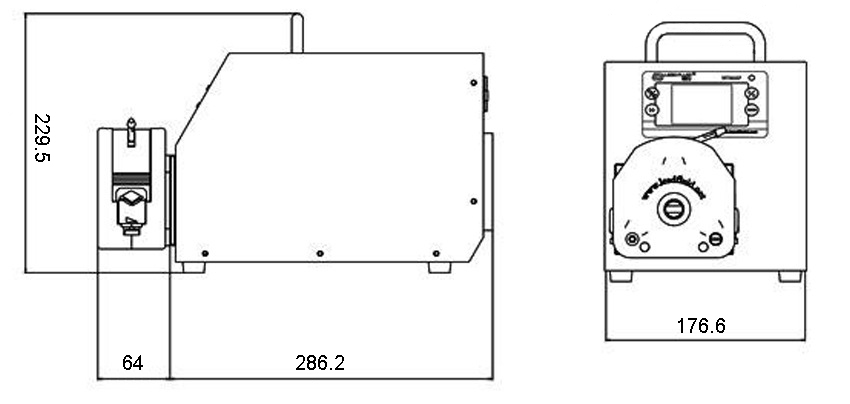

    2200 GPD Peristaltic Dosing Pump Overall Dimensions Drawing (Unit: mm)

    Overall Dimensions of 2200 GPD Peristaltic Dosing Pump

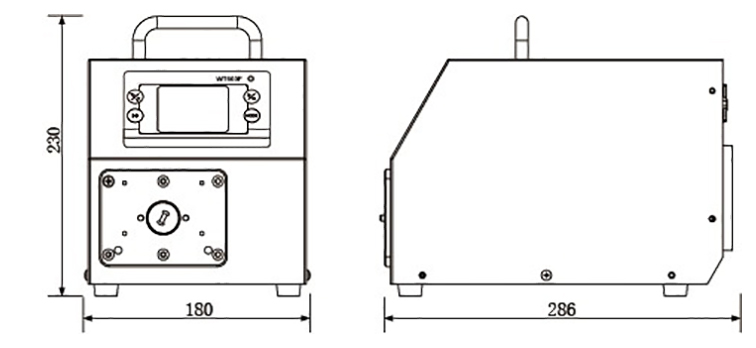

    2200 GPD Peristaltic Dosing Pump Driver Dimensions Drawing (Unit: mm)

    Driver Dimensions Drawing of 2200 GPD Peristaltic Dosing Pump

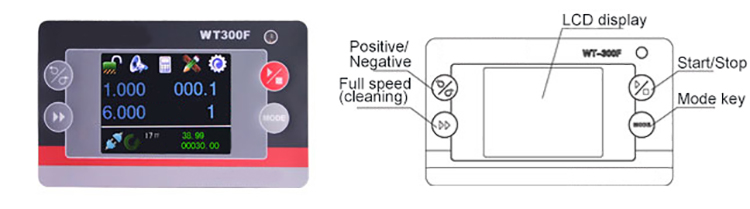

    2200 GPD Peristaltic Dosing Pump Panel Details

    Panel of 2200 GPD Peristaltic Dosing Pump

    2200 GPD Peristaltic Dosing Pump Hose Specification (Unit: mm)

    Model Inner Diameter Outer Diameter Wall Thickness
    15# 4.8 9.8 2.5
    24# 6.4 11.4 2.5
    35# 7.9 12.9 2.5
    36# 9.6 14.6 2.5

    Tips: Peristaltic dosing pump flow range and maximum flow rate.

    1. Flow rate of peristaltic dosing pump is usually measured with clean water within 0.5 meters of suction and 0.5 meters of lift.
    2. The minimum flow and maximum flow of common peristaltic dosing pumps are usually distributed in the range of 0.001 to 30L/min. ATO peristaltic dosing pump has a variety of different flow ranges, which can meet various application requirements in the range of 0.001ml/min~33L/min. Some peristaltic dosing pumps can also stack the pump heads in series, and combine the two inlets and outlets of the two pump heads into one inlet and outlet through a Y-shaped three-way joint, to achieve the effect of doubling the flow rate.
    3. Normally, speed range corresponding to the flow rate of peristaltic dosing pump is 0~600 rpm. There are a few peristaltic pump products whose speed will be higher, but the speed of conventional peristaltic pumps is limited to 600 rpm. If the speed is too high, the hose will not have time to rebound. As the speed increases, the flow rate will not increase significantly. If the speed is too high, the hose will wear faster.
    4. Different types and specifications of peristaltic dosing pumps can obtain different flow ranges by assembling different hoses and setting different speeds. The larger the inner diameter of hose, the greater the flow rate of the peristaltic pump.

    Explained the working principle

    This video tells us what a peristaltic pump is and its working principle, and you will have a rough understanding of it.

    Enhancing peristaltic pump efficiency

    This video is about how to improve the efficiency of peristaltic pumps.

    Functions and selection methods

    This video introduces the functions and selection methods of peristaltic pumps, allowing you to choose different types of peristaltic pumps according to your own needs.
