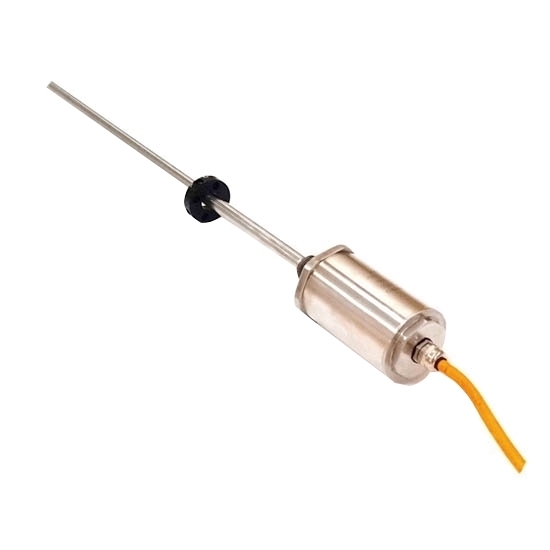

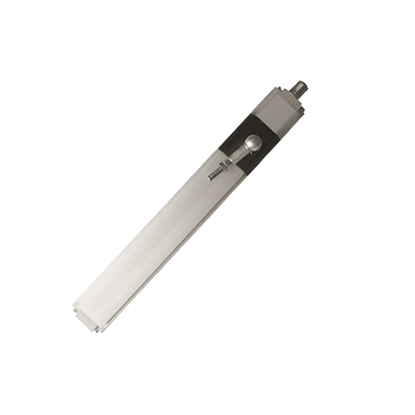

    120mm Magnetostrictive Linear Displacement Sensor

    $803.69
    Magnetostrictive displacement sensor for wood machinery, high precision, no temperature drift, anti-jamming performance, long life, high temperature resistance, corrosion resistance, high pressure resistant.
    SKU: ATO-MSD-0120
    Free shipping
    Delivery date: 6-12 days

    Magnetostrictive linear displacement sensor with measuring range 120mm is used for the machinery position preset and feedback, such as the wood machinery position. Magnetostrictive sensors also can be used in most industrial automation systems.

    Specification:

    Basics Model ATO-MSD-0120
    Measuring range 0~120 mm
    Shipping weight 1.1 kg
    Length 319.3 mm
    Diameter 51 mm
    Technical parameters Linearity ≤0.03%FS
    Repeatability ≤0.003%FS
    Resolution ratio ≤0.001%FS
    Hysteresis ≤0.001%FS
    Working Voltage 24V /12V DC
    Working current Voltage /digital output type≤16mA; Current output type≤35mA
    Output method 0~5V / 0~10V / 4~20mA / 0-20mA RS485 binary digital signal / SSI gray code signal
    Product type Normal type; Explosion-proof type; Anti-corrosion type
    Measuring rod material 0Cr18Ni9 (304) or 316L stainless steel (secial custom-made)
    Measuring rod diameter Ф10mm
    Electronic bin material 1Cr18Ni9 (304)
    304 and PTFE casing outside (Anti-corrosion type, special custom-made)
    1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, special custom-made)
    Connecting screw thread M18×1.5; M20×1.5; 3/4-16UNF
    Type of lead wire PVC shielded cable; aviation plug (not applicable to explosion-proof type)
    Measuring rod pressure 40MPa, 70MPa (Explosion-proof type)
    Temperature T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
    Buffer area Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
    Vibration 100g, IEC standards 68-2-715g /10-2000Hz IEC standards 68-2-6
    Protection Class IP67
    Explosion-proof level Explosion-proof type: EXd II BT5

    Installation diagram:
    1. PG7 connection
    magnetostrictive sensor with PG7 connection
    2. Explosion-proof connection
    magnetostrictive sensor with explosion-proof connection
    3. External installation
    magnetostrictive sensor external installation
    Tips: What is the repeated accuracy, nonlinearity degree and resolution ratio of magnetostrictive sensor?
    Repeated accuracy: Indicating the difference value output by the sensor if measuring along the stroke and when the magnet reaches the same location repeatedly along the same direction.
    Nonlinearity degree: Along the measuring stroke of the sensor, there is difference between the positon display value and true value by the position magnet. In magnetostrictive displacement sensor, such change is caused by the nonlinearity of signal transmission of waveguide medium. Nonlinearity is usually presented by the percentage of absolute error or effective stroke.
    Resolution ratio: The displacement represented by the last digit of measurement output value of magnetostrictive sensor.
