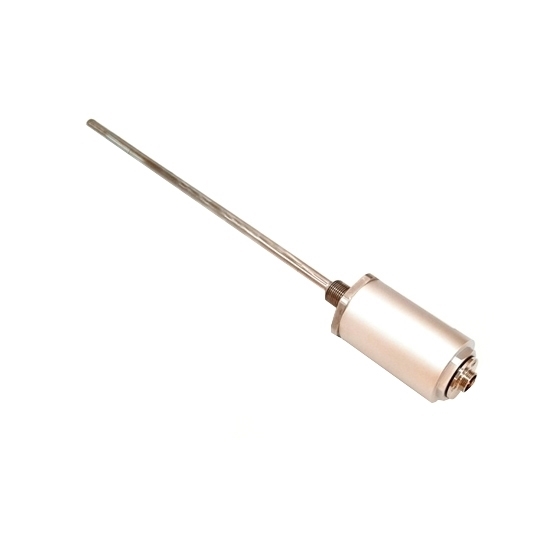

    300mm Linear Displacement Sensor for blow molding machine

    $929.86
    Magnetostrictive linear displacement sensor for blow molding machine, high precision, no temperature drift, anti-jamming performance, long life, high temperature resistance, corrosion resistance, high pressure resistant.
    SKU: ATO-MSD-0300
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-20 days

    Magnetostrictive displacement sensor with measuring range 300mm is used for the liquid level preset and feedback, such as the liquid level of blow molding machine hydro-cylinder. Magnetostrictive sensors also can be used in most industrial automation systems.

    Specification:

    Basics Model ATO-MSD-0300
    Measuring range 0~300 mm
    Shipping weight 2 kg
    Length 499.3 mm
    Diameter 51 mm
    Technical parameters Linearity ≤0.05%FS
    Repeatability ≤0.005%FS
    Resolution ratio ≤0.001%FS
    Hysteresis ≤0.001%FS
    Working Voltage 24VDC
    Working current Voltage output /digital output type≤16mA; Current output type≤35mA
    Protection type * Normal type, Explosion-proof type, Anti-corrosion type
    Output signal * 0~5V, 0~10V, 4~20mA, RS485, SSI gray code signal
    Measuring rod material 0Cr18Ni9 (304), or 316L stainless steel (customized)
    Measuring rod diameter Ф10mm
    Electronic bin material 1Cr18Ni9 (304)
    304 and PTFE casing outside (Anti-corrosion type, customized)
    1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, customized)
    Connecting screw thread * M18×1.5, M20×1.5, 3/4-16UNF
    Electrical connection * PVC shielded cable, circular connector (not applicable to explosion-proof type)
    Measuring rod pressure 40MPa, 70MPa (Explosion-proof type)
    Temperature T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
    Buffer area Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
    Vibration 100g, IEC standards 68-2-715g/ 10-2000Hz, IEC standards 68-2-6
    Protection Class IP67
    Explosion-proof level Explosion-proof type: EXd II BT5

    Installation diagram (unit: mm):
    1. PG7 connection
    magnetostrictive sensor with PG7 connection
    2. Explosion-proof connection
    magnetostrictive sensor with explosion-proof connection
    3. External installation
    magnetostrictive sensor external installation
    Tips: Parallelism and angle of magnetostrictive sensor
    When installing the magnetostrictive linear displacement sensor, the centering should be very good. However, the error of ±0.5mm is allowed for the parallelism while that of ±12° is allowed for the angle. In case of large error of parallelism and angle, the display values will fluctuate. Then, the parallelism and angle should be adjusted.
