300mm Magnetostrictive Displacement Sensor for packing machine

5 out of 5 based on 1 reviews | Write a review

$929.86

Aluminum alloy rail type magnetostrictive displacement transducer for measuring linear displacement, external installation, compact structure, easy to use, good security, suitable for packing machine and other CNC machinery worked in large vibration.

SKU: ATO-MSR-B0300

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

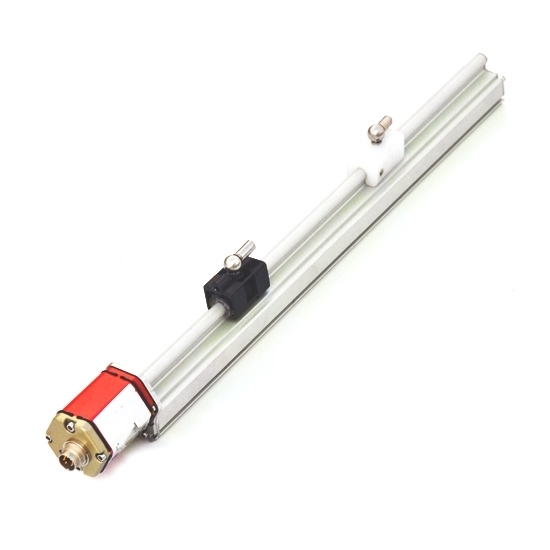

Magnetostrictive linear displacement sensor with measuring range 300mm has a aluminum alloy rail. Its electronic head parts are all built into aluminum alloy shell. Magnetostrictive measurement sensors are widely used in all kinds of CNC machinery that always working in large vibration.

Specification:

Basics	Model	ATO-MSR-B0300
	Measuring range	0~300 mm
	Shipping weight	2 kg
	Length	473.1 mm
Technical parameters	Linearity	≤0.03%FS
	Repeatability	≤0.003%FS
	Resolution ratio	≤0.001%FS
	Hysteresis	≤0.001%FS
	Temperature excursion	≤0.001%FS
	Operating voltage	24V DC
	Current drain	5～16mA
	Vibration coefficient	5g/10-2000Hz/IEC standards IEC standards 68-2-6
	Operating temperature	-40℃~85℃
	Load characteristic	Output voltage, load resistance≥3KΩ; Output current, load resistance≤1KΩ
	Output	0~5V; 0~10V; 0~20mA; 4~20mA
	Installation method	Fixed clip, with specific screw M5X20
	Magnet type	Slider magnet, levitating magnet
	Protection Class	IP65

Dimensional drawing (unit: mm):

Installation diagram:
magnetostrictive sensor rail type installation drawing
Tips: Protection class of magnetostrictive sensor
Protection class of magnetostrictive sensor is IP65. It indicates that dustproof class is completely preventing from invasion of dust, there is no influence if spraying water towards all directions of the shell. IP67 indicates protecting against dust suction (overall contact protection, protection against dust infiltration); protecting against transient soaking (anti-soaking). if there is water drop in the site environment, the user is advised to deal with waterproof protection. IP69 indicates that the sensor can bear the hot steam flushing test defined in EN 60529 and DIN 40050-9 and protection of water pressure of 100 bar(1450 psi) and temperature of 80℃ can be provided.
