    150mm Displacement Measurement Sensor for crusher

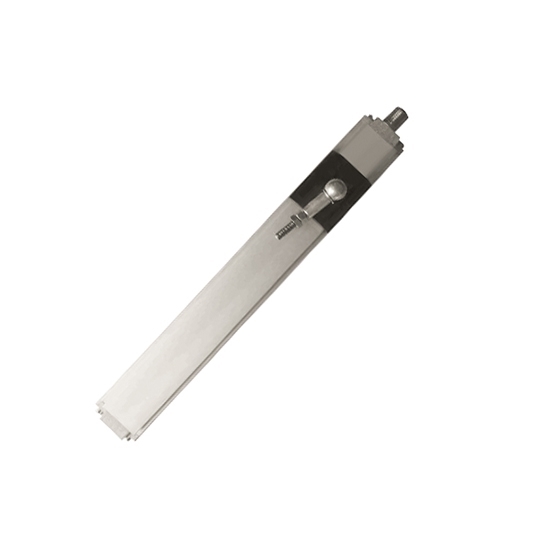

    Aluminum alloy rail type magnetostrictive displacement sensor for measuring linear displacement, external installation, compact structure, easy to use, good security, suitable for crusher and other CNC machinery worked in large vibration.
    SKU: ATO-MSR-A0150
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Non contact linear displacement sensor with measuring range 150mm has a aluminum alloy rail. Its electronic head parts are all built into aluminum alloy shell. Magnetostrictive displacement sensors have effective travel 50mm~35000mm, can bewidely used in all kinds of CNC machinery that always working in large vibration.


    Basics Model ATO-MSR-A0150
    Measuring range 0~150 mm
    Shipping weight 1.3 kg
    Length 320.8 mm
    Technical parameters Output method Analog output SSI output
    Output signal 0~20mA,4~20mA; 0~10V,-10~+10V 24,25,26 bits binary digital signal / gray code signal
    Resolution ratio 16 bits A/D 2/ 5/ 10/ 20/ 50/100μm
    Linearity <±0.01%F.S. (minimum±50μm) <±0.01%F.S. (minimum±40μm)
    Repeat accuracy <±0.002%F.S. (minimum±2μm) <±0.002%F.S.( minimum±1)
    Response frequency Relate to measuring range
    Operating voltage 24VDC(-15/+20%)
    Vibration coefficient 5g/10-2000Hz/IEC standards IEC standards 68-2-6
    Current drain 5~16mA
    Operating temperature -40℃~+85℃
    Protection Class IP65
    Installation method Fixed clip, with specific screw M5X20
    Magnet type Slider magnet, levitating magnet

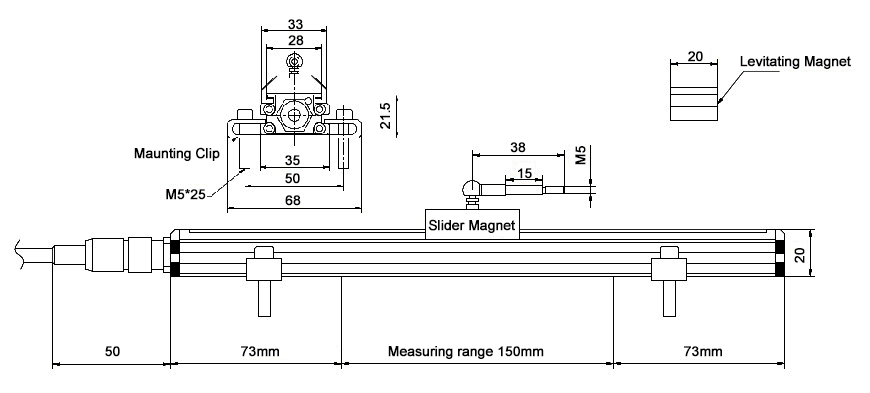

    Dimensional drawing (unit: mm):
    magnetostrictive sensor rail type dimensional drawing-a
    Installation diagram:
    magnetostrictive sensor rail type installation drawing

    Tips: Wiring of magnetostrictive sensor
    Three lines of the linear displacement sensor cannot connected in a wrong way. Meanwhile, the power and output lines can't be exchanged. If connected incorrectly, large linear error will be caused. However, it is very difficult to control it. Further, the control accuracy will be poor. In addition, situations including jumping phenomenon of the display will emerge easily. If the display data jumps regularly or there is no display data, the technician should check whether the insulation of connecting wire is broken, and judge whether the short circuit of earthing is caused for it contacts the shell of the machine regularly.
