    150mm Magnetostrictive Displacement Sensor for forging machine

    Magnetostrictive sensor for forging machine, high precision, no temperature drift, anti-jamming performance, long life, high temperature resistance, corrosion resistance, high pressure resistant.
    SKU: ATO-MSD-0150
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Magnetostrictive displacement sensor with measuring range 150mm is used for the liquid level preset and feedback, such as the liquid level of forging machine hydro-cylinder. Magnetostrictive sensors also can be used in most industrial automation systems.


    Basics Model ATO-MSD-0150
    Measuring range 0~150 mm
    Shipping weight 1.3 kg
    Length 349.3 mm
    Diameter 51 mm
    Technical parameters Linearity ≤0.03%FS
    Repeatability ≤0.003%FS
    Resolution ratio ≤0.001%FS
    Hysteresis ≤0.001%FS
    Working Voltage 24V /12V DC
    Working current Voltage /digital output type≤16mA; Current output type≤35mA
    Output method 0~5V / 0~10V / 4~20mA / 0-20mA RS485 binary digital signal / SSI gray code signal
    Product type Normal type; Explosion-proof type; Anti-corrosion type
    Measuring rod material 0Cr18Ni9 (304) or 316L stainless steel (secial custom-made)
    Measuring rod diameter Ф10mm
    Electronic bin material 1Cr18Ni9 (304)
    304 and PTFE casing outside (Anti-corrosion type, special custom-made)
    1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, special custom-made)
    Connecting screw thread M18×1.5; M20×1.5; 3/4-16UNF
    Type of lead wire PVC shielded cable; aviation plug (not applicable to explosion-proof type)
    Measuring rod pressure 40MPa, 70MPa (Explosion-proof type)
    Temperature T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
    Buffer area Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
    Vibration 100g, IEC standards 68-2-715g /10-2000Hz IEC standards 68-2-6
    Protection Class IP67
    Explosion-proof level Explosion-proof type: EXd II BT5

    Installation diagram (unit: mm):

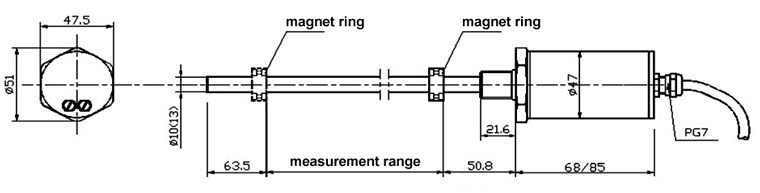

    1. PG7 connection
    magnetostrictive sensor with PG7 connection
    2. Explosion-proof connection
    magnetostrictive sensor with explosion-proof connection
    3. External installation
    magnetostrictive sensor external installation

    Tips: Frequency modulation interference and electrostatic interference of magnetostrictive sensor
    In case of frequency modulation interference and electrostatic interference, the display of the magnetostrictive displacement sensor may fluctuate. Therefore, the trunking of signal line of the magnetostrictive sensor and strong circuit of the equipment should be separated. Magnetostrictive sensor should be mandatorily grounded. It is necessary to use the shielded cable for the signal line. Besides, one section of electricity box shall be grounded with the shielded cable. In case of high-frequency interference, the voltage measurement will be usually normally if the multimeter is used. However, the display figure will bounce ceaselessly. However, in case of electrostatic interference, the situation that emerges will also be the same as that caused by the high-frequency interference. Well, to prove whether it is electrostatic interference or not, it is just necessary to connect certain metal on the machine with the cap screw of magnetostrictive sensor by using a section of power line. Once it is connected, electrostatic interference will be soon eliminated. However, to eliminate high-frequency interference, the above method cannot be used. Then, high-frequency interference source can be tentatively ceased to check whether the display result will be better or not so that the problem about whether it is high-frequency interference can be judged.
