    50mm Magnetostrictive Displacement Measurement Sensor

    5 out of 5 based on 1 reviews | Write a review
    Aluminum alloy rail type magnetostrictive displacement sensor for measuring linear displacement, external installation, compact structure, easy to use, good security, suitable for CNC machinery worked in large vibration.
    SKU: ATO-MSR-A0050
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

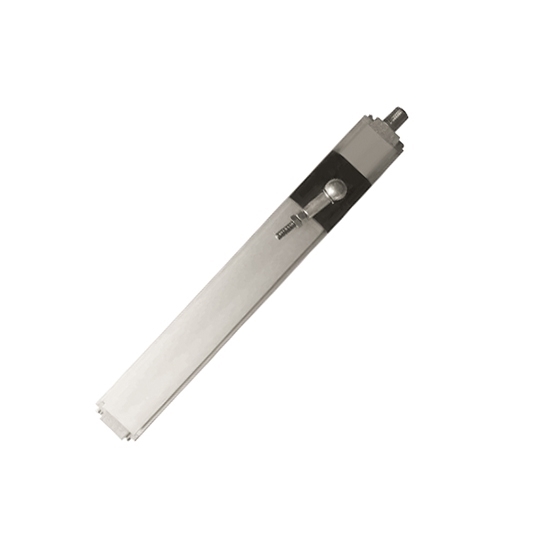

    Magnetostrictive linear displacement sensor with measuring range 50mm has a aluminum alloy rail. Its electronic head parts are all built into aluminum alloy shell. Magnetostrictive displacement sensors are widely used in all kinds of CNC machinery that always working in large vibration.


    Basics Model ATO-MSR-A0050
    Measuring range 0~50 mm
    Shipping weight 1 kg
    Length 220.8 mm
    Technical parameters Output method Analog output SSI output
    Output signal 0~20mA,4~20mA; 0~10V,-10~+10V 24,25,26 bits binary digital signal / gray code signal
    Resolution ratio 16 bits A/D 2/ 5/ 10/ 20/ 50/100μm
    Linearity <±0.01%F.S. (minimum±50μm) <±0.01%F.S. (minimum±40μm)
    Repeat accuracy <±0.002%F.S. (minimum±2μm) <±0.002%F.S.( minimum±1)
    Response frequency Relate to measuring range
    Operating voltage 24VDC(-15/+20%)
    Vibration coefficient 5g/10-2000Hz/IEC standards IEC standards 68-2-6
    Current drain 5~16mA
    Operating temperature -40℃~+85℃
    Protection Class IP65
    Installation method Fixed clip, with specific screw M5X20
    Magnet type Slider magnet, levitating magnet

    Dimensional drawing (unit: mm):
    Magnetostrictive sensor rail type dimensional drawing a
    Installation diagram:
    magnetostrictive sensor rail type installation drawing
    Tips: What is magnetostrictive displacement sensor?
    Magnetostrictive displacement sensor indicates a kind of displacement detecting device developed based on ferromagnetic material magnetostrictive effect. With special advantages such as high reliability, high resolution, non-contact measurement and oil & stain resistance, etc., it could be used for continuously, precisely and real-time detecting the displacement (position) and velocity of various moving parts under abominably industrial environment. As an important component to realize precise operation and control, it can substantially enhance the precision and efficiency of the whole system. It is applicable for detecting the stroke or position of mechanical device with rectilinear motion. Precision servo feedback control of hydraulic system is one of its most typical applications.
