    80mm Non Contact Displacement Measurement Sensor

    5 out of 5 based on 1 reviews | Write a review
    Aluminum alloy rail type magnetostrictive sensor for measuring linear displacement, external installation, compact structure, easy to use, good security, suitable for CNC machinery worked in large vibration.
    SKU: ATO-MSR-A0080
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

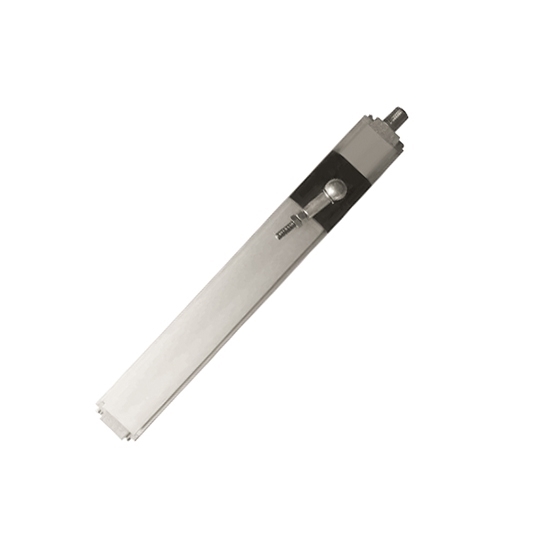

    Non contact linear displacement sensor with measuring range 80mm has a aluminum alloy rail. Its electronic head parts are all built into aluminum alloy shell. Magnetostrictive displacement sensors are widely used in all kinds of CNC machinery that always working in large vibration.


    Basics Model ATO-MSR-A0080
    Measuring range 0~80 mm
    Shipping weight 1 kg
    Length 250.8 mm
    Technical parameters Output method Analog output SSI output
    Output signal 0~20mA,4~20mA; 0~10V,-10~+10V 24,25,26 bits binary digital signal / gray code signal
    Resolution ratio 16 bits A/D 2/ 5/ 10/ 20/ 50/100μm
    Linearity <±0.01%F.S. (minimum±50μm) <±0.01%F.S. (minimum±40μm)
    Repeat accuracy <±0.002%F.S. (minimum±2μm) <±0.002%F.S.( minimum±1)
    Response frequency Relate to measuring range
    Operating voltage 24VDC(-15/+20%)
    Vibration coefficient 5g/10-2000Hz/IEC standards IEC standards 68-2-6
    Current drain 5~16mA
    Operating temperature -40℃~+85℃
    Protection Class IP65
    Installation method Fixed clip, with specific screw M5X20
    Magnet type Slider magnet, levitating magnet

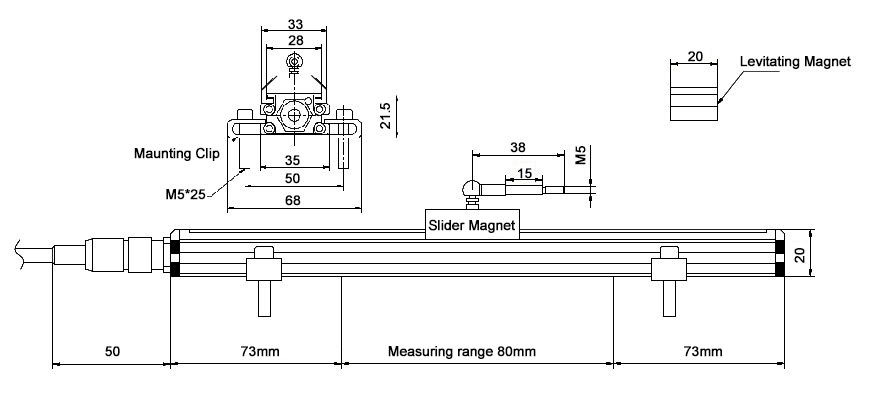

    Dimensional drawing (unit: mm):
    magnetostrictive sensor rail type dimensional drawing-a
    Installation diagram:
    magnetostrictive sensor rail type installation drawing

    Tips: Why magnetostrictive sensor is the non contact measurement sensor?
    The magnetostrictive displacement sensor adopts working principle of non-contact magnetic induction measurement. So, the problem about mechanical wear will not occur within the full service life of the product. In the meantime, such measuring mode can be favorable for effectively eliminating the measuring error caused by the vibration and enhancing the reliability of the sensor and extending its service life.
