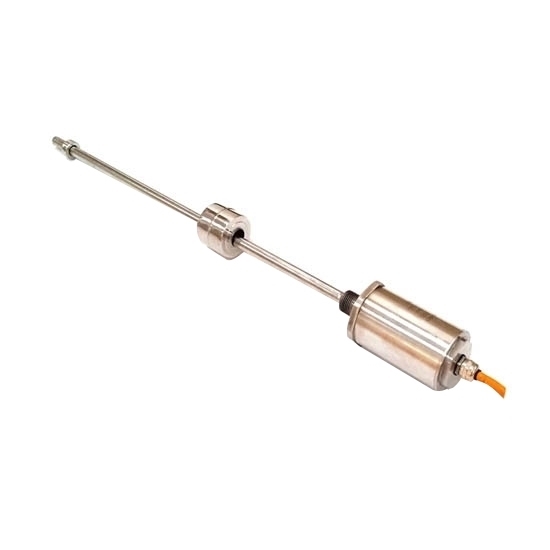

    50mm Magnetostrictive Fuel Level Sensor for oil tank

    5 out of 5 based on 1 reviews | Write a review
    Non contact fuel level sensor for oil tank, high precision, no temperature drift, anti-jamming performance, long life, high temperature resistance, corrosion resistance, high pressure resistant.
    SKU: ATO-MSL-0050
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Magnetostrictive level sensor with measuring range 50mm is used for the liquid level preset and feedback, such as the liquid level of oil tank. Magnetostrictive sensors also can be used in most industrial automation systems.


    Basics Model ATO-MSL-0050
    Measuring range 0~50 mm
    Shipping weight 1 kg
    Length 249.3 mm
    Diameter 50 mm
    Technical parameters Linearity ≤0.03%FS
    Repeatability ≤0.003%FS
    Resolution ratio ≤0.001%FS
    Hysteresis ≤0.001%FS
    Working Voltage 24V /12V DC
    Working current Voltage /digital output type≤16mA; Current output type≤35mA
    Output method 0~5V / 0~10V / 4~20mA / 0-20mA RS485 binary digital signal / SSI gray code signal
    Product type Normal type; Explosion-proof type; Anti-corrosion type
    Measuring rod material 0Cr18Ni9 (304) or 316L stainless steel (secial custom-made)
    Measuring rod diameter Ф10mm
    Electronic bin material 1Cr18Ni9 (304)
    304 and PTFE casing outside (Anti-corrosion type, special custom-made)
    1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, special custom-made)
    Connecting screw thread M18×1.5; M20×1.5; 3/4-16UNF
    Type of lead wire PVC shielded cable; aviation plug (not applicable to explosion-proof type)
    Measuring rod pressure 40MPa, 70MPa (Explosion-proof type)
    Temperature T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
    Buffer area Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
    Vibration 100g, IEC standards 68-2-715g /10-2000Hz IEC standards 68-2-6
    Protection Class IP67
    Explosion-proof level Explosion-proof type: EXd II BT5

    Installation diagram (unit: mm):
    magnetostrictive level sensor PG7 connection
    Tips: What is the absolute position output and rated measuring range of magnetostrictive sensor
    The sensor position output is relative to an absolute (fixed) reference point. The sensor no need to reset necessarily after power restoration in case of power failure. Unlike general incremental sensors (e.g.: incremental encoder and grating scale), the system should be reset after outage to continue measurement.
    Rated measuring range indicates the detection area practically available for the sensor, and it is definitely marked on order number. The rated detection length is certainly shorter than the total length of the sensor due to the existence of measuring blind zone at head and terminal end.
