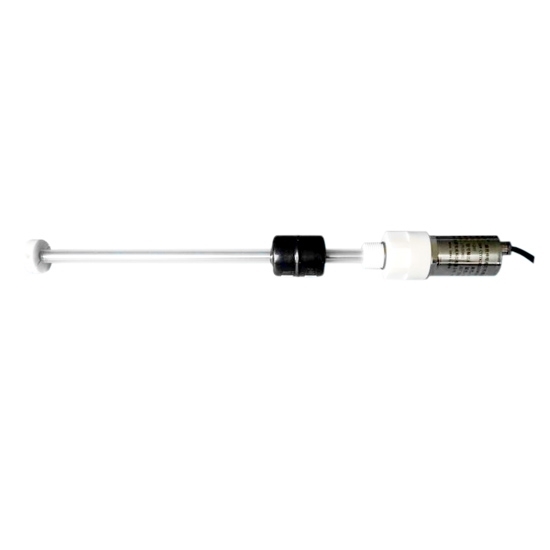

    100mm Magnetostrictive Level Sensor for servo cylinder

    $801.08
    Magnetostrictive liquid level transducer for servo cylinder, high precision, no temperature drift, anti-jamming performance, long life, high temperature resistance, corrosion resistance, high pressure resistant.
    SKU: ATO-MSL-0100
    Free shipping
    Delivery date: 6-12 days

    Magnetostrictive liquid level sensor with measuring range 100mm is used for liquid level preset and feedback, such as the liquid level of servo cylinder. Magnetostrictive sensors also can be used in most industrial automation systems.

    Specification:

    Basics Model ATO-MSL-0100
    Measuring range 0~100 mm
    Shipping weight 1 kg
    Length 299.3 mm
    Diameter 50 mm
    Technical parameters Linearity ≤0.03%FS
    Repeatability ≤0.003%FS
    Resolution ratio ≤0.001%FS
    Hysteresis ≤0.001%FS
    Working Voltage 24V /12V DC
    Working current Voltage /digital output type≤16mA; Current output type≤35mA
    Output method 0~5V / 0~10V / 4~20mA / 0-20mA RS485 binary digital signal / SSI gray code signal
    Product type Normal type; Explosion-proof type; Anti-corrosion type
    Measuring rod material 0Cr18Ni9 (304) or 316L stainless steel (secial custom-made)
    Measuring rod diameter Ф10mm
    Electronic bin material 1Cr18Ni9 (304)
    304 and PTFE casing outside (Anti-corrosion type, special custom-made)
    1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, special custom-made)
    Connecting screw thread M18×1.5; M20×1.5; 3/4-16UNF
    Type of lead wire PVC shielded cable; aviation plug (not applicable to explosion-proof type)
    Measuring rod pressure 40MPa, 70MPa (Explosion-proof type)
    Temperature T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
    Buffer area Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
    Vibration 100g, IEC standards 68-2-715g /10-2000Hz IEC standards 68-2-6
    Protection Level IP67
    Explosion-proof level Explosion-proof type: EXd II BT5

    Installation diagram:
    magnetostrictive level sensor PG7 connection

    Tips: How to select magnetostrictive sensor under different conditions?
    Humidity-sensitive elements magnetostriction is sensitive to both temperature and environmental. humidity change of 0.5% RH (error) will be caused along with the change in temperature by 0.1℃. If constant temperature cannot be made for the using occasion, it is not appropriate to proposed high humidity accuracy. There is also difference in temperature coefficient of some humidity elements under different conditions of relative humidity. In most cases, the accuracy of ± 5% RH is enough if there are accurate temperature control measures or the detected space not sealed. Regarding the local space, for which it’s required to control constant temperature and humidity precisely, or it is necessary to trace and record the occasion with changes in humidity anytime, it is necessary to use the magnetostrictive sensor with accuracy of ± 3%RH. As for temperature drift nonlinearity, it is necessary to add temperature compensation mode to the circuit. The accuracy of the full temperature range cannot be guaranteed if the sensor with SCM compensation or without temperature compensation is used. Then, the linearization of temperature drift curve will have direct influence on the compensation effect. Good effect cannot be obtained if nonlinear temperature drift is used for compensation. The real compensation effect will be obtained only by using hardware temperature follow-up compensation. The working temperature range of the sensor is also an important parameter. Most humidity-sensitive components cannot work normally at the temperature of above 40 ℃.
