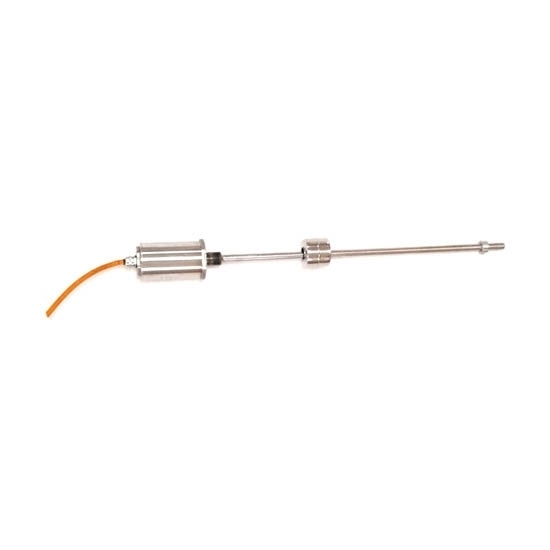

    80mm Non Contact Liquid Level Sensor for valve

    5 out of 5 based on 1 reviews | Write a review
    Magnetostrictive level sensor for valve, high precision, no temperature drift, anti-jamming performance, long life, high temperature resistance, corrosion resistance, high pressure resistant.
    SKU: ATO-MSL-0080
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Magnetostrictive level sensor with measuring range 80mm is used for adjusting valve. Non contact liquid level sensors also can be used in most industrial automation systems.


    Basics Model ATO-MSL-0080
    Measuring range 0~80 mm
    Shipping weight 1 kg
    Length 279.3 mm
    Diameter 50 mm
    Technical parameters Linearity ≤0.03%FS
    Repeatability ≤0.003%FS
    Resolution ratio ≤0.001%FS
    Hysteresis ≤0.001%FS
    Working Voltage 24V /12V DC
    Working current Voltage /digital output type≤16mA; Current output type≤35mA
    Output method 0~5V / 0~10V / 4~20mA / 0-20mA RS485 binary digital signal / SSI gray code signal
    Product type Normal type; Explosion-proof type; Anti-corrosion type
    Measuring rod material 0Cr18Ni9 (304) or 316L stainless steel (secial custom-made)
    Measuring rod diameter Ф10mm
    Electronic bin material 1Cr18Ni9 (304)
    304 and PTFE casing outside (Anti-corrosion type, special custom-made)
    1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, special custom-made)
    Connecting screw thread M18×1.5; M20×1.5; 3/4-16UNF
    Type of lead wire PVC shielded cable; aviation plug (not applicable to explosion-proof type)
    Measuring rod pressure 40MPa, 70MPa (Explosion-proof type)
    Temperature T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
    Buffer area Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
    Vibration 100g, IEC standards 68-2-715g /10-2000Hz IEC standards 68-2-6
    Protection Class IP67
    Explosion-proof level Explosion-proof type: EXd II BT5

    Installation diagram (unit: mm):
    magnetostrictive level sensor PG7 connection

    Tips: Power supply selection of magnetostrictive sensor
    Some magnetostrictive sensor has high requirements for power supply. Otherwise measurement accuracy will be influenced, or sensors interfere with each other mutually and even cannot work. When a DC voltage is applied to humidity-sensitive materials including metal oxide ceramic, high-molecular polymer and lithium chloride, their performance may be changed, or even failure may be caused. In consequence, such materials can't use DC voltage, or AC voltage contained DC voltage. So they must use AC power supply. When using magnetostrictive sensors, it is necessary to provide suitable supply power that meets precision requirements. When the sensor is used to transmit long-distance signal, the user should pay attention to the problem about signal attenuation. When the transmission distance exceeds over 200m, it is advised to use magnetostrictive sensor with frequency output signal.
