    50mm Magnetostrictive Displacement Sensor for hydraulic servo cylinder

    5 out of 5 based on 1 reviews | Write a review
    Non contact displacement sensor for hydraulic servo cylinder, high precision, no temperature drift, anti-jamming performance, long life, high temperature resistance, corrosion resistance, high pressure resistant.
    SKU: ATO-MSD-0050
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

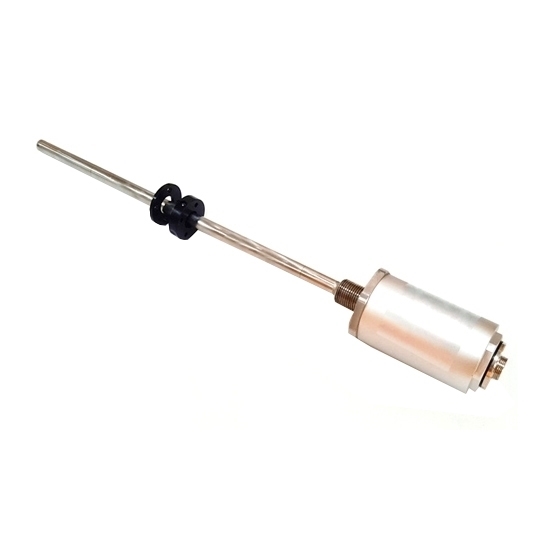

    Magnetostrictive linear displacement sensor with measuring range 50mm is used for the piston position preset and feedback, such as the piston position of hydraulic servo cylinder. Magnetostrictive sensors also can be used in most industrial automation systems.


    Basics Model ATO-MSD-0050
    Measuring range 0~50 mm
    Shipping weight 1 kg
    Length 249.3 mm
    Diameter 51 mm
    Technical parameters Linearity ≤0.03%FS
    Repeatability ≤0.003%FS
    Resolution ratio ≤0.001%FS
    Hysteresis ≤0.001%FS
    Working Voltage 24V /12V DC
    Working current Voltage /digital output type≤16mA; Current output type≤35mA
    Output method 0~5V / 0~10V / 4~20mA / 0-20mA RS485 binary digital signal / SSI gray code signal
    Product type Normal type; Explosion-proof type; Anti-corrosion type
    Measuring rod material 0Cr18Ni9 (304) or 316L stainless steel (secial custom-made)
    Measuring rod diameter Ф10mm
    Electronic bin material 1Cr18Ni9 (304)
    304 and PTFE casing outside (Anti-corrosion type, special custom-made)
    1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, special custom-made)
    Connecting screw thread M18×1.5; M20×1.5; 3/4-16UNF
    Type of lead wire PVC shielded cable; aviation plug (not applicable to explosion-proof type)
    Measuring rod pressure 40MPa, 70MPa (Explosion-proof type)
    Temperature T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
    Buffer area Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
    Vibration 100g, IEC standards 68-2-715g /10-2000Hz IEC standards 68-2-6
    Protection Class IP67
    Explosion-proof level Explosion-proof type: EXd II BT5

    Installation diagram (unit: mm):
    1. PG7 connection
    magnetostrictive sensor with PG7 connection
    2. Explosion-proof connection
    magnetostrictive sensor with explosion-proof connection
    3. External installation
    magnetostrictive sensor external installation
    Tips: What is the updating time, load impedance and drifting of magnetostrictive sensor?
    Updating time: Time interval between the two times of sensor measurement. The larger the measuring range of sensor the longer the time for updating.
    Load impedance: The impedance measured at the magnetostrictive sensor output.
    Drift: After working environment changed, the measurement amount is invariant, while the measured output value is changed. The most commonly change is output changed with temperature, abbreviated as temperature drift.
