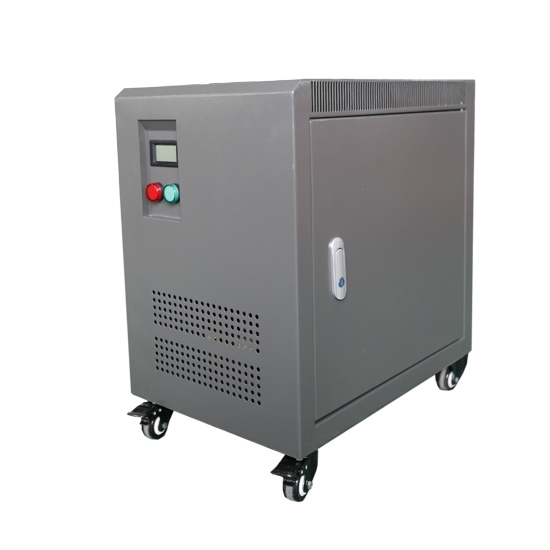

15kVA isolation transformer is dry type air self cooling one, Which is available in the circuit of AC 50Hz/60Hz and step up 3 phase voltage 208V to 415V, also step down 415V to 208V vertion for selection, long life span and high efficiency.
15 kVA Isolation Transformer Specifications
|Weight of Aluminium Wire Transformer
||Open type: 100kg
Protected type: 130kg
|Weight of Copper Wire Transformer
||Open type: 105kg
Protected type: 135kg
||415V (Optional: 120V/ 190V/ 208V/ 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 480V)
||208V (Optional: 120V/ 190V/ 208V/ 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 480V)
||Three phase to three phase
||50Hz / 60 Hz
||Aluminium/Copper wire (Optional)
||3000V AC/1 min
||<35-65dB (1 meter)
||Dry type air cooling
||Allow more than 1.2 times rated load to work for up to 4 hours
|Enclosure Protection Grade
||IP24 or IP54 (Optional)
||≤90%RH, without condensation
||<1000m, non corrosive gas and conductive dust
Transformer can only convert voltage and CANNOT convert frequency.
Transformer CANNOT convert single phase voltage to 3 phase voltage.
Input/output voltage, power rating and whether with shell of all transformers, can be customized according to clients' requirements.
3 Phase Isolation Transformer Schematic Diagram
3 Phase Isolation Transformer Details
15 kVA Isolation Transformer Installation Dimension
|Aluminium Wire Transformer Size
||Copper Wire Transformer Size
|Open type: a*b*c=380*280*380mm
||Open type: a*b*c=380*260*380mm
|Mouting size: d*e=260*180mm
||Mouting size: d*e=260*160mm
|Protected type: A*B*C=380*530*560mm
||Protected type: A*B*C=380*530*560mm
Tips: ATO three phase isolation transformer working principle
Three phase isolation Transformer mainly applies electromagnetic induction principle to work, the working principle details are as follows: When the primary side of the isolation transformer is applied with the alternating voltage U1 and the current flowing through the primary winding is I1, then the current will generate alternating magnetic flux in the iron core to generate electromagnetic connections between the primary winding and the secondary winding.
According to the electromagnetic induction principle, electromotive force will be induced when the alternating magnetic flux goes through these two windings. The magnitude of electromotive force is proportional to the winding turns and the maximum main flux, the voltage of more winding turns is high and the voltage of less winding turns is low. When the secondary side of the transformer opens circuit, that is to say when the transformer is no-load, the primary and secondary end voltage is proportional to the number of the primary and secondary winding turns, that is U1/U2 = N1/N2, but the primary and secondary frequency stays the same to realize the change of voltage.
