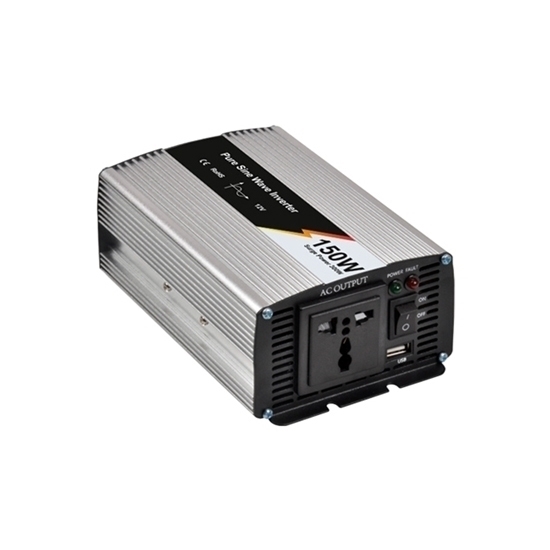

150 Watt Pure Sine Wave Power Inverter, 24V DC to 220V AC

150W pure sine wave power inverter provides clean and stable AC power, capable of running sensitive household devices like refrigerators and small air conditioners. Built with an aluminum shell for efficient cooling and multi-protection features, 150 Watt power inverter offers both 12V/24V input options and supports customization with or without a digital display.

Note: 150W pure sine wave inverter can't power a small refrigerator.

Specification

Features

• Outputs pure sine wave with less than 3% THD, delivering better or equal power quality compared to utility power.
• Two LED indicators show working or protected status, with automatic restart after protection.
• Includes undervoltage, overvoltage, overload, and over-temperature protection, with alarm and auto-shutdown.Improve power inverter safety
• 150W power inverter features a universal AC output socket and an optional USB interface.
• Copper terminals for excellent conductivity, improving power inverter conversion efficiency.

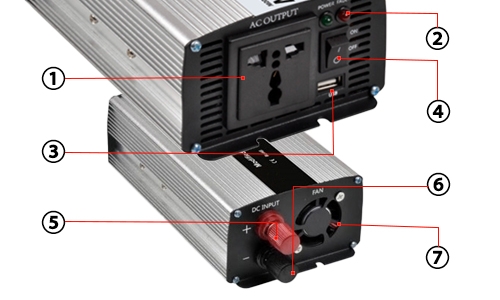

Details

1. AC Output: Receptacle according to user selection. 12V/24V DC to 110V/220V AC (±10%).
2. Signal Indicator: Green light indicates normal operation, red light indicates a fault.
3. USB Output (optional): DC output mode 1A/5V.
4. Power On/Off Switch: I is to start working, O is to stop working.
5. Positive Terminal: Connect with the positive terminal of the battery.
6. Negative Terminal: Connect with the negative terminal of the battery.
7. Intelligent Fan: Turns on/off intelligently based on the power inverter's temperature and load, saving energy with high efficiency.

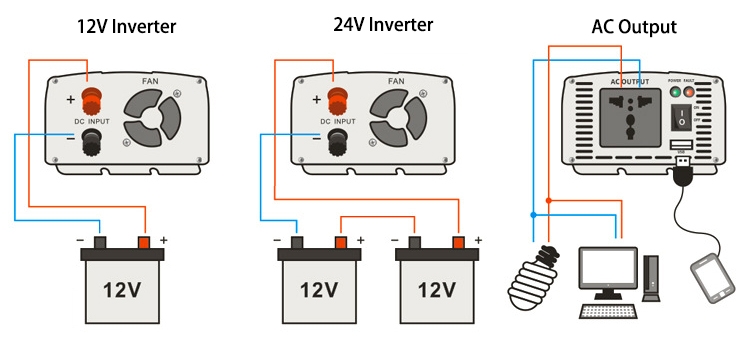

Connection Diagram

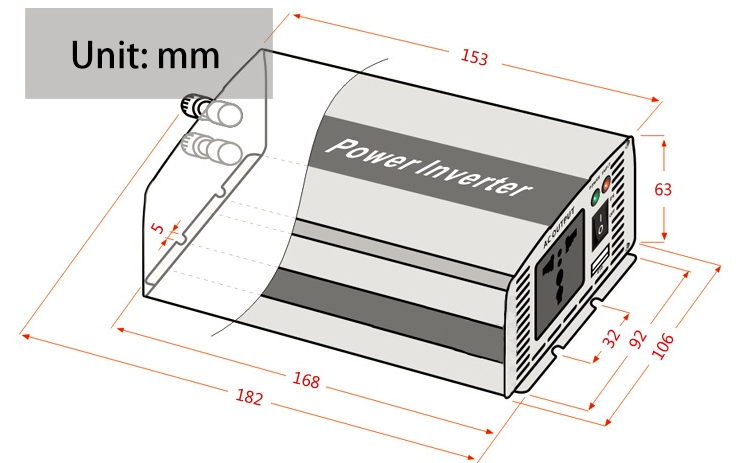

Dimension (Unit: mm)

Application

Tips for Using the 150 Watt Power Inverter

1. Use with the Car Engine Off.

You can use the inverter with the engine off, but it will drain the car battery. Estimated usage time formula: Time = Battery AH × 12V / Power (W) × 1.1. A typical car battery (65-70 AH) will last for a limited time, with 1.1 accounting for the inverter’s 90% efficiency.

2. Safety Tips

• Ensure proper ventilation and heat dissipation for the inverter.
• Keep it away from water and avoid placing heavy objects on it.
• Never insert foreign objects into the inverter.
• Always turn on the inverter and confirm it’s working before connecting any electrical appliances.
