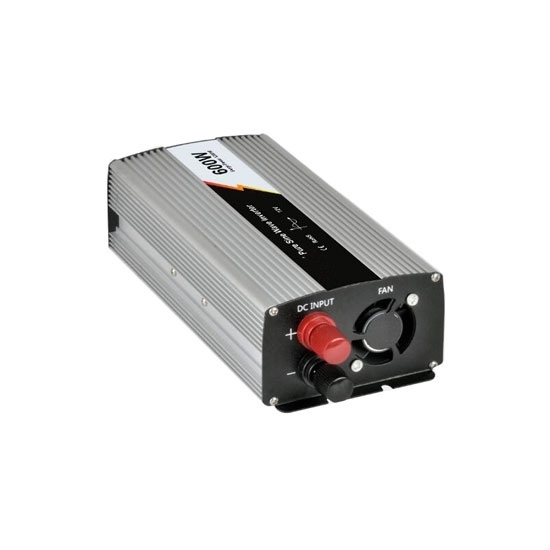

    600 Watt Pure Sine Wave Power Inverter, 12V DC to 110V AC

    5 out of 5 based on 1 reviews | Write a review
    Pure sine wave power inverter is available for optional DC input 12/24/48 Volts and AC output 110/120/220/230/240 Volts, 600 Watt continuous and 1200 Watt peak power, DC to AC power inverter great for car, home or anywhere clean AC power is needed, with full protection against overload, overheat, low voltage, over voltage and short circuit, built-in fuse and low-noise cooling fan.
    SKU: ATO-PI-600W
    Free Shipping Worldwide
    Delivery date: 6-20 days

    600W continuous and 1200W peak power inverter with pure sine wave output are on sale, converting DC to AC power, optional DC input 12V/24V/48V and AC output 110V/120V/220V/230V/240V. Low price, high efficiency and great performance, ideal for home & car.


    Model ATO-JYP-600W
    Output Power 600 Watt
    Peak Power 1200 Watt
    Input Voltage DC 12V DC 24V DC 48V DC 12V DC 24V DC 48V
    Input DC Voltage Range 10-15.5V 20-31V 40-61V 10-15.5V 20-31V 40-61V
    Output Voltage 100V AC or 110V AC or 120V AC ±5% 220V AC or 230V AC or 240V AC ±5%
    No-load Current (less-than) 0.6A 0.4A 0.3A 0.6A 0.4A 0.3A
    Output Frequency 50Hz±1Hz or 60Hz±1Hz
    Output Wave Pure sine wave
    Waveform Distortion THD<3% (linear load)
    USB Port 5V 1000mA
    Outlets Type Universal outlet
    Max. Working Efficiency 90%
    Starting Bipolar soft start
    Low Voltage Alarm 10.5V±0.5V 21V±0.5V 42V±1V 10.5V±0.5V 21V±0.5V 42V±1V
    Low Voltage Shutdown 10V±0.5V 20V±0.5V 40V±1V 10V±0.5V 20V±0.5V 40V±1V
    Low Voltage Recovery 13V±0.5V 24V±0.5V 48V±1V 13V±0.5V 24V±0.5V 48V±1V
    Over Voltage Shutdown 15.5V±0.5V 31V±0.5V 61V±1V 15.5V±0.5V 31V±0.5V 61V±1V
    Over Voltage Recovery 14.8±0.5V 29.5V±0.5V 59V±1V 14.8V±0.5V 29.5V±0.5V 59V±1V
    LED Light Green indicator light ON (inverter output, normal operation)
    Red indicator ON (under/over voltage, overload, overheat, short circuit)
    Protection Battery over/under voltage, overload, overheat, short circuit protection (positive and negative polarity reverse connect protection)
    Fuse Polarity reverse connect protection
    Circuit Topology Frequency link
    Cooling Way Built-in intelligent cooling fan
    Warranty 12 months
    Operating Temperature ﹣10℃~ +50℃
    Storage Temperature ﹣30℃~ +70℃
    Humidity ≤90%, non-condensing
    Dimensions (W*H*D) 250*106*63mm
    Package Size (W*H*D) 295*160*80mm
    Gross Weight 1.3kg

    Wiring Diagram

    12V 24V pure sine power inverter wiring
    Note: The wiring of 48V inverter and batteries is similar to the wiring of the 24V, and the batteries are connected in series.

    Protection Functions & Applications

    Pure sine wave power inverter protections

    Pure sine wave power inverter applications

    • Reverse Connect Protection
      Auto protection against input positive & negative polarities reverse connect - Blow a fuse
    • Short Circuit Protection
      Auto protection against short circuit - Red LED light ON
    • Low Voltage Protection
      Auto protection against under voltage of DC input - Alarm, Red LED light ON, and shut down the power
    • High Voltage Protection
      Auto protection against over voltage of DC input - Red LED light ON, and shut down the power
    • Overheating Protection
      Auto protection against high temperature - Alarm, Red LED light ON, and shut down the power
    • Overload Protection
      Auto protection against overload - Red LED light ON and shut down the power

    Tips: Car Inverters Applications

    Inverters are used to convert DC power (batteries) into AC power, and it consists of an inverter bridge, control logic, and a filter circuit. It is widely used in air conditioner, home theater, electric grinding wheel, electric tools, sewing machines, DVD, VCD, computers, TV, washing machines, range hoods, refrigerators, video recorders, massagers, fans, lighting and so on.

    Besides, when you drive to work or travel, the car inverter works which can be connected to the batteries or car cigarette lighter to energize the electrical appliances. The powers of car inverter output via the cigarette lighter have 20W, 40W, 80W, 120W, and 150W. For the larger power like 300W, 500W, 600W etc., the power inverters need to be connected to the battery via the cable. Thus, the home appliances can work as they are connected to the output side of the power inverter, such as cellphones, laptops, digital cameras, lights, electric razors, CD players, game consoles, PDAs, power tools, car refrigerators, and various travel, camping, medical emergency appliances.

    In this video, ATO show you the testing of 1000W pure sine wave power inverter, 24 DC to 220V AC. Furthermore, this power inverter is used to charge a fan and cell phone.

    Existing reviews of 600 Watt Pure Sine Wave Power Inverter, 12V DC to 110V AC
    Working time of the inverter
    How long does the power inverter work?
    From: Brandon | Date: 09/10/2018
    Was this review helpful? Yes No (0/0)
    ATO Responded
    It depends on the capacity of battery. The about working time can be calculated by the formula:
    Working time = Battery voltage * Battery capacity * 0.8 * 0.9 / Load power
    For example, a 12V 60AH battery drives a 100W load, and the working time is calculated:
    12 (V) * 60 (AH) * 0.8 * 0.9 / 100 (W) = 5.184 hours
    Note: 0.8 is the number of battery discharge (Normal); 0.9 is the efficiency of power inverter (Normal).
    Of course, the actual working time is also related to the conditions of the battery.
