    5000 Watt Pure Sine Wave Power Inverter, 24V DC to 220V AC

    5 out of 5 based on 3 reviews | Write a review
    Favorable price DC to AC pure sine wave power inverter outputs 5000 watt continuous and 10000 watt peak power, optional input DC 12/24/48 volts and output AC 110/120/220/23/240 volts, with universal AC outlets and USB port, multi protections for charging devices, LED indicator, built-in cooling fan, high conversion efficiency and reliability.
    SKU: ATO-PI-5000W
    Free Shipping Worldwide
    Delivery date: 6-20 days

    5000W/10000W pure sine wave power inverter provides full protections to power your device against overheating, under and over voltage charging, short circuiting, and overload with durable housing, fuse and cooling fan inside. With universal AC household outlet and USB port, the DC to AC power inverter is ideal for charging the devices for home use or car outside like road trip, vacation, camping and any places where the AC power is needed.

    Applications: This pure sine wave power inverter can deliver clean and stable AC power as the mains does, ideal for powering all kinds of electrical appliances including both sensitive electronics like air conditioner, refrigerator, induction cooker, power tools, etc. and resistive electronics such as cell phones, digital cameras, laptops, bulbs, TV, fans and so on.


    Model ATO-JYP-5000W
    Output Power 5000 Watt
    Peak Power 10000 Watt
    Input Voltage DC 12V DC 24V DC 48V DC 12V DC 24V DC 48V
    Input DC Voltage Range 10-15.5V 20-31V 40-61V 10-15.5V 20-31V 40-61V
    Output Voltage 100V AC or 110V AC or 120V AC ±5% 220V AC or 230V AC or 240V AC ±5%
    No-load Current (less-than) 1.5A 1A 0.8A 1.5A 1A 0.8A
    Output Frequency 50Hz±1Hz or 60Hz±1Hz
    Output Wave Pure sine wave
    Waveform Distortion THD<3% (linear load)
    USB Port 5V 1000mA
    Outlets Type Universal outlet
    Max. Working Efficiency 90.0%
    Starting Bipolar soft start
    Low Voltage Alarm 10.5V±0.5V 21V±0.5V 42V±1V 10.5V±0.5V 21V±0.5V 42V±1V
    Low Voltage Shutdown 10V±0.5V 20V±0.5V 40V±1V 10V±0.5V 20V±0.5V 40V±1V
    Low Voltage Recovery 13V±0.5V 24V±0.5V 48V±1V 13V±0.5V 24V±0.5V 48V±1V
    Over Voltage Shutdown 15.5V±0.5V 31V±0.5V 61V±1V 15.5V±0.5V 31V±0.5V 61V±1V
    Over Voltage Recovery 14.8V±0.5V 29.5V±0.5V 59V±1V 14.8V±0.5V 29.5V±0.5V 59V±1V
    LED Light Green indicator light ON (inverter output, normal operation)
    Red indicator ON (under/over voltage, overload, overheat, short circuit)
    Protection Battery over/under voltage, overload, overheating, short circuit protection (positive and negative polarity reverse connect protection)
    Fuse Polarity reverse connect protection
    Circuit Topology Frequency link
    Cooling Way Built-in intelligent cooling fan
    Warranty 12 Months
    Operating Temperature ﹣10℃~ +50℃
    Storage Temperature ﹣30℃~ +70℃
    Humidity ≤90%, non-condensing
    Dimensions (W*H*D) 450*210*156mm
    Package Size (W*H*D) 545*300*245mm
    Gross Weight 12.7kg

    Wiring Diagram

    12v 24v power inverter wiring
    Note: The wiring of 48V power inverter and batteries is similar to the connection of the 24V, and the batteries are connected in series.

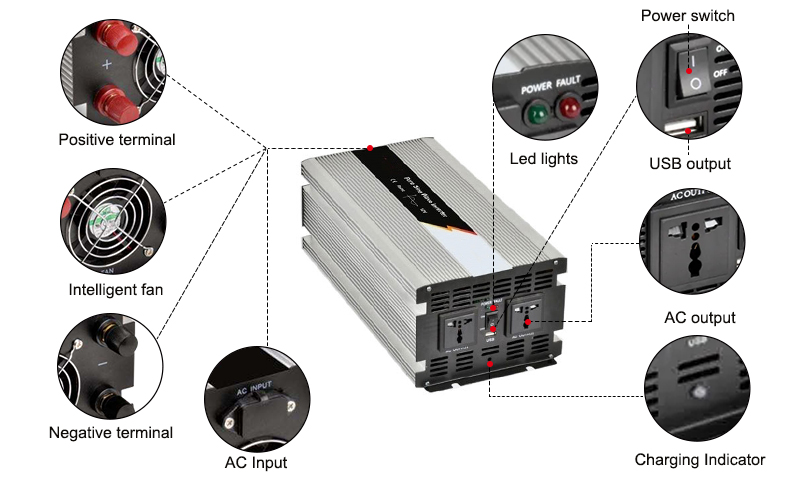

    Protection Functions

    pure sine wave power inverter protections

    Pure sine wave power inverter applications

    • Reverse Polarity Protection
      Auto protection when input positive and negative polarities are reversely connected – The fuse blown out.
    • Short Circuit Protection
      Automatic self-protection when short circuit occurs – Red LED light ON.
    • Low Voltage Protection
      Auto-protection when in low voltage – Alarm first; then the voltage continues to decrease, the red light is on and the inverter shuts down.
    • High Voltage Protection
      Auto-protection when in high voltage – Red LED light is on, alarm and the inverter shuts down automatically.
    • Over Temperature Protection
      Automatic self-protection when at high temperature – Alarm first; then the temperature continues to rise, the red light is on and the inverter shuts down.
    • Overload Protection
      Automatic self-protection when there is overload – Red light is on and the inverter shuts down.

    Tips: Is it possible to use a car inverter when turning off the car engine? What if you want to use the inverter for a long time without starting the engine?

    Yes. In the use of low-power appliances below 350 watts, normally the car battery can provide 30-60 minutes of power with the engine off. If only one laptop with 50-60 watts is charged, it will last longer time. For true pure sine wave inverters, they have an under voltage alarm and under voltage protection circuit. When the battery is used for a long time and the voltage drops to 10V, the under voltage protection circuit starts and the output voltage is cut off and alarms, to prevent that the battery’s voltage is too low to start the engine.

    Take another battery of the same voltage, and respectively connect its positive and negative electrodes to the positive and negative electrodes of the original vehicle battery with thick wires. In this way, the inverter can be used greatly longer.

    In this video, ATO show you the testing of 1000W pure sine wave power inverter, 24 DC to 220V AC. Furthermore, this power inverter is used to charge a fan and cell phone.

    Existing reviews of 5000 Watt Pure Sine Wave Power Inverter, 24V DC to 220V AC
    5000W pure sine wave inverter for 12v or 24v system
    For your 5000W Pure Sine Wave Inverter, would the unit work better with a 12v or 24v system?
    From: Gert | Date: 14/01/2019
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Works good for both, but technically better to get a 24V DC inverter if both are existing.
    Powerful inverter
    Purchased a 5000W inverter and the unit looks well-built and solid. There is no problem to run the electric saw, air compressor, and other power tool. Powerful inverter, and I’m very satisfied so far.
    From: Joseph | Date: 17/10/2019
    Was this review helpful? Yes No (0/0)
    This 5000w inverter provides 220v power to run everything we need.
    This 5000w inverter was easy to hook up my truck. It works as expected. It provides 220v power to run everything we need, microwave, fridge, cooker, heater, etc. This pure sine wave inverter, was used at least 16 hours each week for the past several months, no issues. All in all, a nice product.
    From: Luis | Date: 04/11/2019
    Was this review helpful? Yes No (0/0)
