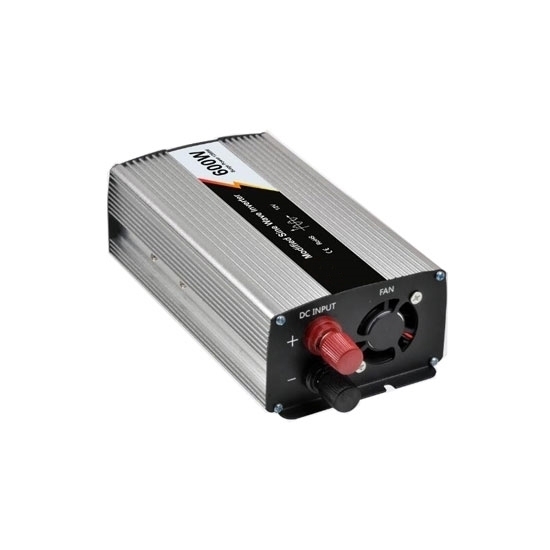

    600 Watt Car Power Inverter, 24V DC to 220V AC

    $97.33
    High efficiency modified sine wave power inverter with 600 Watt continuous and 1200 Watt peak power, converting your vehicle's battery power (DC 12/24V) to AC power (AC 110/120V/220V/240V), compact car inverter with safe charging design which provides protections against reverse connect, low voltage, high voltage, short circuit, overload and overheating, great for use on road, trips, camping, or other outdoor activities.
    SKU: ATO-PI-M600W
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Features

    • 600 Watt continuous and 1200 Watt peak power
    • AC household power outlet (Optional 110/120V/220V/240V AC) - power AC electronic devices in your vehicle
    • USB port – charge your cell phones, laptops, tablets and other USB compatible devices
    • Multiple safety protection - overvoltage, undervoltage, overload, over temperature, short circuit protection (reverse polarity connect)
    • Compact design, durable housing and high efficiency - ideal for use on road trips, vacations, work trips, camping and other outdoor activities where AC power is needed

    600W Car Power Inverter Specification

    Model ATO-JYM-600
    Rated power 600W
    Peak power 1200W
    Input voltage DC12V DC24V DC12V DC24V
    Output voltage 100VAC or 110VAC or 120VAC±5% 220VAC or 230VAC or 240VAC±5%
    Unload current less than 0.3A 0.1A 0.3A 0.1A
    Output frequency 50Hz±0.5Hz or 60Hz±0.5Hz
    Output waveform Modified Sine Wave
    USB port 5V 1A
    Max. efficiency 85%
    Input voltage range 10-15.5V 20-31V 10-15.5V 20-31V
    Low voltage alarm 10.5±0.5V 21±0.5V 10.5±0.5V 21±0.5V
    Low voltage protection 10±0.5V 20±0.5V 10±0.5V 20±0.5V
    Over voltage protection 15.5±0.5V 31±0.5V 15.5±0.5V 31±0.5V
    Low voltage recover 12.3±0.5V 24±0.5V 12.3±0.5V 24±0.5V
    Over voltage recover 14.8V±0.5V 29.5V±0.5V 14.8V±0.5V 29.5V±0.5V
    Protection function Low voltage Alarm at first; voltage continuously reduces, LED Red light on & shut down.
    Over voltage LED Red light on, shut down
    Over load LED Red light on, shut down
    Over temperature Alarm at first; temperature continuously rises, LED Red light on & shut down.
    Short circuit LED Red light on
    Input reverse polarity Fuse burn-out
    Working temperature -10℃ ~ +50℃
    Storage temperature -30℃ ~ +70℃
    Dimension 221x106x63mm
    Net./gross weight 755g/1020g
    Warranty 1 year
    Cooling method Intelligent cooling fan

    12/24V DC to AC Power Inverter Wiring Diagram

    12V 24V DC to AC power inverter wiring

    Tips: Resistive load vs Inductive load

    1. Resistive load
    The resistive load means that, the load appears resistive when there is no phase difference compared to the power supply. In a nutshell, a purely resistive load that works only with resistive components is called a resistive load, such as mobile phones, computers, televisions, bulbs, electric fans, etc. Generally, the modified sine wave power inverter can be used for powering this kind of load.

    2. Inductive load
    The inductive load refers to high power electrical products made by the principle of electromagnetic induction, such as motors, compressors, relays, induction cookers, refrigerators, air conditioners, pumps, etc. The instantaneous power of such devices is far more than the rated power (about 3-7 times). The pure sine wave inverter can be used for such sensitive load.
