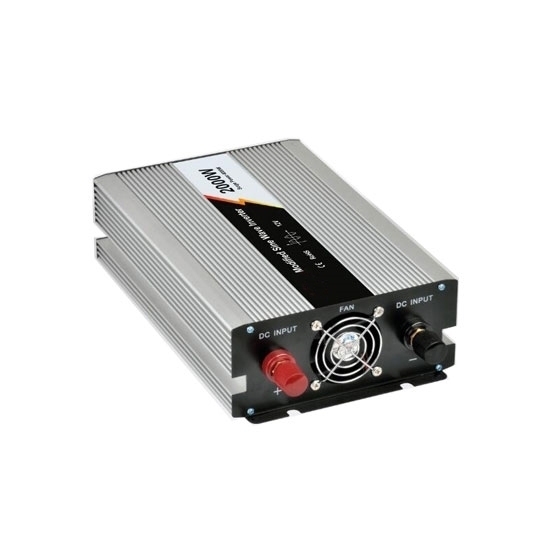

2000W Car Power Inverter Specification
12/24V DC to AC Power Inverter Wiring Diagram
Note: The connection of 48V power inverter with batteries is similar to the wiring of 24V inverter, and the batteries is connected in series.
Tips: Power inverter connection
1. Car inverter
The car inverter can be used after connecting to the cigarette lighter socket through the cigarette lighter. But it is only allowed to use electric appliances within 200W, otherwise the cigarette lighter will burn out due to the excessive power of the car inverter.
2. Household inverter
The power inverter is connected to the battery or battery back through the clamper. The red wire is connected to the battery positive pole, and the black wire is connected to the battery negative pole. The reverse polarity connection is not allowed, otherwise it damage the inverter and appliance. If the appliance to be powered is located far away from the battery, the inverter wiring is based on the principle: the wiring of the inverter and the battery is as short as possible, and the output line of the 110V or 220V AC is longer.
