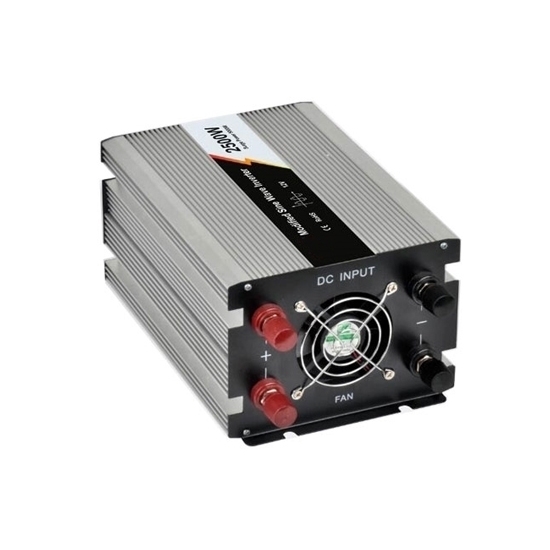

    2500 Watt Car Power Inverter, 24V DC to 230V AC

    $317.88
    High efficiency car power inverter, converting DC vehicle's power to AC household power with 2500 Watt continuous and 5000 Watt surge power, modified sine wave inverter selectable input DC 12V/24V/48V and output AC 110V/120V/230V/220V/240V, LED indicator, built-in cooling fan with low noise, full protections for charging your devices.
    SKU: ATO-PI-M2500W
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

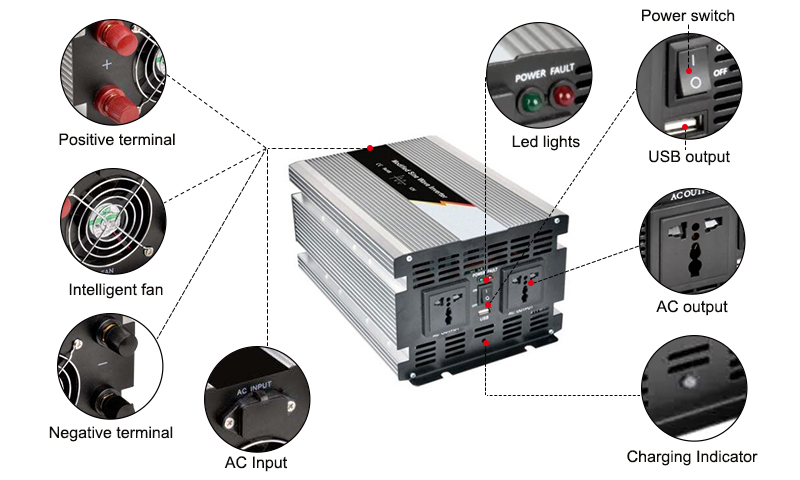

    Features

    • 2500 Watt continuous and 5000 Watt peak power for relaible replenishment
    • Two AC household power outlets - power a wide range of electronics in your cars, trucks, SUVs, RVs, or anywhere AC power is needed.
    • USB charging port – charge devices such as mobile phones, laptops, tablets and other USB-powered units
    • Multi security protections - protecting your devices against overvoltage, undervoltage, overload, over temperature, short circuit (reverse polarity connect)
    • Durable construction, easy installation and high efficiency - ideal for use on road trips, vacations, work trips, camping and other outdoor activities
    • Built-in temperature-controlled cooling fan with low noise

    2500W Car Power Inverter Specification

    Model ATO-JYM-2500
    Rated power 2500W
    Peak power 5000W
    Input voltage DC 12V DC 24V DC 48V DC 12V DC 24V DC 48V
    Output voltage 100VAC or 110VAC or 120VAC±5% 220VAC or 230VAC or 240VAC±5%
    Unload current less than 0.8A 0.5A 0.2A 0.8A 0.5A 0.2A
    Output frequency 50Hz±0.5Hz or 60Hz±0.5Hz
    Output waveform Modified Sine Wave
    USB port 5V 1A
    Max. efficiency 85%
    Input voltage range 10-15.5V 20-31V 40-61V 10-15.5V 20-31V 40-61V
    Low voltage alarm 10.5±0.5V 21±0.5V 42±1V 10.5±0.5V 21±0.5V 42±1V
    Low voltage protection 10±0.5V 20±0.5V 40±1V 10±0.5V 20±0.5V 40±1V
    Over voltage protection 15.5±0.5V 31±0.5V 61±1V 15.5±0.5V 31±0.5V 61±1V
    Low voltage recover 12.3±0.5V 24±0.5V 48±1V 12.3±0.5V 24±0.5V 48±1V
    Over voltage recover 14.8±0.5V 29.5±0.5V 59±1V 14.8±0.5V 29.5±0.5V 59±1V
    Protection function Low voltage - Alarm at first; voltage continuously reducing, LED Red light on & shut down.
    Over voltage - LED Red light on, shut down
    Over load - LED Red light on, shut down
    Over temperature - Alarm at first; temperature continuously rising, LED Red light on & shut down.
    Short circuit - LED Red light on
    Input reverse polarity - Fuse burn-out
    Working temperature -10℃ ~ +50℃
    Storage temperature -30℃ ~ +70℃
    Dimension 300x180x130mm
    Net./gross weight 4400g/5200g
    Warranty 1 year
    Cooling method Intelligent cooling fan

    12/24/48V DC to AC Power Inverter Wiring Diagram

    12V 24V power inverter wiringNote: The connection of 48V power inverter with batteries is similar to the wiring of 24V inverter, and the batteries is connected in series.

    Tips: How to choose an inverter?

    1. Material of the inverter housing.
    The material of the inverter casing has an important influence on the service life of the product, as well as the performances, especially the heat dissipation effect. When selecting a power inverter, the last choice is the metal shell such as aluminum.

    2. Power
    This is a very important aspect. Whether the inverter’s power can meet the needs of use, is the decisive factor for its function. When choosing a power inverter, carefully check the parameters of the inverter.

    3. Efficiency
    This is a very important indicator of the inverter. The higher the inverter efficiency, the longer the battery life and the smaller the inverter heat. A good power inverter should be able to work for a long time without being burnt when it is powering a load with 80% of nominal power.

    4. Protection functions
    It is also necessary to protect the inverter from input over voltage, output over load, and output short circuit.

    5. Load characteristics
    It should select the inverter according to the load power characteristics. Inductive load requires a pure sine wave inverter for use. For the resistive load, the general modified wave inverter can be used.
