    15000 rpm 12V 24V Small Brushless DC Motor

    5 out of 5 based on 1 reviews | Write a review
    Small size electric BLDC motor with rated speed of 11750 rpm and noload speed up to 15000 high rpm, 3 phase, 37W rated power. It can be custom designed to operate with 12 volt, 24 volt or higher voltage.
    SKU: ATO-BLDC-15000R
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Small Brushless DC motor Description

    15000 rpm high speed brushless dc motor with 12V/24V DC operating voltage, provides 23.4 mN.m torque and more reliable, ultra compact in size, high dynamic response, suitable for electronic equipment or household appliances.

    15000 rpm High Speed BLDC Motor Specifications

    Basics Model ATOWS3240-150
    Type Micro Brushless DC Motor
    Weight 108g
    Size D: 32mm, L: 40mm
    Usage Boat, Car, Electric Bicycle, Home Appliance, Industrial Equiment
    Technical Parameters Rated Power 37W
    Rated Voltage 12V DC 24V DC
    Rated Current 3.35A 1.68A
    Noload Current 0.41A 0.22A
    Rated Speed 11750 rpm
    Noload Speed 15000 rpm
    Rated Torque 23.4 mN.m
    Construction Permanent Magnet
    Bearing NSK Ball Bearing
    Efficiency 70%
    Motor Housing Stainless steel
    Insulation Class Class B
    Protect Feature Explosion-proof
    Wiring Diagram Pin 1 Red +5V
    Pin 2 Purple Hall A
    Pin 3 Green Hall B
    Pin 4 Grey Hall C
    Pin 5 Black GND
    Pin 6 Yellow Phase A
    Pin 7 Blue Phase B
    Pin 8 White Phase C
    Click to see the matched controller specs

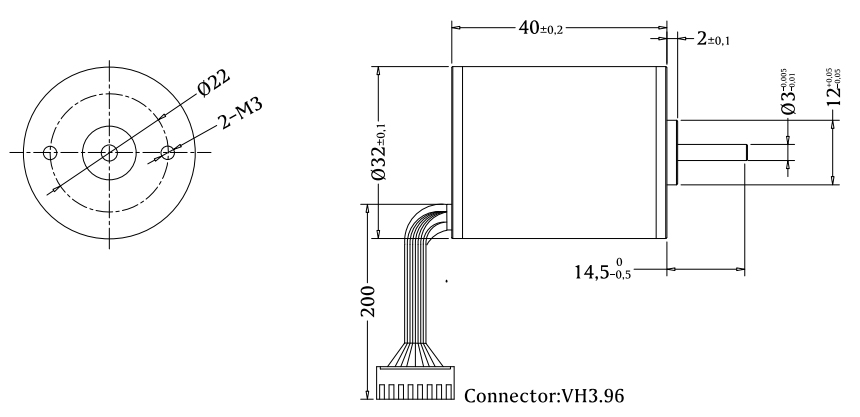

    12V/24V Small BLDC Motor Dimension

    15000 rpm 12V 24V bldc motor dimension


    15000rpm High Speed Brushless DC Motor Details

    Tips: Control Methods of DC Brushless Motor
    DC brushless motor has three control methods, namely position sensor control, sensor-less control and intelligent control.

    1. Position sensor control
    Position sensor control detects the rotor position and controls the commutation of stator winding by installing position sensors on the DC brushless motor. The position sensors applied include electromagnetic type (such as reluctance resolver), photoelectric type (such as light screen) and magnetic type (such as hall sensor). Among them, hall sensor is the most widely applied.
    2. Sensor-less control
    Sensor-less control doesn't detect the rotor position by directly installing position sensors on the DC brushless motor. Generally, it detects the rotor position through direct back EMF detection method, back EMF three harmonic method, current path monitoring method, open-circuit phase voltage detection method, phase inductance method and back EMF logic level integration comparison method.
    3. Intelligent control
    Intelligent control system has the functions of self-learning, self-adapting and self-organizing, it can solve the problem of model uncertainty, nonlinear control and other complicated problems. At present, many mature intelligent control methods have been applied to the control of Brushless DC motor, such as the Fuzzy-PID control combined by fuzzy control and PID control, compound control based on fuzzy control and neural network, fuzzy control of membership parameters optimized by genetic algorithm, mononeuron adaptive control.

    Existing reviews of 15000 rpm 12V 24V Small Brushless DC Motor
    A question on 15000 rpm 12V 24V Small Brushless DC Motor
    We are interested in your product 15000 rpm 12V 24V Small Brushless DC Motor. Is the motor RPM speed can be control from 50 rpm to 15000 rpm with 5 rpm step?
    From: Arnoldo Peter | Date: 12/04/2020
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, you can use PWM signal (amplitude: 5V; Frequency: 2 ~ 50kHz) to control the speed between 50 and 15000rpm.
