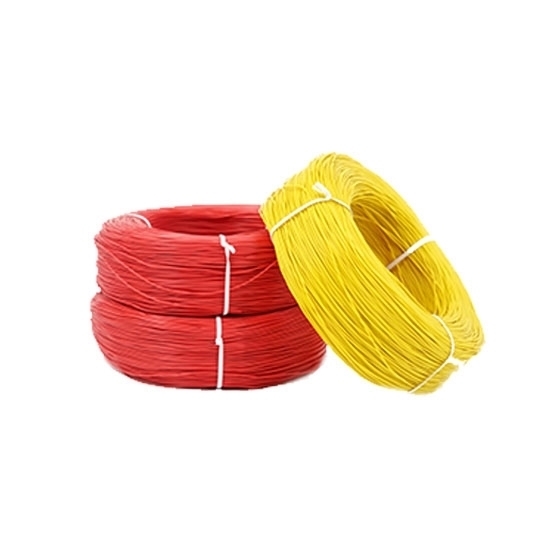

    18AWG Hook-Up Wire, UL1007, 300V, 2000 ft

    5 out of 5 based on 1 reviews | Write a review
    $283.59
    Buy 18AWG insulated hook-up wire online, 300V, 2000 ft. It meets UL 1007 standard for tinned cooper wire. Electric stranded cable with different color of PVC outer cover for insulation, widely used in wiring appliances and electronics.
    SKU: ATO-UL1007-18
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

    Specification

    Model ATO-UL1007-18
    UL Style 1007
    Size 18 AWG
    Rated Voltage 300V
    Color (Optional) White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
    Rated Temperature 80 ℃
    Conductor Tinned/ Bare Copper
    Conductor Type Stranded
    Conductor Size (±0.005) NO. 16/ 0.254mm
    Conductor Resistance 20℃ 23.20 Ω/km
    Conductor Diameter 1.17mm
    Insulation PVC
    Insulation Thickness Nom. 0.40mm
    Min. 0.33mm
    Overall Diameter Average 1.95mm
    Tolerance ±0.1mm
    Package 2000 ft/roll
    Weight 8kg

    Details

    Details of UL1007 18AWG Isulated Copper Wire

    Tips: How to use electrical hook up wire safely?

    There are a few things you should pay attention to when using electrical wires to ensure safety, so how to use electrical wires safely?

    • When the wires cross each other, the high voltage wires should be under the low voltage wires. If one of the wires is protected by a pipe or separated by a partition within 1m before and after the crossing point, the minimum permissible distance is 0.25m.
    • Wire and railway or road crossing should be through pipe protection, protection pipe should extend out of the track or road 2m.
    • The distance between the wire and the foundation of the building should be able to ensure that the wire is buried in the building outside the water. Wire into the building should be through pipe protection, protection pipe should be beyond the building water.
    • Directly buried in the ground between the wire and the grounding of the general grounding device should be 0.25~0.5m apart. The buried depth of the wire directly buried in the ground should not be less than 0.7m, and should be buried under the frozen soil layer.
    Existing reviews of 18AWG Hook-Up Wire, UL1007, 300V, 2000 ft
    Good quality wire
    This 18 gauge wire is easy to use and not overly stiff. For the price and quality, I am extremely pleased. I would definitely buy this again when I need more.
    From: Baines | Date: 22/09/2021
