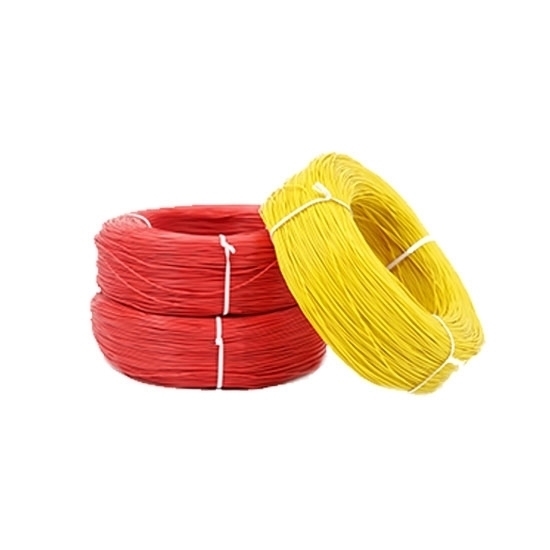

    20AWG Hook-Up Wire, UL1007, 300V, 2000 ft

    $209.79
    Electric stranded hook-up wire, 20AWG, 300V rated voltage, 2000 ft/ roll, meets UL 1007 standard for tinned copper wire, selectable different colors of insulated PVC outer cover.
    SKU: ATO-UL1007-20
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

    Specification

    Model ATO-UL1007-20
    UL Style 1007
    Size 20 AWG
    Rated Voltage 300V
    Color (Optional) White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
    Rated Temperature 80 ℃
    Conductor Tinned/ Bare Copper
    Conductor Type Stranded
    Conductor Size (±0.005) NO. 21/ 0.18mm
    Conductor Resistance 20℃ 36.70 Ω/km
    Conductor Diameter 0.95mm
    Insulation PVC
    Insulation Thickness Nom. 0.40mm
    Min. 0.33mm
    Overall Diameter Average 1.75mm
    Tolerance ±0.1mm
    Package 2000 ft/roll
    Weight 7kg

    Details

    Details of UL1007 20AWG Isulated Copper Wire

    Tips: Difference between cable and wire

    A cable is made of several or groups of wires that are insulated from each other, twisted around a central wire and covered with a high insulation layer. The processing starts from the conductor, and the cable products are wrapped with insulation, shielding, cable forming and protective layer. The more complex the product structure is, the more layers it is.

    A wire is a conductor of metal that carries an electric current. Wires come in several forms, such as stranded or foil braided. According to the insulation condition, there are two kinds of bare wire and insulated wire. The length of the flexible cylindrical conductor is larger than its cross section size.
