    22AWG Hook-Up Wire, UL1007, 300V, 2000 ft

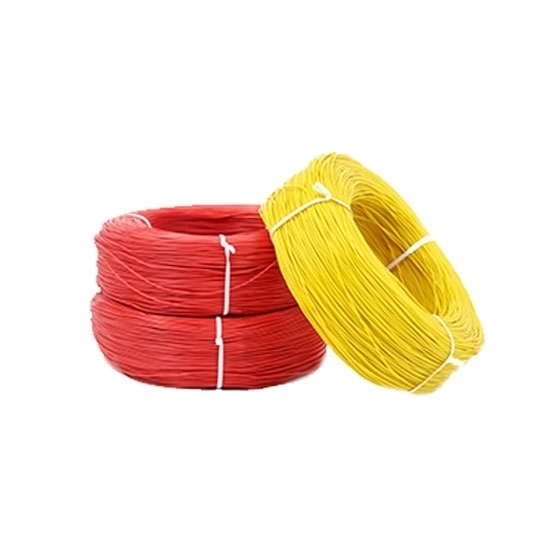

    Picture of 22AWG Hook-Up Wire, UL1007, 300V, 2000 ft
    Picture of 22AWG Hook-Up Wire, UL1007, 300V, 2000 ft

    22AWG Hook-Up Wire, UL1007, 300V, 2000 ft

    5 out of 5 based on 2 reviews | Write a review
    $165.79
    Buy 22AWG insulated hook-up wire at ATO, 300V, 2000 ft. It meets UL 1007 standard for tinned cooper wire. Electric stranded cable with different color of PVC outer cover for insulation, widely used in wiring appliances and electronics.
    *
    SKU: ATO-UL1007-22
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    ATO hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

    Specification

    Model ATO-UL1007-22
    UL Style 1007
    Size 22 AWG
    Rated Voltage 300V
    Color (Optional) White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
    Rated Temperature 80 ℃
    Conductor Tinned/ Bare Copper
    Conductor Type Stranded
    Conductor Size (±0.005） NO. 7/ 0.254mm
    Conductor Resistance 20℃ 59.40 Ω/km
    Conductor Diameter 0.76mm
    Insulation PVC
    Insulation Thickness Nom. 0.40mm
    Min. 0.33mm
    Overall Diameter Average 1.56mm
    Tolerance ±0.1mm
    Package 2000 ft/roll
    Weight 6kg

    Details

    Details of UL1007 22AWG Isulated Copper Wire

    Tips: What are the uses of UL1007 wires?

    UL1007 wires are used in automotive industry, mechanical equipment, computers, household appliances, electronic and electrical equipment internal wiring.

    Existing reviews of 22AWG Hook-Up Wire, UL1007, 300V, 2000 ft
    Good 22AWG hook up wires
    22AWG insulated hookup wires are not available everywhere. I'm so glad I was able to find such a good wire. Different colored PVC covers are used on insulated wires, which are easy to distinguish.
    From: Ziemba | Date: 30/05/2022
    Was this review helpful? Yes No (0/0)
    Thumbs up
    This wire kit is awesome! This wire is of high quality and is real silicone wire. I will be using this for wiring data wires to flight controllers for building drones. I'm really glad that I chose this kit over the others and the gauge of wire is exactly the size that I needed too!  I highly recommend this kit over the others!
    From: wjl | Date: 21/04/2022
    Was this review helpful? Yes No (0/0)
    Load more reviews...
    Write your review for 22AWG Hook-Up Wire, UL1007, 300V, 2000 ft
    • Only registered users can write reviews
    • Bad
    • Excellent
