    24AWG Hook-Up Wire, UL1061, 300V, 2000 ft

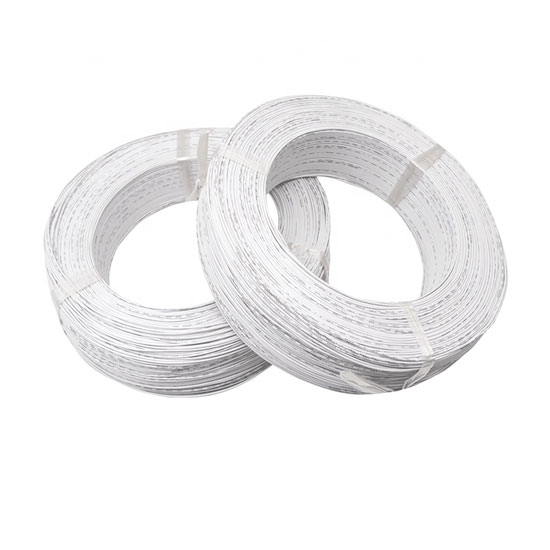

    Picture of 24AWG Hook-Up Wire, UL1061, 300V, 2000 ft
    Picture of 24AWG Hook-Up Wire, UL1061, 300V, 2000 ft

    24AWG Hook-Up Wire, UL1061, 300V, 2000 ft

    5 out of 5 based on 1 reviews | Write a review
    $88.59
    Low cost 24AWG stranded hook-up wire meets UL 1061 standard for tinned copper wire, 300V rated voltage, 2000 ft. /roll. Available in different colors of PVC outer cover for insulation. Electrical wire is commonly used in commercial wiring applications.
    *
    SKU: ATO-UL1061-24
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Our hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

    Specification

    Model ATO-UL1061-24
    UL Style 1061
    Size 22 AWG
    Rated Voltage 600V
    Color (Optional) White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
    Rated Temperature 80 ℃
    Conductor Tinned/ Bare Copper
    Conductor Type Stranded
    Conductor Size (±0.005） NO. 11/ 0.16mm
    Conductor Resistance 20℃ 94.20 Ω/km
    Conductor Diameter 0.61mm
    Insulation PVC
    Insulation Thickness Nom. 0.25mm
    Min. 0.18mm
    Overall Diameter Average 1.10mm
    Tolerance ±0.10mm
    Package 2000 ft/roll
    Weight 2kg

    Details

    Details of UL1061 24AWG Isulated Copper Wire

    Existing reviews of 24AWG Hook-Up Wire, UL1061, 300V, 2000 ft
    Soft and flexible.
    I really like this 24AWG electrical hook-up wire. It is exactly what I was looking for. The wire is very flexible and soft making it easy to route around things in my projects. Highly recommend.
    From: Henderson | Date: 28/06/2022
    Was this review helpful? Yes No (0/0)
