    28AWG Hook-Up Wire, UL1007, 300V, 2000 ft

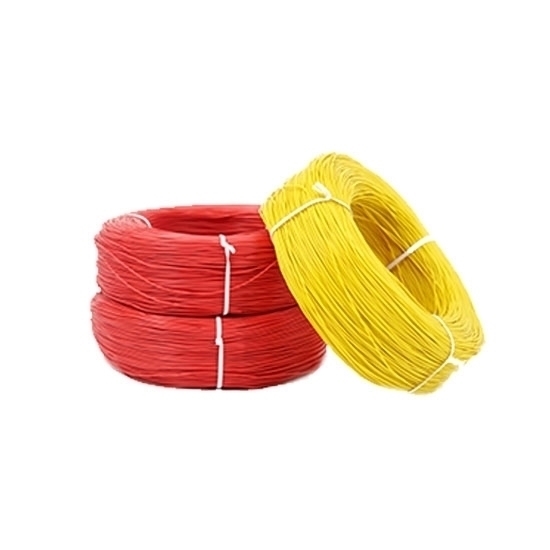

    Picture of 28AWG Hook-Up Wire, UL1007, 300V, 2000 ft
    Picture of 28AWG Hook-Up Wire, UL1007, 300V, 2000 ft

    28AWG Hook-Up Wire, UL1007, 300V, 2000 ft

    5 out of 5 based on 2 reviews | Write a review
    $69.59
    Favorable price 28AWG electrical insulated hook-up wire, 300V rated voltage, 2000 ft. /roll. It meets UL 1007 standard for tinned cooper wire and PVC outer cover for insulation. Different colors for your choices.
    *
    SKU: ATO-UL1007-28
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

    Specification

    Model ATO-UL1007-28
    UL Style 1007
    Size 28 AWG
    Rated Voltage 300V
    Color (Optional) White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
    Rated Temperature 80 ℃
    Conductor Tinned/ Bare Copper
    Conductor Type Stranded
    Conductor Size (±0.005） NO. 7/ 0.127mm
    Conductor Resistance 20℃ 239.00 Ω/km
    Conductor Diameter 0.38mm
    Insulation PVC
    Insulation Thickness Nom. 0.40mm
    Min. 0.33mm
    Overall Diameter Average 1.18mm
    Tolerance ±0.1mm
    Package 2000 ft/roll
    Weight 4kg

    Details

    Details of UL1007 28AWG Isulated Copper Wire

    Tips: Can UL1007 hook-up wire withstand -40℃？

    UL1007 electric hook up wire is PVC outer cover for insulation which protects tinned or bare copper conductor from oil, chemistry and solvents. The temperature of PVC material is 0℃ to 80℃, so that it cannot tolerate -40℃, unless it adopts PVC cold-resistant rubber. In addition, the cold-resistant rubber generally needs to be customized.

    Existing reviews of 28AWG Hook-Up Wire, UL1007, 300V, 2000 ft
    Fantastic value
    Description is accurate and 28AWG hook-up wire worked perfectly. Since it is solid wire, it's best used on internal circuitry or other applications where you aren't constantly handling it. Fantastic value for the money!
    From: Biaxy | Date: 01/06/2022
    Was this review helpful? Yes No (0/0)
    High quality UL wire
    My first time using 28AWG hook-up wires. I purchased these for clean wiring in tight spaces. The cords come with a colorful PVC cover. I am very happy with them.
    From: Borge | Date: 30/05/2022
    Was this review helpful? Yes No (0/0)
    Load more reviews...
    Write your review for 28AWG Hook-Up Wire, UL1007, 300V, 2000 ft
    • Only registered users can write reviews
    • Bad
    • Excellent
